| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Waterproof Lock Handle |
| Model No | A-1316-3-L |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Waterproof Lock Handle |
Model No |
A-1316-3-L |
Material |
Body: Cast Stainless Steel (SUS304), Handle: Zinc Alloy (ZDC) |
Weight |
370 g |

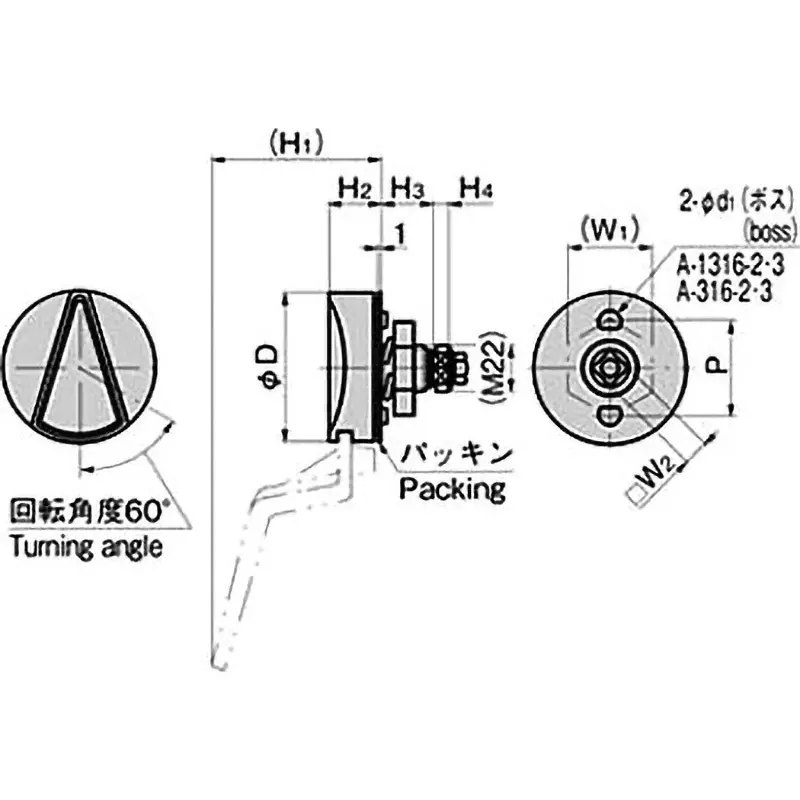

Dimensions P (mm) |
32 |
Surface Finish Type |
Body: Mirror Buffing, Handle: Satin Chrome Plating (MZCR) |
TAKIGEN Code |
908 |
Monotaro ID |
62801427 |
Included Components |
Large Nut And Screw Set |
Maximum Panel Thickness (mm) |
6.6 |
Dimensions H2 (mm) |
20.5 |
Dimension H3 (mm) |
21.5 |
Dimensions W2 (mm) |
8 |
Dimension D (Φmm) |
52 |
Dimensions H1 (mm) |
68 |
Dimension H4 (mm) |
3 |
Dimensions W1 (mm) |
41 |
