| Weight | 15 g |
| Model No | KC-217N-1600 |
| Material | Rolled Steel For General Structure (Ss) |
| Type of Product | Super Large Slide Rail |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Weight |
15 g |
Model No |
KC-217N-1600 |
Material |
Rolled Steel For General Structure (Ss) |
Type of Product |
Super Large Slide Rail |
Type |
1600x1545 mm (L1xL2) |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |

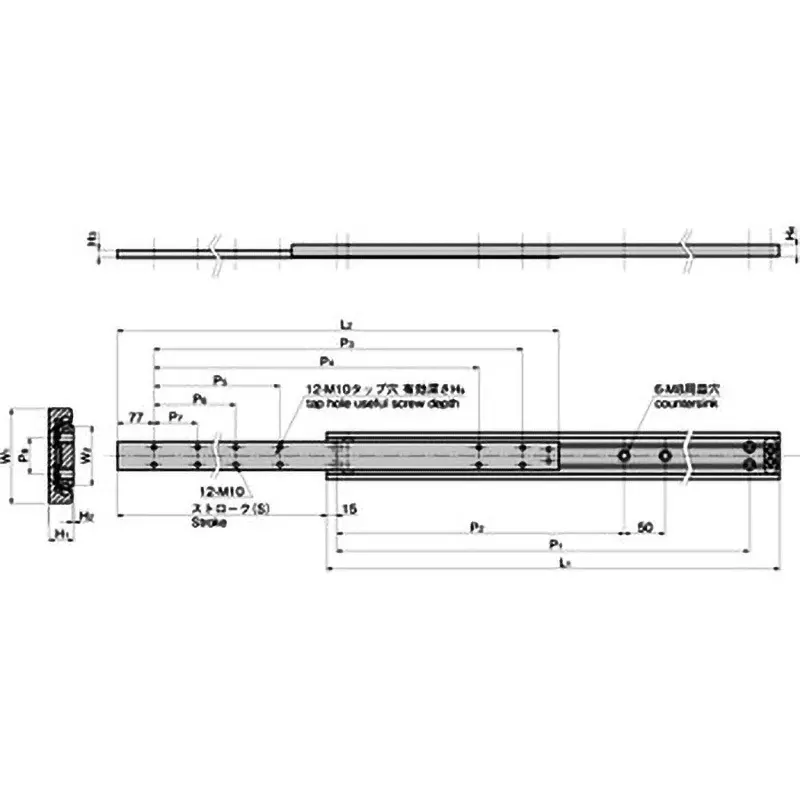

Dimension P2 (mm) |
760 |
Monotaro ID |
61127806 |
Dimensions s (mm) |
923 |
Dimensions l2 (mm) |
1545 |
Dimension P1 (mm) |
1535 |
Dimensions L1 (mm) |
1600 |
Allowable Loads |
2548N |
Dimension P3 (mm) |
1400 |
Dimension P5 (mm) |
750 |
Dimension P6 (mm) |
650 |
Dimension P4 (mm) |
1300 |
Dimension P7 (mm) |
100 |
Dimensions W1 (mm) |
78 |
Dimensions H1 (mm) |
21 |
Dimension H5 (mm) |
10 |
Dimension H3 (mm) |
12 |
Dimensions W2 (mm) |
48 |
Dimensions H2 (mm) |
2 |
Dimension H4 (mm) |
19 |
