| Type of Product | Wireless 3D Scanner |
| Series | Metro Y Pro |
| Dimension | 211 × 94 × 47 mm |

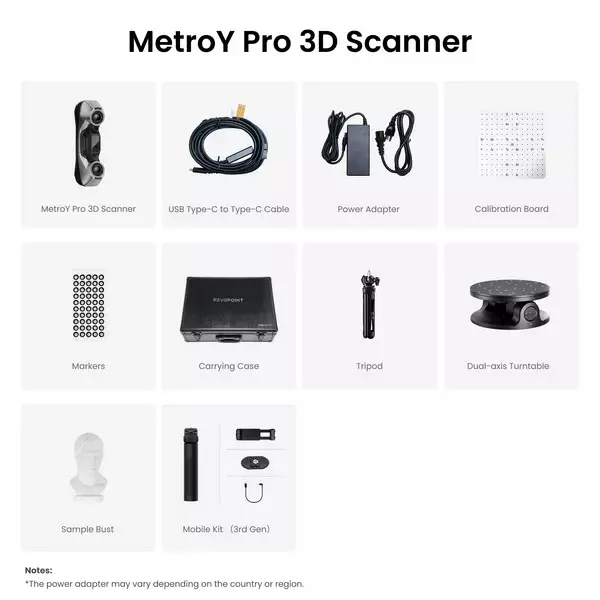

| Package Contains | MetroY Pro 3D Scanner, USB Type-C to Type-C Cable, Power Adapter, Calibration Board, Markers, Carrying Case, Tripod, Dual-axis Turntable, Sample Bust, Mobile Kit (3rd Gen) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Wireless 3D Scanner |
Series |
Metro Y Pro |
Dimension |
211 × 94 × 47 mm |
Package Contains |
MetroY Pro 3D Scanner, USB Type-C to Type-C Cable, Power Adapter, Calibration Board, Markers, Carrying Case, Tripod, Dual-axis Turntable, Sample Bust, Mobile Kit (3rd Gen) |
Compatible For |
Windows 10/11 (64-bit), macOS 11.0 or better |
Country of Origin |
China |
Connector Type |
USB Type-C to Type-C |
Name of Manufacturer/Packer/Importer |
Protomont Technologies LLP |
Scanning Speed |
Multi-line Laser Scan: 1,700,000 Points/s, Full-field Structured Light Scan: 7,000,000 Points/s |
Working Distance |
200 – 400 mm |
Scan Size |
Small to Medium |
Minimum Scan Volume |
10 × 10 × 10 mm |
Button |
4 |
Recommended |
PC Requirements - macOS: M2/M3 Pro/Max/Ultra; RAM ≥ 24 GB Windows: Intel i9 12th Gen or better; RAM ≥ 64 GB; GPU: NVIDIA RTX 4060 (8 GB) or better |
Light Source |
34 Blue Cross Laser Lines, 15 Blue Parallel Laser Lines, 1 Blue Single Laser Line, 62 Line Blue Full-field Structured Light |
Maximum Scan Volume |
1 × 1 × 1 m |
Single Capture Area at Furthest Distance |
332 × 276 mm at 400 mm |
Scanner Weight |
450 g |
RGB Camera Resolution |
2 Megapixels |
Tracking method |
Marker, Global Marker, Feature |
Special Object Scanning |
Use scanning spray for transparent or specular surfaces |
Single Frame Accuracy |
0.02 mm |
Single Capture Area at Nearest Distance |
152 × 138 mm at 200 mm |
CPU |
4-core ARM, 2.0 GHz |
Technology |
Multi-line Laser Scan + Full-field Structured Light Scan |

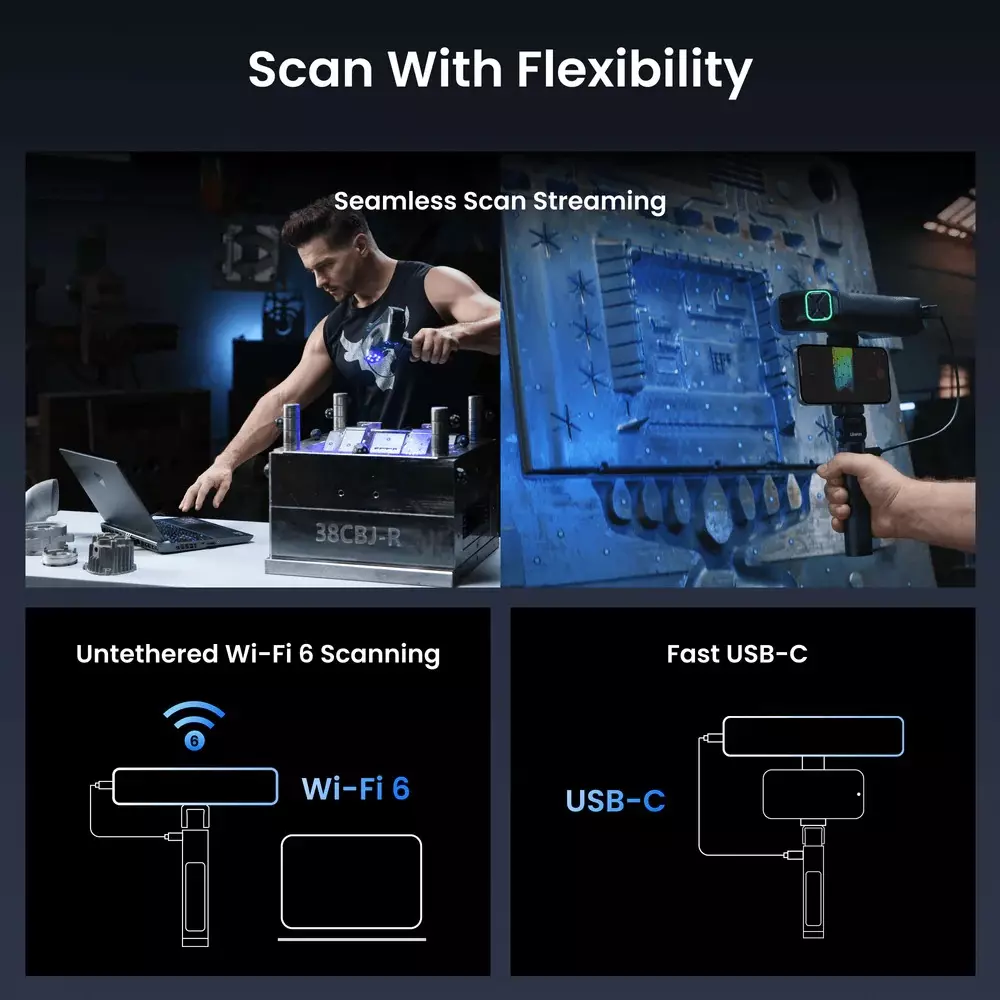

Wi-Fi |
6 |
Volumetric Accuracy |
0.02 mm + 0.04 mm × L (m), where L = object length |
Notes |
1. Precision = repeatability of measurements; Accuracy = closeness to true value. 2. Class 2M Laser Safety – avoid direct eye exposure, especially through optical instruments. 3. Avoid reflective surfaces (mirrors/glass) in the laser path. 4. May not be suitable for people with photosensitive epilepsy. 5. Ensure CPU has ≥ 8 cores, ≥ 16 threads, and ≥ 2.4 GHz base frequency. |
PC Requirement |
macOS: CPU – M1 Pro/Max/Ultra; RAM ≥ 16 GB Windows: CPU – Intel i7 12th Gen or AMD Ryzen 7 5800; RAM ≥ 32 GB; GPU (Optional): NVIDIA RTX 3050 (8 GB) |
Built-in Chip Computing |
Depth Computing |
Angular Field of View (H × V) |
49 × 38° |
Color Scanning |
Yes |

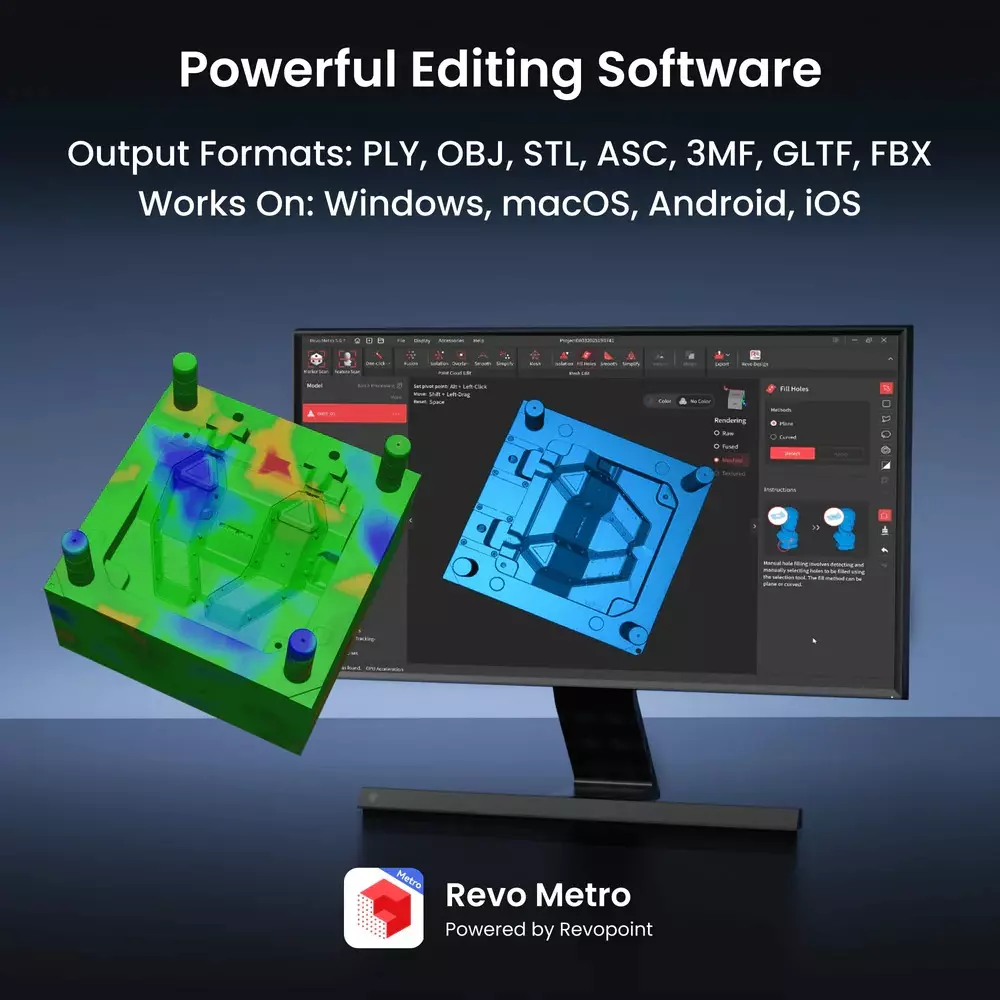

Output File Formats |
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
Power Requirements |
DC 12 V, 3 A |
Single Frame Precision |
0.01 mm |
Outdoor Scanning |
No |
Ready to Print 3D Models |
Yes |
User Recalibration |
Yes |
Fused Point Distance |
0.05 mm |
Supported Accessories |

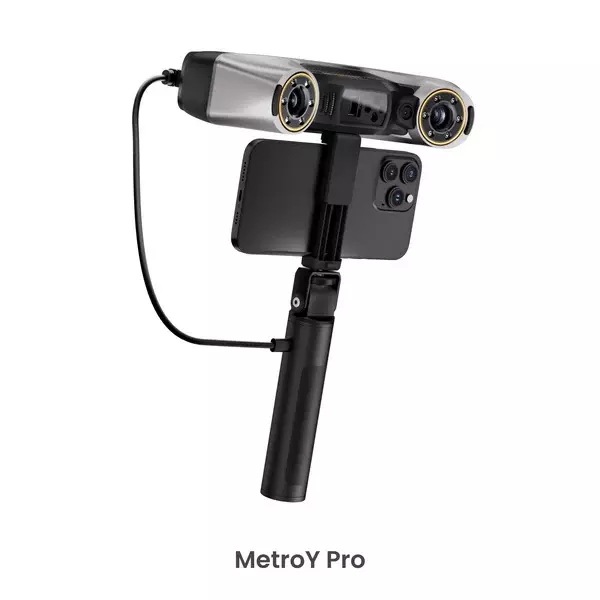

Marker Block Kit, Mobile Kit (3rd Gen), Dual-axis Turntable |
Scanning type |
Handheld |
Fill Lights |
12 Blue LEDs |
