Ships within 3 days
Operating Range
View
View
View
View
| Mounting | Flush Mounting |

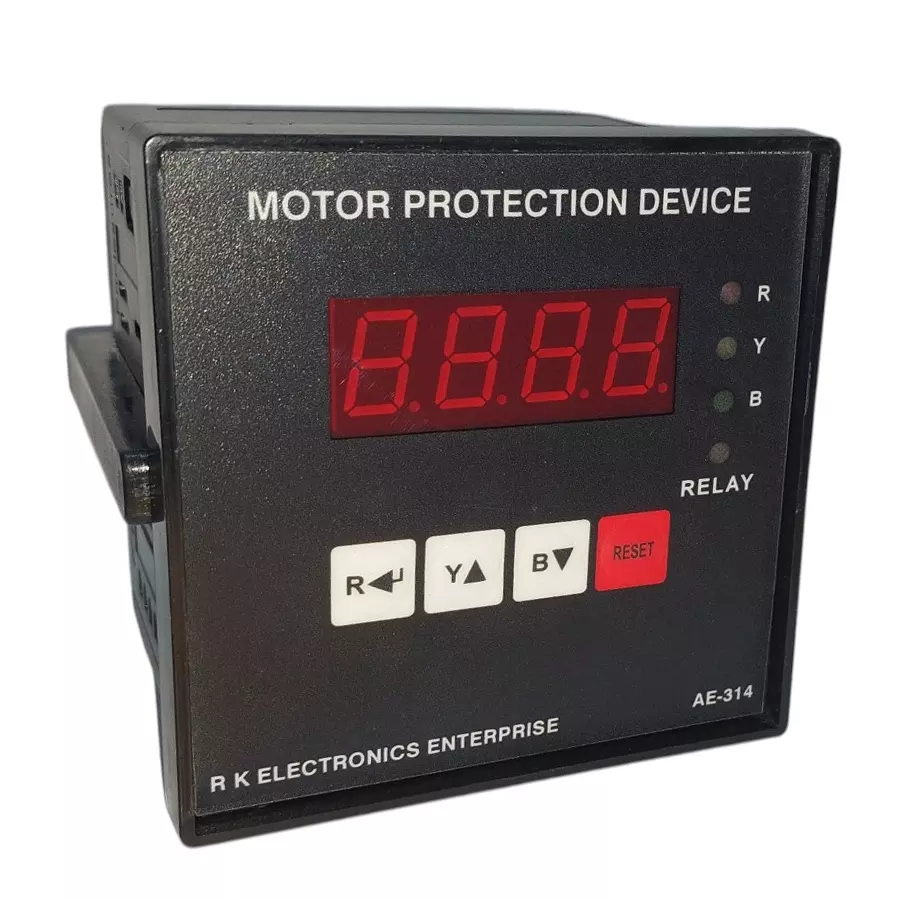

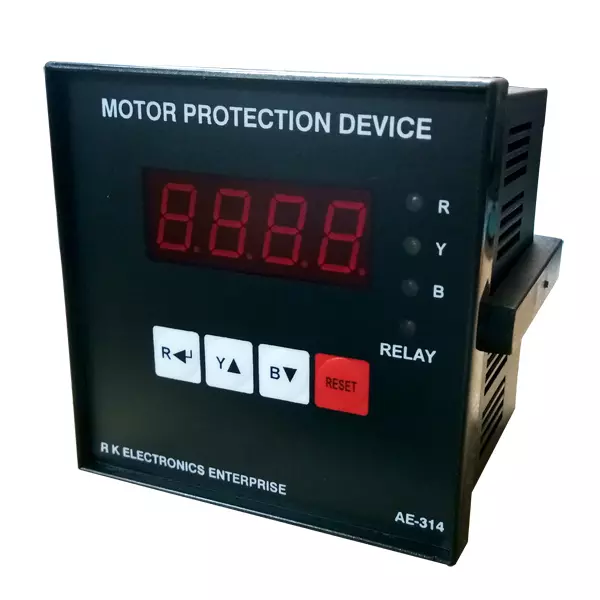

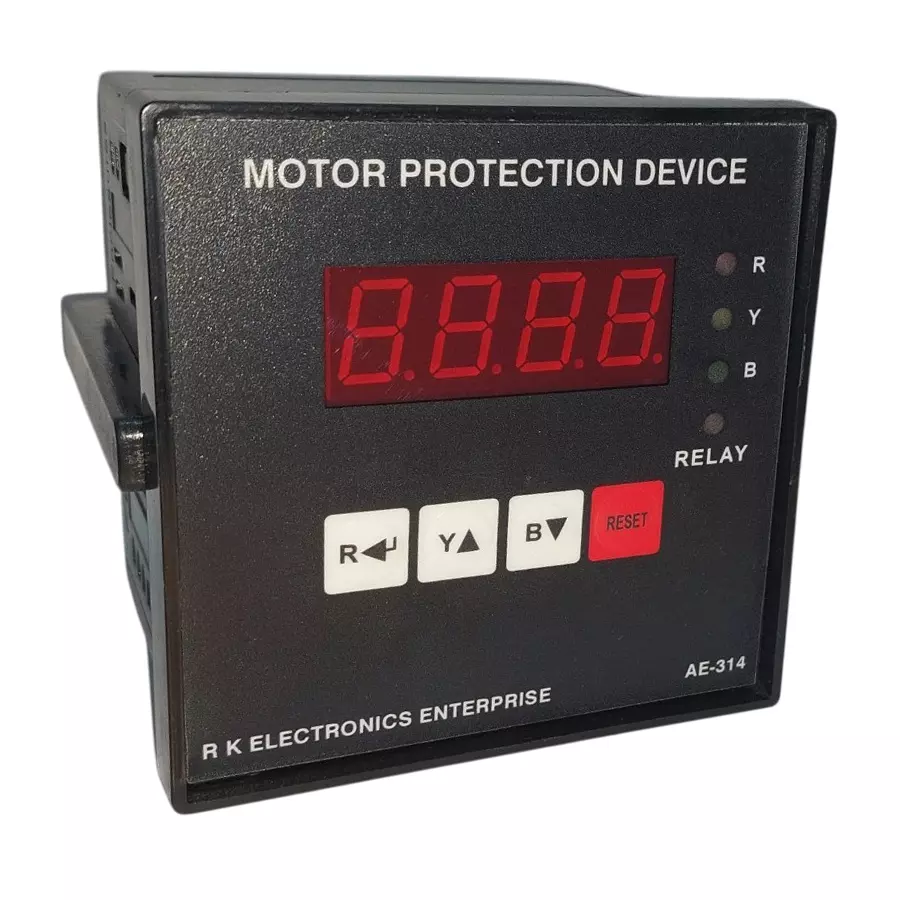

| Type of Product | Motor Protection Device |
| Model No | AE-314 (80 To 500A) |
| Country of Origin | India |
Mounting |
Flush Mounting |
Type of Product |
Motor Protection Device |
Model No |
AE-314 (80 To 500A) |
Country of Origin |
India |
Display Parameter |
Ampere-3Phase, Earth Leakage |
Features |
1) Provides different curves for accurate tripping on the bases of starting time current of motor, 2) Digital Ameter with auto scanner for three phase Current & Earth Leakage Current, 3) CT Specially designed for Motor Protection Device, 4) Man-Machine Interface through keypad & Display, 5) Annunciation indicates the type of fault, 6) Manual Reset, I-T Characteristics curves (2.5C, 5C, 10C), Self Calibration, 7) Last 5 Trip History |
Output |
1 Relay for tripping parameters (5A) |
Display |
7 Segment LED / 4 Digit |
Protection |
1) Over Load 2)Under Current 3)Short Circuit 4)Earth Fault 5)Single Phasing 6)Unbalanced 7)Locked Rotator |
Name of Manufacturer/Packer/Importer |
R K Electronics Enterprise |
Dimensions (WxHxD) |
96x96x65 mm |
Operating Range |
80 To 500A |
Auxiliary Supply Voltage |
230V AC, 50 Hz |

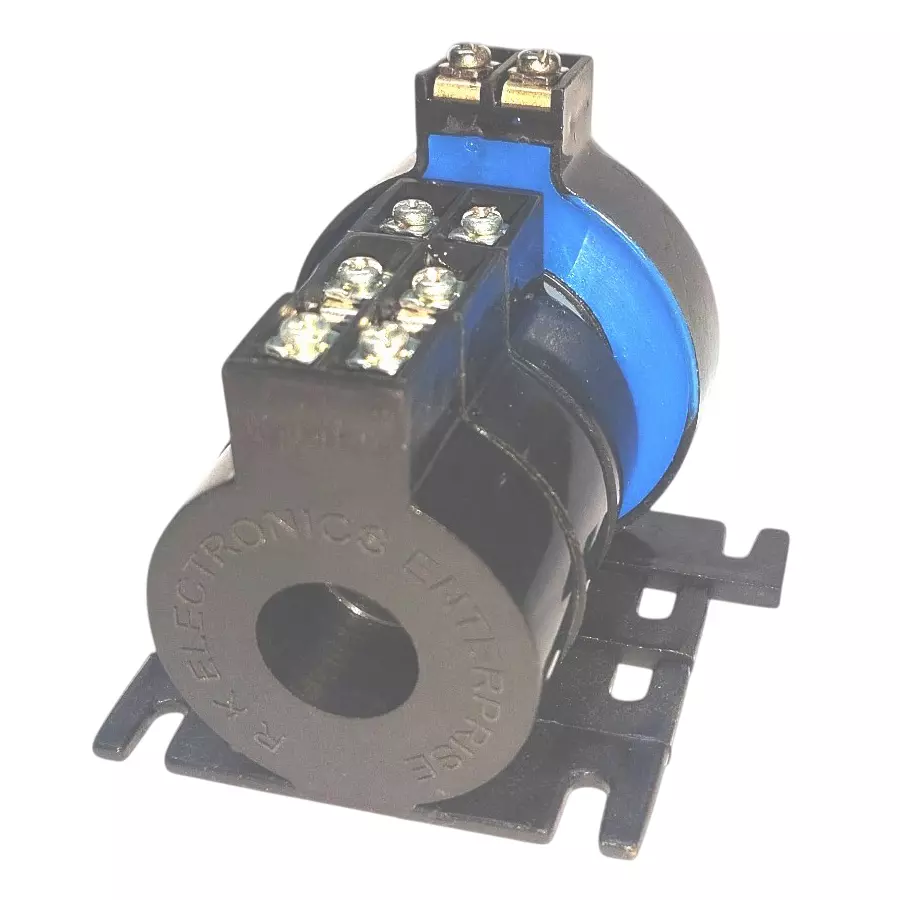

CT |
(With External Line CT-03 nos (55mm Inner Dia) |
