| Type of Product | AC Constant Voltage Power Supply |
| Model No | AVR-3000A |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Swallow Electric Co., Ltd. |
Type of Product |
AC Constant Voltage Power Supply |
Model No |
AVR-3000A |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Swallow Electric Co., Ltd. |
Monotaro ID |
8524205 |
Import Country |
Direct Import from Japan |
Waveform Distortion |
Equivalent to input voltage waveform |
Test Accuracy Voltage |
±2% |
Load Fluctuation |
0 to 100% |
Output Voltage (V) |
AC 100 |

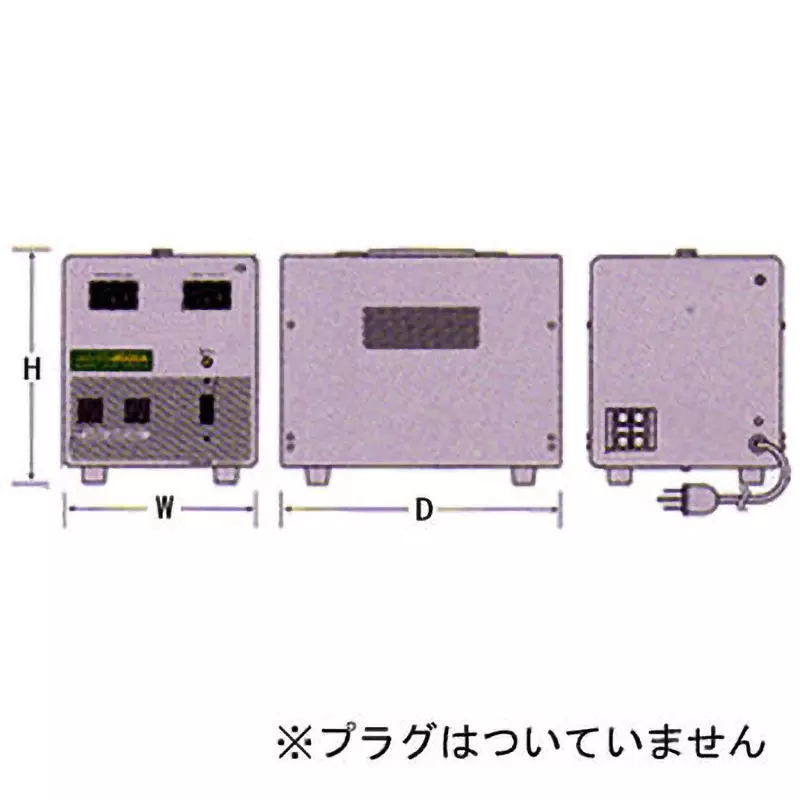

Dimension (mm) |
210x300x250 |
Capacity (Kva) |
3 |
Mass (Kg) |
About 18 |
Rated Output Voltage (V) |
AC 100 |
Frequency (Hz) |
50/60 |
Response Time |
Within 1 second (at input voltage ± 10%) |
Outer Dimensions |
210x300x250 mm |
Rated Input Voltage (V) |
AC100±15% |
Isolation Voltage |
1500 V AC for 1 minute |
Insulation Resistance (MOhm) |
100MΩ or more at DC500 V Mega |
Ambient Temperature (℃) |
-5 to 40 |
Temperature Rise |
Main heating part 85°C or less |
Protective Function |
No fuse breaker |
Efficiency (%) |
90% or more (at minimum input voltage) |
