Ships within 19 days
Model No
Output (kW)
View
View
View
View
| Voltage | 100 V |
| Type of Product | AC Servo Motor |

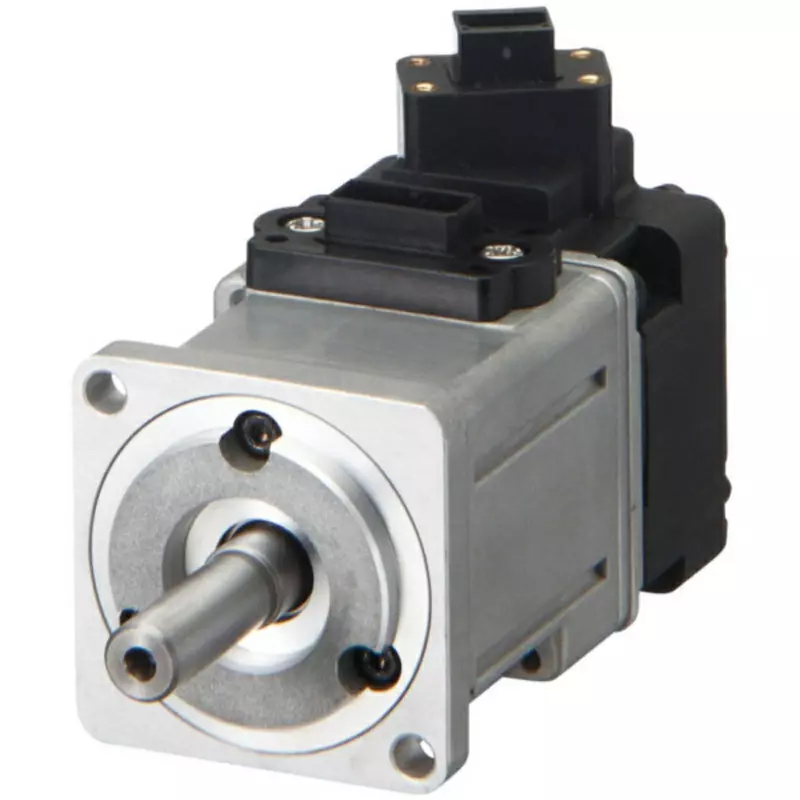

| Model No | R88M-K05030T-BS2 |
| Series | G5 series |
Voltage |
100 V |
Type of Product |
AC Servo Motor |
Model No |
R88M-K05030T-BS2 |
Series |
G5 series |
Motor Type |
Cylinder Type |
Monotaro ID |
39094447 |
With or Without Brake |
Included |
Rating |
Continuous |
Type |
Servomotor |
Rotational Speed |
3000 RPM |
Protection Class |
IP67 (Excluding Shaft Penetration, Motor Connector, And Encoder Connector Connection Pins) |
Material |
(Heat Sink)Al |
Applicable Standard |
(UL Standard) UL1004-1 (CSA Standard) CSA 22.2 No.100 |
Power Supply |
Alternating Current |
Motor Capacity |
50 W |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Output (kW) |
0.05 kW |
Withstand Voltage |
Between Power Terminal And Fg: AC 1500 (Voltage 100V/200 V) Between Power Terminal And Fg: AC 1800 (Voltage 400V) Between Brake Terminal And Fg: AC 1000 |
Power Consumption (W) |
7 (At 20 ° C) |

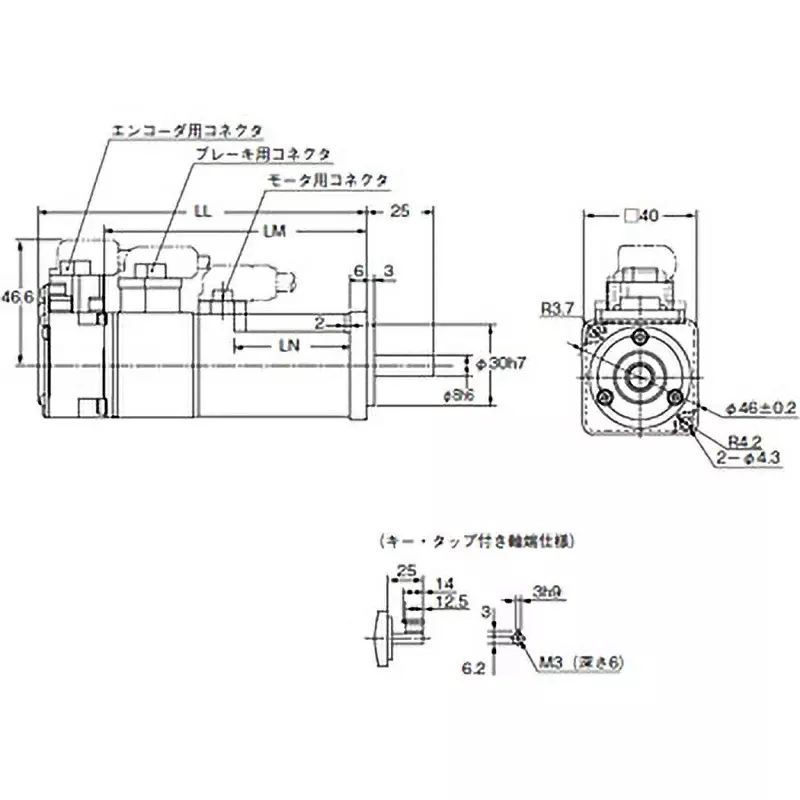

Dimension (mm) |
100×80×T10 |
Maximum Torque (Nm) |
(Instant) 0.48 |
Mass |
About 510 g |
Import Country |
Direct Import from Japan |
Input Type |
Pulse Train Input Type |
Insulation Class |
F Class |
