| Voltage | 200 |
| Type of Product | AC Servo Motor |

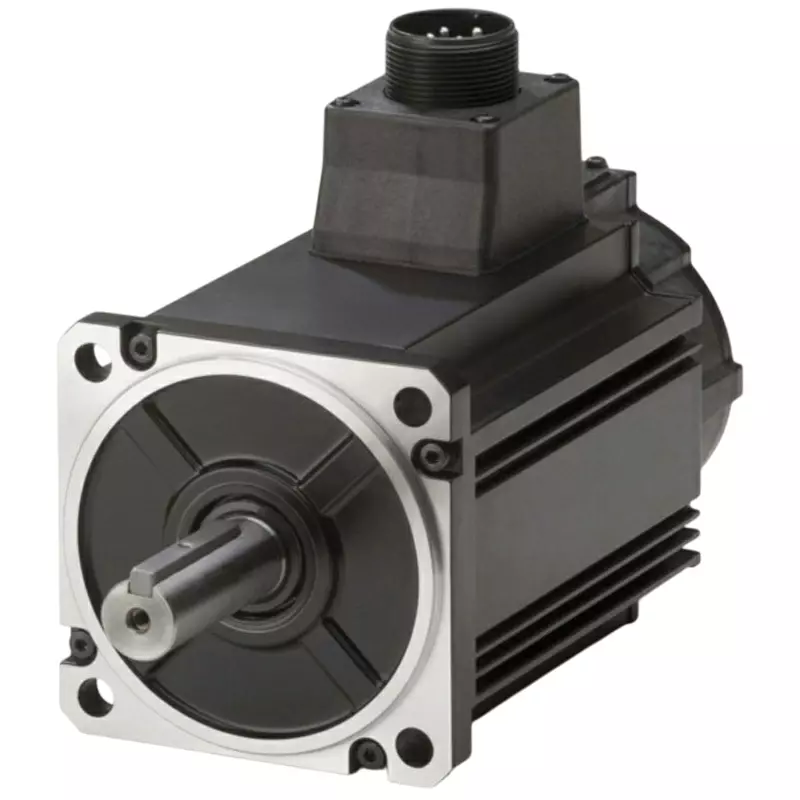

| Model No | R88M-K1K020T-BS2 |
| Series | G5 series |
Voltage |
200 |
Type of Product |
AC Servo Motor |
Model No |
R88M-K1K020T-BS2 |
Series |
G5 series |
Motor Type |
Cylinder Type |
Monotaro ID |
39094596 |
With or Without Brake |
Included |
Rating |
Continuous |
Type |
Servomotor |
Rotational Speed |
2000 RPM |
Protection Class |
IP67 (Excluding shaft penetration, motor connector, and encoder connector connection pins) |
Material |
(Heat sink)Al |
Applicable Standard |
(EC Directive) (Low Voltage Directive) IEC60034-1/-5 (UL Standard) UL1004-1, UL1004-6 (CSA Standard) CSA 22.2 No.100 |
Power Supply |
Alternating current |
Dimensions s (mm) |
22 |
Motor Capacity |
1000W |
Country of Origin |
China |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Output (kW) |
1 kW |
Rated Current (A) |
5.7 |
Withstand Voltage |
Between power terminal and FG: AC1500 (voltage 100V/200V) Between power terminal and FG: AC1800 (voltage 400V) Between brake terminal and FG: AC1000 |
Mass (Kg) |
About 6.7 |
Power Consumption (W) |
14 (at 20 ° C) |
Dimension (mm) |
(Heat-resistant plate) 275 × 260 × t15 |
Maximum Torque (Nm) |
(Instant) 14.3 |
Import Country |
Direct Import from Japan |
Input Type |
Pulse Train Input Type |
Insulation Class |
F Class |
