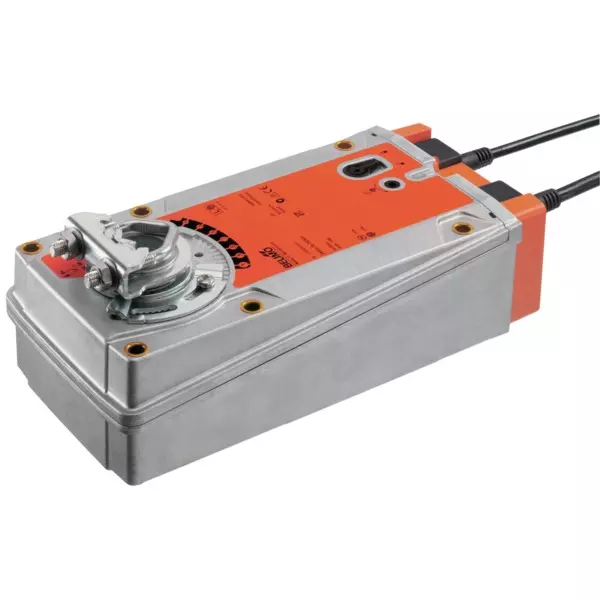

| Type of Product | Mechanical Fail-Safe Damper Actuators |
| Model No | EF230A-S2 |
| Voltage | 100 to 240 V AC |
| Country of Origin | Switzerland |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Mechanical Fail-Safe Damper Actuators |
Model No |
EF230A-S2 |
Voltage |
100 to 240 V AC |
Country of Origin |
Switzerland |
Name of Manufacturer/Packer/Importer |
AP Enterprise |
Ambient Temperature |
-30 to 50 °C [-22 to 122 °F] |
Torque |
30 Nm |
Control |
Open/close |
Power Consumption For Wire Sizing |
21 VA |
Connection Auxilary Switch |
Cable 1 m, 6 x 0.75 mm² (halogen-free) |
Direction Of Motion Motor |
Selectable by Mounting L/R |
Auxiliary Switches |
2x SPDT |
Running Time (fail-safe) |
<20 s |
Direction of Rotation |
Selectable by mounting L/R |
Power Consumption (holding) |
4.5 W |
Manual Override |
By means of hand crank and locking switch |
Mechanical Interface |
Universal shaft clamp 12 to 26.7 mm |
Power Consumption (running) |
9 W |
IP Protection |
IP54 |
Running Time (motor) |
75 s / 90 ° |
Connection Supply Control |
Cable 1 m, 2 x 0.75 mm² (halogen-free) |
Rotation Angle |
95 ° |
