| Rated Output Current (A) | 2.4 (heavy load) |
| Output Voltage (V) | 200 to 240±10% |
| Mass (Kg) | 1.5 |
| Cooling Method | Self-cooling |
Rated Output Current (A) |
2.4 (heavy load) |
Output Voltage (V) |
200 to 240±10% |
Mass (Kg) |
1.5 |
Cooling Method |
Self-cooling |
Protection Class |
IP20 |
Monotaro ID |
63339983 |

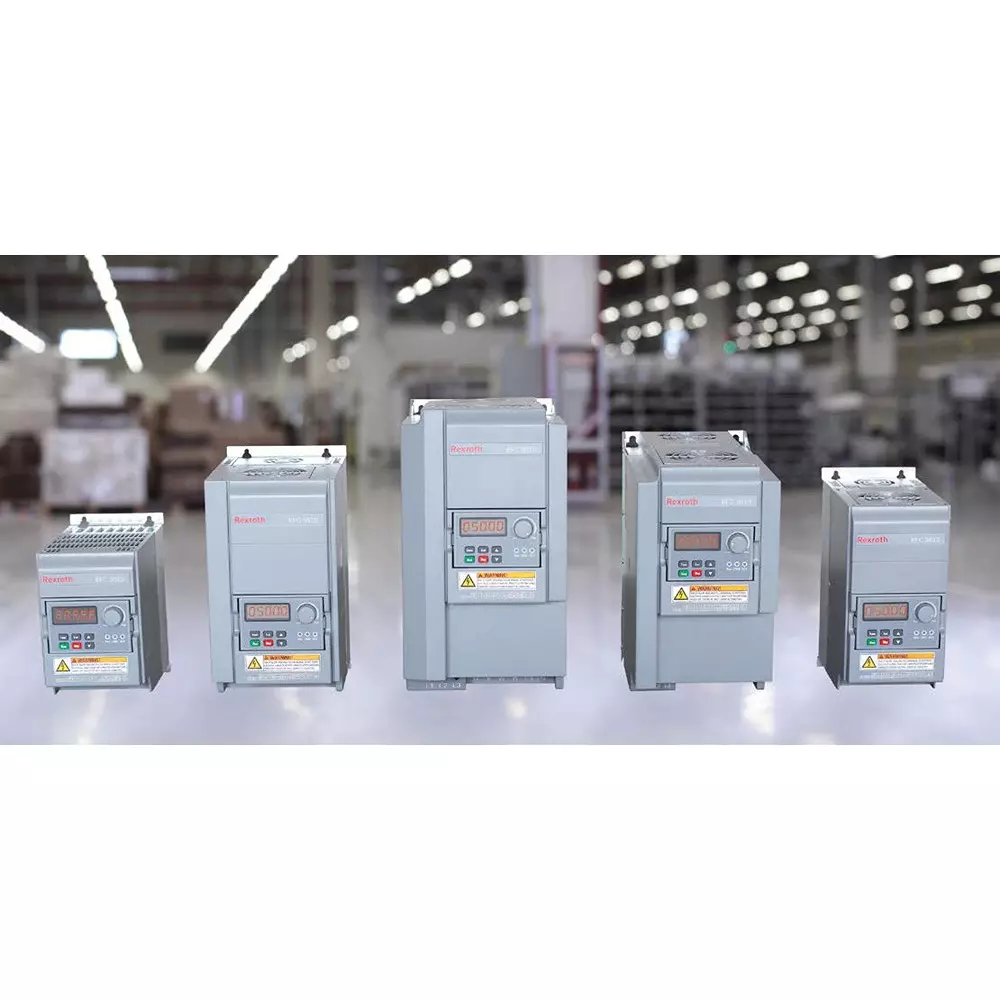

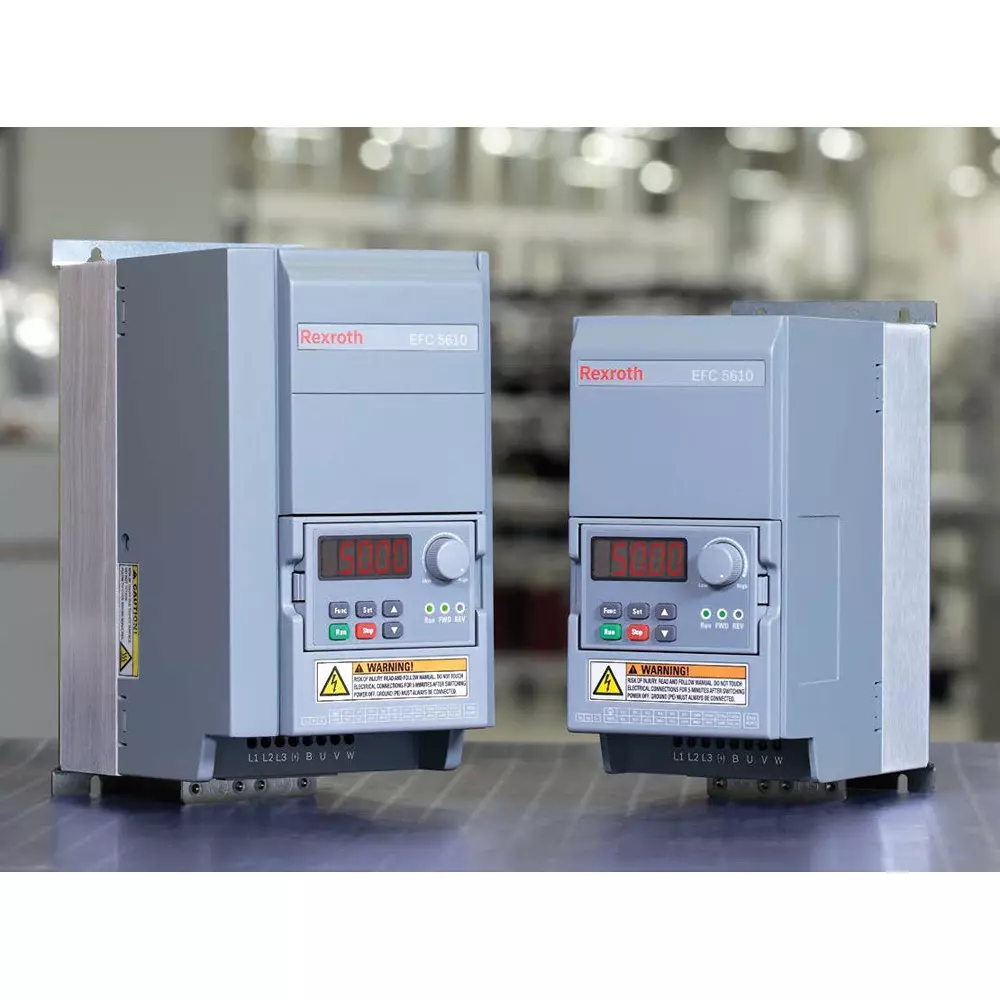

Type of Product |
Inverter |
Model No |
EFC5610-0K40-3P2-MDA-7P-NNNNN-L1NN |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Output Frequency (Hz) |
0 to 400 |
Display |
LED |
Starting Torque |
0.5Hz200% |
Control |
V/f, SVC, FOC |
Name of Manufacturer/Packer/Importer |
Bosch Rexroth |
Communication Protocol |
Modbus RTU |
Specifications |
●Product series: EFC ●Power supply phases: 3 phases ●ASF firmware developed for specific industrial applications: Standard ●Built-in DC reactor: 30kW or more ●Safe torque off function (STO): SIL3 ●I/O terminals: Analog input/output, digital input/output, relay output ●Built-in PID control: 1 |
Overload Withstand |
Heavy load: 150%, 60s; 200%, 1s/Standard load: 120%, 60s |
Dimension H (Φmm) |
156 |
Frequency (Hz) |
50/60±5% |
Dimension d |
167 mm |
Dimension W |
95 mm |
Power Supply Voltage (V) |
200V(AC200 to 240V(±10%)) |
Ambient Humidity to Use |
90% or less |
Operation Ambient Temperature (°C) |
-10 to 45, 40 to 50, derating 1.5%/1 |
