Ships within 25 days
View
View
View
View
| Model No | 10126-6000EL |
| Type | Square |
| Material | Contact: Copper alloy, nickel-plated gold-plated Body and cover: Glass-reinforced polyester shroud: Steel, nickel-plated |
| Type of Product | Plug |
Model No |
10126-6000EL |
Type |
Square |
Material |
Contact: Copper alloy, nickel-plated gold-plated Body and cover: Glass-reinforced polyester shroud: Steel, nickel-plated |
Type of Product |
Plug |
Rated Current (A) |
0.5 |
Country of Origin |
Japan |
Shape |
Straight |
No. of Pole |
26 |
Monotaro ID |
8580984 |
Name of Manufacturer/Packer/Importer |
3M Japan Limited |
Rated Voltage (V) |
AC 150/DC200 |
Dimension A (Φmm) |
15.24 |
Specifications |
Contact part gold plating thickness 0.2μm or more |
Dimension B (Φmm) |
21.4 |
Dimension C |
25.8 |

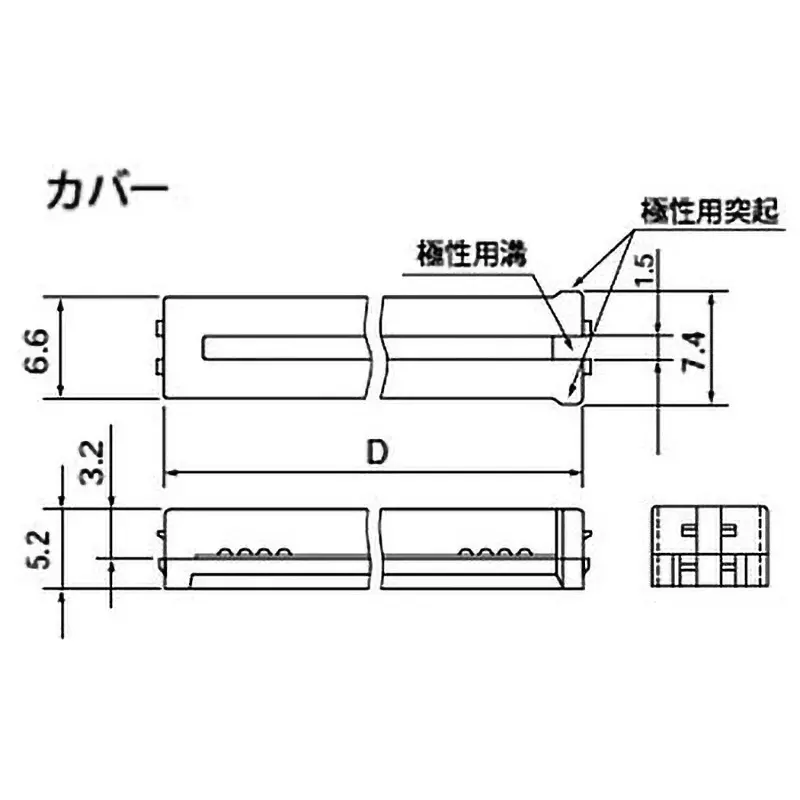

Dimension d |
22.4 |
Import Country |
Direct Import from Japan |
Connection Method |
Crimping |
Ambient Temperature (℃) |
-55 to +85 (Temperature range that can be used continuously under maximum load conditions) |
Contact Shape |
Male |
Suitable Cable |
AWG # 28 stranded wire (Outer diameter of wire including insulator is 0.7mm or less) |
Applicable Connector |
MDR receptacle |
