| Model No | 35805-6000-B0M GF |
| Type | Square |
| Color | body/black cover/red |

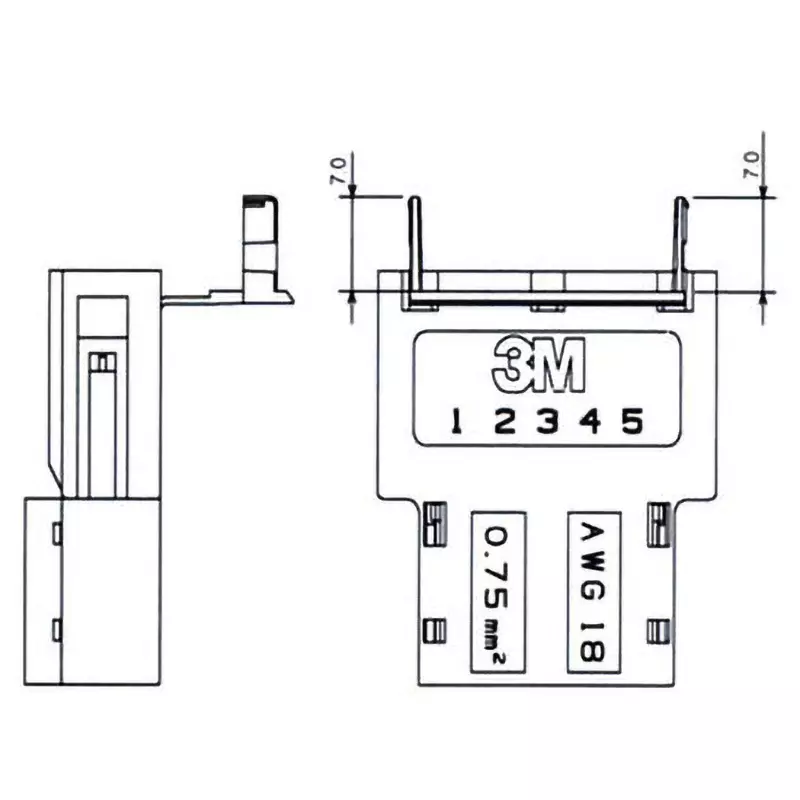

| Type of Product | CC-LINK Connection Plug |
Model No |
35805-6000-B0M GF |
Type |
Square |
Color |
body/black cover/red |
Type of Product |
CC-LINK Connection Plug |
Rated Current (A) |
10 / pole (however, 7 / pole when energizing two or more adjacent contacts) |
Country of Origin |
Japan |
Body Material |
Nylon resin |
Shape |
Straight |
Contact Material |
Copper alloy |
No. of Pole |
5 |
Monotaro ID |
34827405 |
Connection Type |
One touch |
Withstand Voltage |
Leakage current within 1mA (no dielectric breakdown) Apply AC1000VRMS between adjacent contacts for 1 minute |
Name of Manufacturer/Packer/Importer |
3M Japan Limited |
Rated Voltage (V) |
AC/DC250 |
Cover Material |
Polycarbonate resin (UL94 V-O) |
Insulation Resistance (MOhm) |
1000 or more |
Import Country |
Direct Import from Japan |
Connection Method |
Crimping |
Contact Shape |
Male |
Max. Conductor Size |
0.50(AWG20) |
Operating Temperature (c) |
-20 to 75 ℃ |
Applicable Wire Diameter (Φmm) |
2.2 to 3.0 |
