Ships within 25 days
View
View
View
View

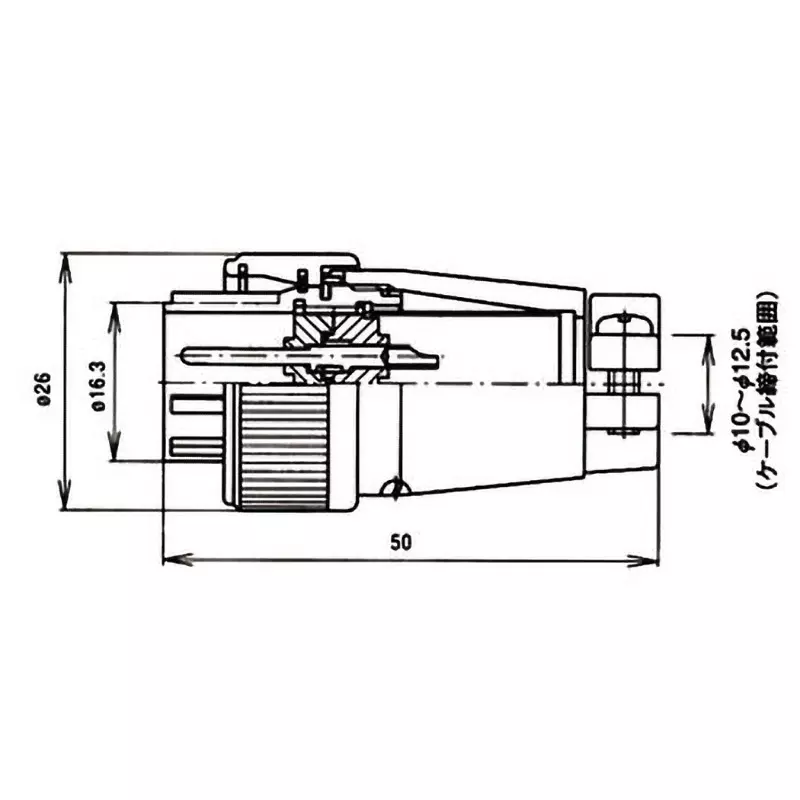

| Model No | NR-2012-PM |
| Type | Round type |
| Type of Product | Metal Connector Straight Plug |
| Rated Current (A) | 5 |
Model No |
NR-2012-PM |
Type |
Round type |
Type of Product |
Metal Connector Straight Plug |
Rated Current (A) |
5 |
Suitable For |
NR-2012-RF |
Country of Origin |
Japan |
Shape |
Straight |
Contact Material |
Copper alloy / silver plating |
No. of Pole |
12 |
Monotaro ID |
34822383 |
Connection Type |
One touch |
Contact Type |
Male |
Operating Temperature Range |
-25 to +85℃ |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
Rated Voltage (V) |
250 |
RoHS Directive |
Correspondence |
Insulator Material |
Synthetic resin |
Specifications |
Reverse core (power supply side) |
Insulation Resistance (MOhm) |
1000 |
Contact Resistance (ohm) |
5 mΩ or less |
Import Country |
Direct Import from Japan |
Shell Size |
20 |
Connector Shape |
Plug |
Conductor Cross Section Area |
0.5 mm² |
Material (Shell) / Finish |
Zinc alloy/satin chrome plating |
Suitable Cable Outer Dia. (Φmm) |
10.0 to 12.5 |
