| Model No | NWPC-256-P9 |
| Type | Round type |

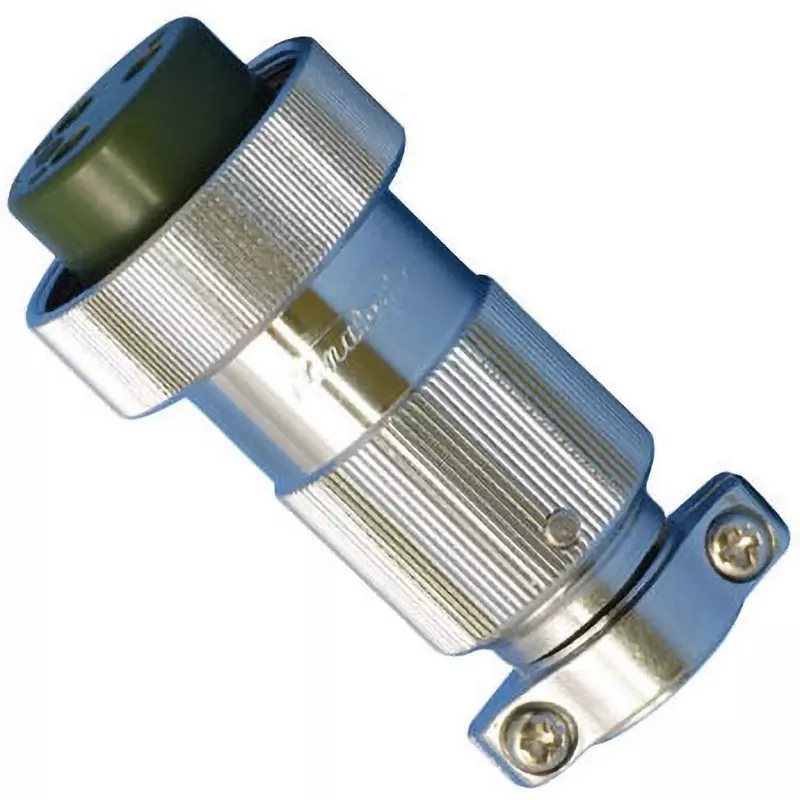

| Type of Product | Connector Straight Plug |
| Rated Current (A) | 10 |
Model No |
NWPC-256-P9 |
Type |
Round type |
Type of Product |
Connector Straight Plug |
Rated Current (A) |
10 |
Country of Origin |
Japan |
Shape |
Straight |
Contact Material |
Copper alloy / nickel plating |
No. of Pole |
6 |
Monotaro ID |
39276745 |
Connection Type |
Screw |
Contact Type |
Female |
Operating Temperature Range |
-40 to +85℃ |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
Rated Voltage (V) |
125 |
Insulator Material |
Synthetic resin |
Specifications |
Positive core (equipment side) |
Insulation Resistance (MOhm) |
2000 |
Contact Resistance (ohm) |
3 mΩ or less |
Import Country |
Direct Import from Japan |
Shell Size |
25 |
Material (Gasket) |
Synthetic rubber |
Connector Shape |
Plug |
Conductor Cross Section Area |
2 mm² |
Material (Shell) / Finish |
Brass / chrome plating |
Suitable Cable Outer Dia. (Φmm) |
8.1 to 10.0 |
