Ships within 25 days
View
View
View
View
| Model No | NCS-303-PM |
| Type | Round type |
| Type of Product | Large Metal Connector Straight Plug |
| Rated Current (A) | 15 |
Model No |
NCS-303-PM |
Type |
Round type |
Type of Product |
Large Metal Connector Straight Plug |
Rated Current (A) |
15 |
Standard |
Electrical Appliance and Material Safety Law |
Suitable For |
NCS-303-RF |
Country of Origin |
Japan |
Shape |
Straight |
Contact Material |
Copper alloy / nickel plating |

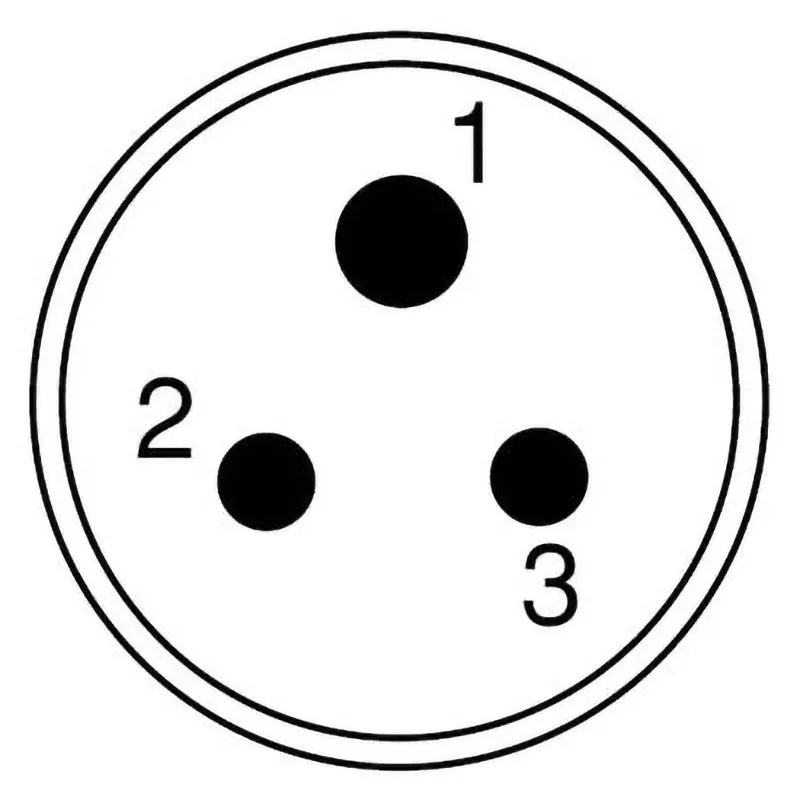

No. of Pole |
3 |
Monotaro ID |
8558347 |
Connection Type |
Screw |
Operating Temperature Range |
-40 to +120℃ |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
Rated Voltage (V) |
250 |
Insulator Material |
Synthetic resin |
Specifications |
Reverse core (power supply side) |
Insulation Resistance (MOhm) |
2000 |
Trusco Part No. |
434-1996 |
Contact Resistance (ohm) |
3 mΩ or less |
Import Country |
Direct Import from Japan |
Material (Gasket) |
Synthetic rubber |
Connector Shape |
PM (male) |
Conductor Cross Section Area |
2 mm² |
Material (Shell) / Finish |
Zinc alloy or brass/chrome plating or special chemical treatment (16 color type) |
Suitable Cable Outer Dia. (Φmm) |
11.0 to 13.0 |
