| Model No | NJC-165-AdF |
| Type | AdF adapter |
| Rating | 5A 125V |
| Type of Product | Metal Connector Relay Adapter |
Model No |
NJC-165-AdF |
Type |
AdF adapter |
Rating |
5A 125V |
Type of Product |
Metal Connector Relay Adapter |
Standard |
JIS C 5432 compliant product available/Product Safety electrical Appliance and Material compliant product available |
Country of Origin |
JAPAN |
Shape |
Inverted core |
Contact Material |
Copper alloy / silver plating |

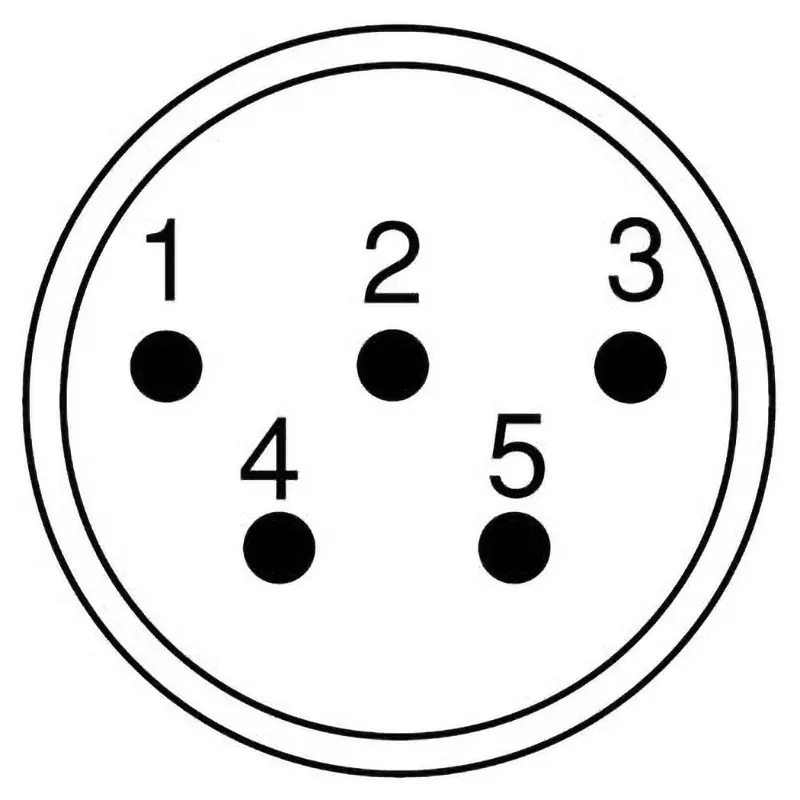

No. of Contacts |
5 |
Monotaro ID |
8557455 |
Contact Type |
Reverse Core (Socket Contact) / Female |
Withstand Voltage |
1000V |
Operating Temperature Range |
-25 to +85℃ |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
RoHS Directive |
Correspondence |
Insulator Material |
Synthetic resin |
Specifications |
Reverse core (power supply side) |
Insulation Resistance (MOhm) |
1000 |
Contact Resistance (ohm) |
5 mΩ or less |
Import Country |
Direct Import from Japan |
Shell Size |
16 |
Wire Connection |
Soldering |
Conductor Cross Section Area |
0.5 mm² |
Material (Shell) / Finish |
Zinc alloy/satin chrome plating |

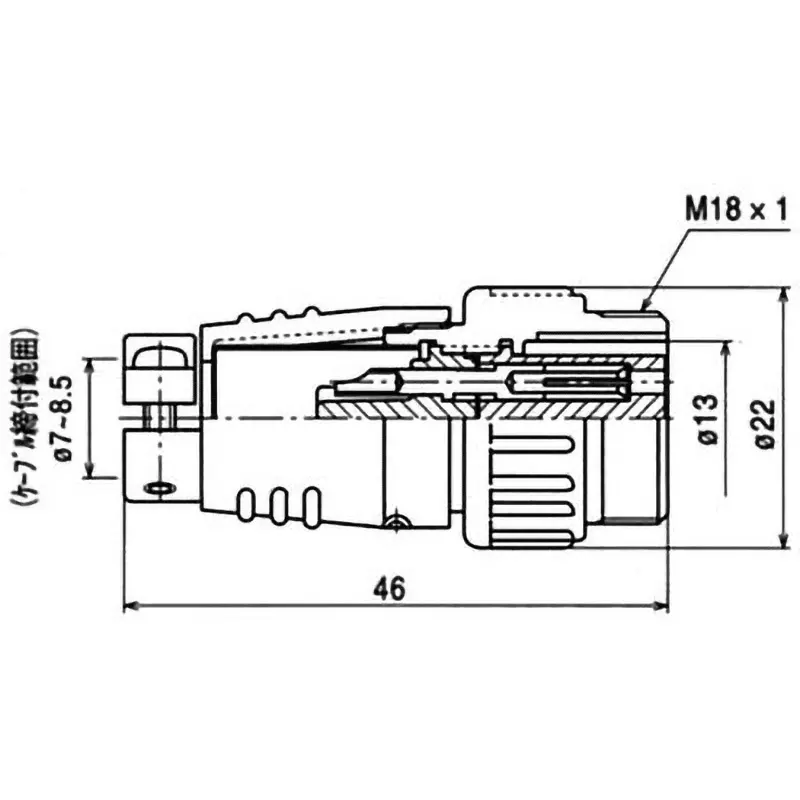

Suitable Cable Outer Dia. (Φmm) |
7.0 to 8.5 |
