Ships within 25 days
View
View
View
View
| Model No | NJC-2816-PF |
| Type | Round type |
| Type of Product | Metal Connector Straight Plug |
| Rated Current (A) | 10 |
Model No |
NJC-2816-PF |
Type |
Round type |
Type of Product |
Metal Connector Straight Plug |
Rated Current (A) |
10 |
Standard |
JIS C 5432 compliant product available/Product Safety electrical Appliance and Material compliant product available |
Country of Origin |
JAPAN |
Shape |
Straight |
Contact Material |
Copper alloy / silver plating |

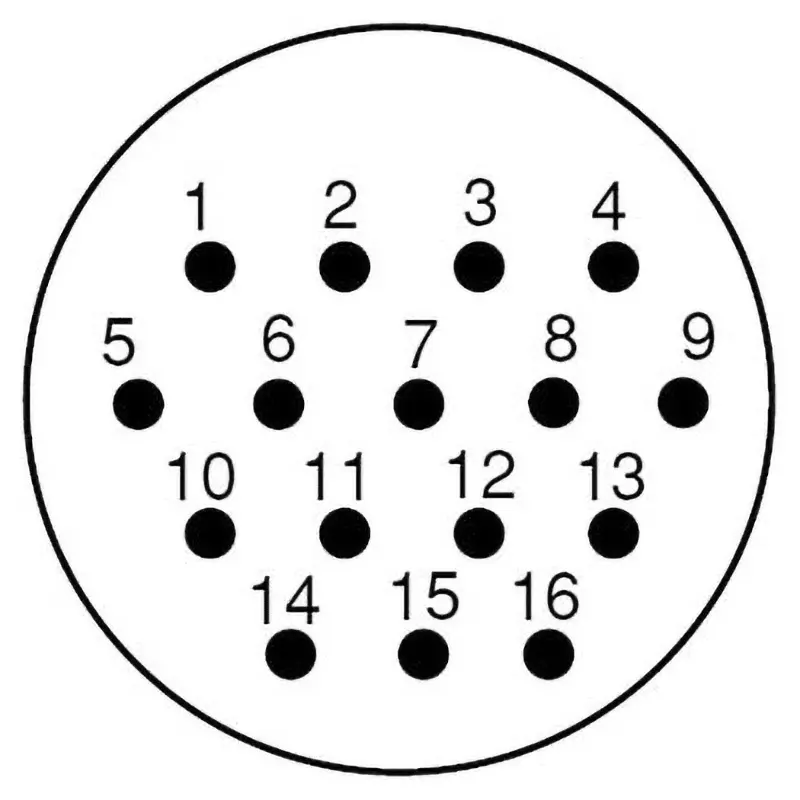

No. of Pole |
16 |
Monotaro ID |
8556712 |
Connection Type |
Screw |
Contact Type |
Female |
Operating Temperature Range |
-25 to +85℃ |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
Rated Voltage (V) |
250 |
Insulator Material |
Synthetic resin |
Specifications |
Positive core (cable side) |
Insulation Resistance (MOhm) |
2000 |
Contact Resistance (ohm) |
3 mΩ or less |
Import Country |
Direct Import from Japan |
Shell Size |
28 |
Material (Gasket) |
Synthetic rubber |
Connector Shape |
Plug |
Conductor Cross Section Area |
1.25 mm² |
Material (Shell) / Finish |
Aluminum alloy/Satin chrome plating |
Suitable Cable Outer Dia. (Φmm) |
13.6 to 16.5 |
