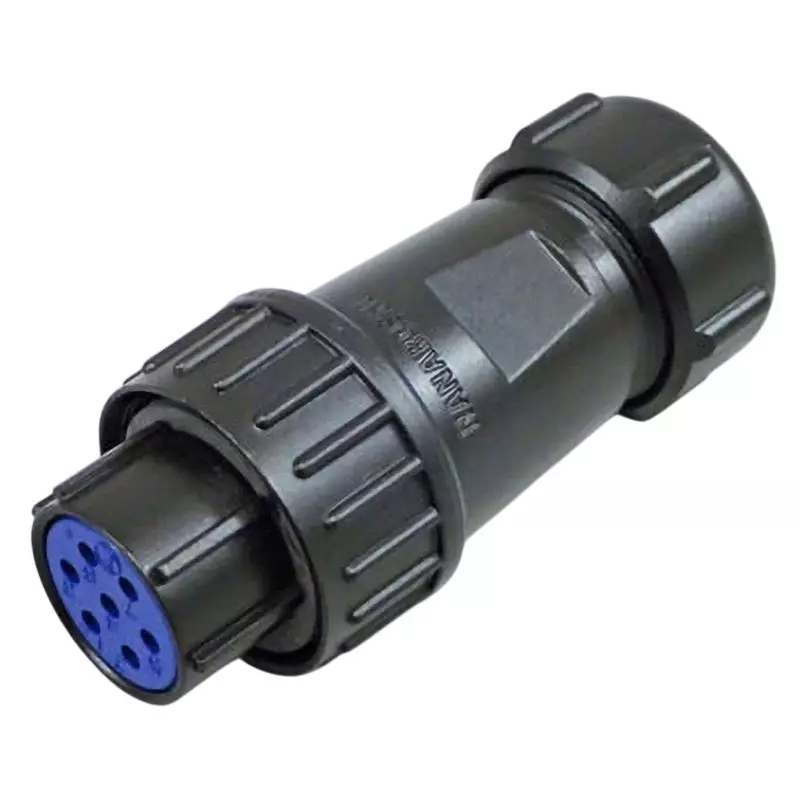

| Model No | NJW-207-PF8 |
| Type | Round type |
| Type of Product | Connector Straight Plug |
| Rated Current (A) | 10 |
Model No |
NJW-207-PF8 |
Type |
Round type |
Type of Product |
Connector Straight Plug |
Rated Current (A) |
10 |
Standard |
Electrical Appliance and Material Safety Law |
Country of Origin |
Japan |
Shape |
Straight |
Contact Material |
Copper alloy / silver plating |
No. of Pole |
7 |
Monotaro ID |
10365345 |
Connection Type |
Screw |
Contact Type |
Female |
Operating Temperature Range |
-25 to +85℃ |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
Rated Voltage (V) |
250 |
Insulator Material |
Synthetic resin |
Specifications |
Positive core (equipment side) |
Insulation Resistance (MOhm) |
2000 |
Contact Resistance (ohm) |
3 mΩ or less |
Import Country |
Direct Import from Japan |
Shell Size |
20 |
Material (Gasket) |
Synthetic rubber |
Connector Shape |
PF plug |
Conductor Cross Section Area |
1.25 mm² |
Material (Shell) / Finish |
Zinc alloy/special chemical treatment |
Suitable Cable Outer Dia. (Φmm) |
7.0 to 8.5 |
