| Model No | NCS-258-P |
| Type | Round type |

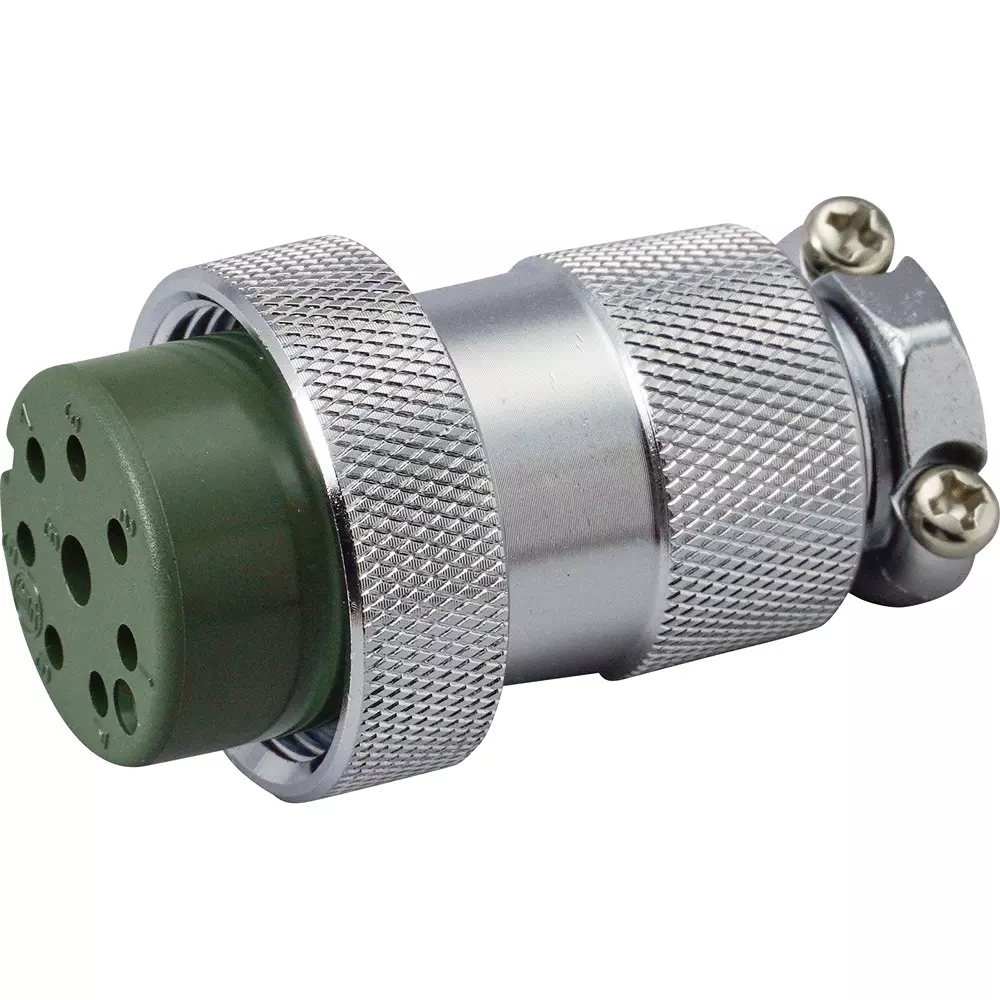

| Type of Product | Large Metal Connector Straight Plug |
| Rated Current (A) | 5 |
Model No |
NCS-258-P |
Type |
Round type |
Type of Product |
Large Metal Connector Straight Plug |
Rated Current (A) |
5 |
Standard |
Electrical Appliance and Material Safety Law |
Suitable For |
NCS-258-R |
Country of Origin |
Japan |
Shape |
Straight |
Contact Material |
Copper alloy / nickel plating |

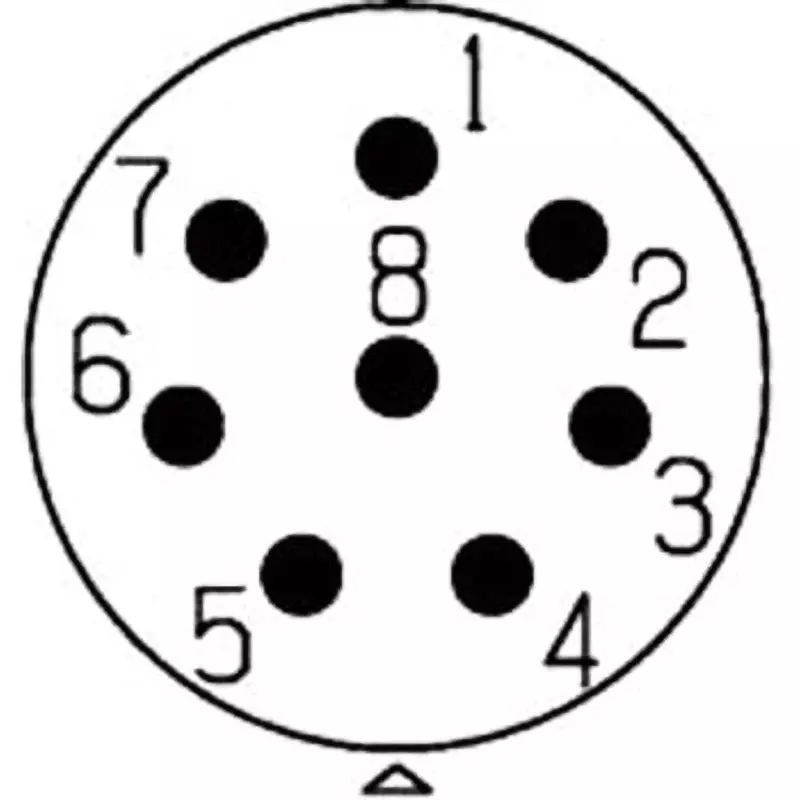

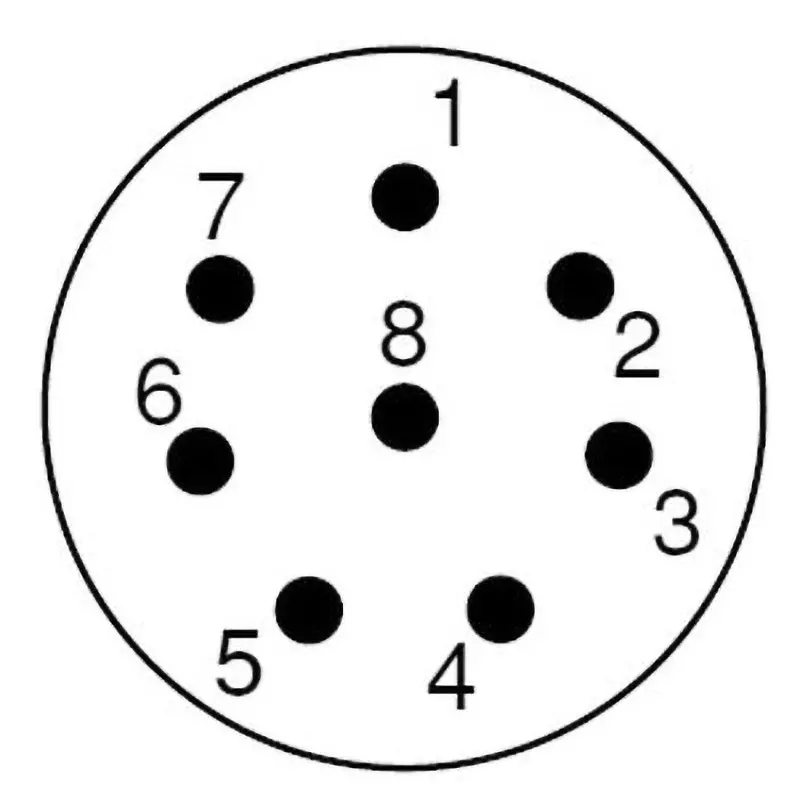

No. of Pole |
8 |
Monotaro ID |
8557814 |
Connection Type |
Screw |
Operating Temperature Range |
-40 to +120℃ |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
Rated Voltage (V) |
250 |
Insulator Material |
Synthetic resin |
Specifications |
Positive core (equipment side) |
Insulation Resistance (MOhm) |
2000 |
Trusco Part No. |
434-1929 |
Contact Resistance (ohm) |
3 mΩ or less |
Import Country |
Direct Import from Japan |
Material (Gasket) |
Synthetic rubber |
Connector Shape |
Plug |
Conductor Cross Section Area |
1.25 mm² |
Material (Shell) / Finish |
Zinc alloy or brass/chrome plating or special chemical treatment (16 color type) |
Suitable Cable Outer Dia. (Φmm) |
9.5 to 11.5 |
