| Model No | NR-207-PF |
| Type | Round type |

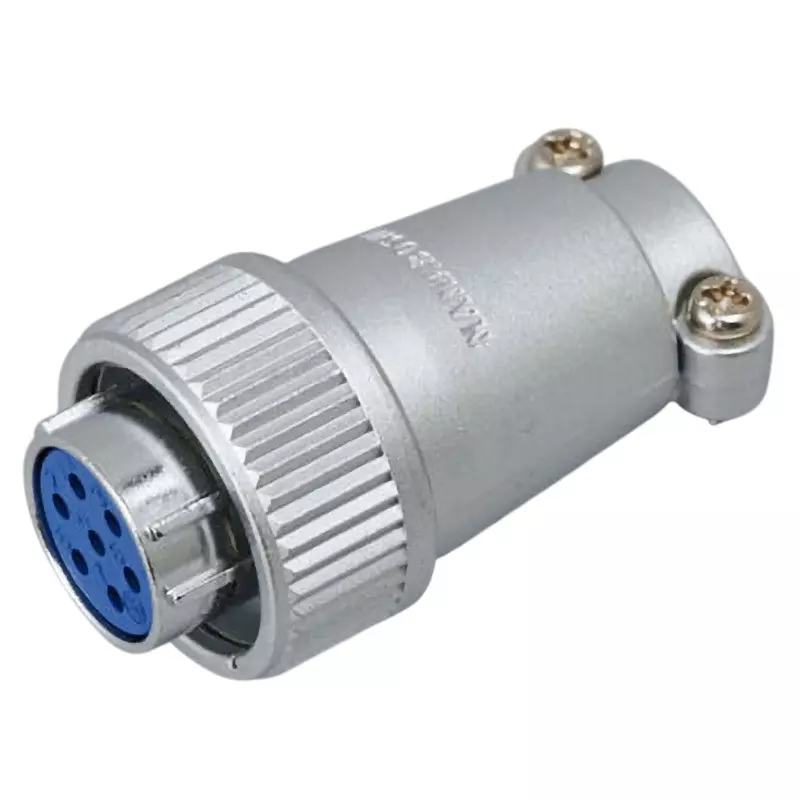

| Type of Product | Metal Connector Straight Plug |
| Rated Current (A) | 10 |
Model No |
NR-207-PF |
Type |
Round type |
Type of Product |
Metal Connector Straight Plug |
Rated Current (A) |
10 |
Suitable For |
NR-207-RM |
Country of Origin |
Japan |
Shape |
Straight |
Contact Material |
Copper alloy / silver plating |
No. of Pole |
7 |
Monotaro ID |
34822322 |
Connection Type |
One touch |
Contact Type |
Female |
Operating Temperature Range |
-25 to +85℃ |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
Rated Voltage (V) |
250 |
RoHS Directive |
Correspondence |
Insulator Material |
Synthetic resin |
Specifications |
Positive core (equipment side) |
Insulation Resistance (MOhm) |
2000 |
Contact Resistance (ohm) |
3 mΩ or less |
Import Country |
Direct Import from Japan |
Shell Size |
20 |
Connector Shape |
Plug |
Conductor Cross Section Area |
1.25 mm² |
Material (Shell) / Finish |
Zinc alloy/satin chrome plating |
Suitable Cable Outer Dia. (Φmm) |
10.0 to 12.5 |
