| Model No | NWPC-303-PM15 |
| Type | Round type |

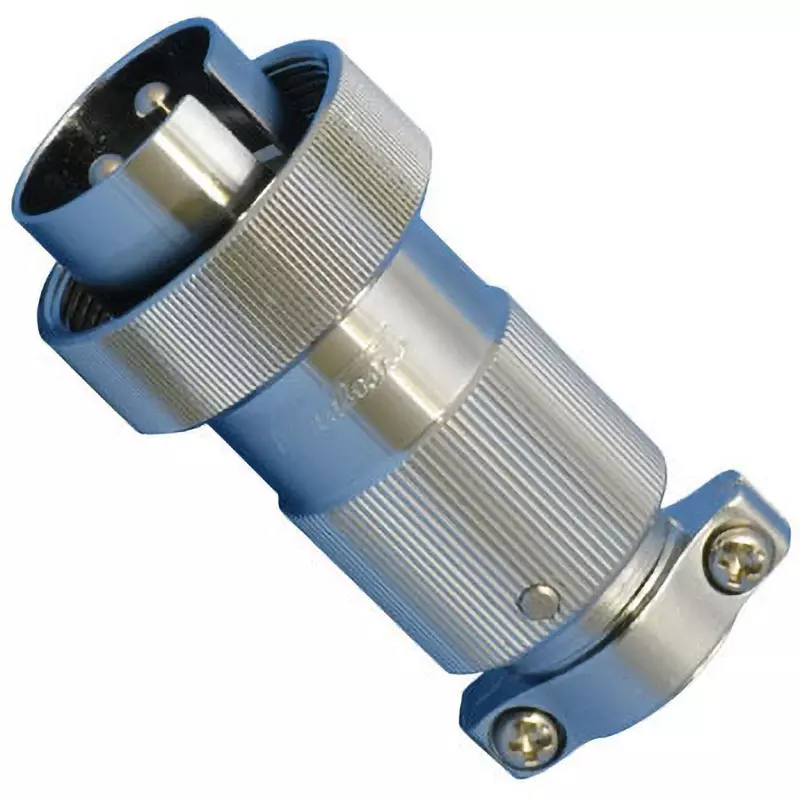

| Type of Product | Connector Straight Plug |
| Rated Current (A) | 15 |
Model No |
NWPC-303-PM15 |
Type |
Round type |
Type of Product |
Connector Straight Plug |
Rated Current (A) |
15 |
Country of Origin |
Japan |
Shape |
Straight |
Contact Material |
Copper alloy / nickel plating |
No. of Pole |
3 |
Monotaro ID |
39277086 |
Connection Type |
Screw |
Contact Type |
Male |
Operating Temperature Range |
-40 to +85℃ |
Name of Manufacturer/Packer/Importer |
Nanaboshi Scientific Research Institute Co., Ltd. |
Rated Voltage (V) |
250 |
Insulator Material |
Synthetic resin |
Specifications |
Reverse core (power supply side) |
Insulation Resistance (MOhm) |
2000 |
Contact Resistance (ohm) |
3 mΩ or less |
Import Country |
Direct Import from Japan |
Shell Size |
30 |
Material (Gasket) |
Synthetic rubber |
Connector Shape |
Plug |
Conductor Cross Section Area |
2 mm² |
Material (Shell) / Finish |
Brass / chrome plating |
Suitable Cable Outer Dia. (Φmm) |
14.1 to 16.4 |
