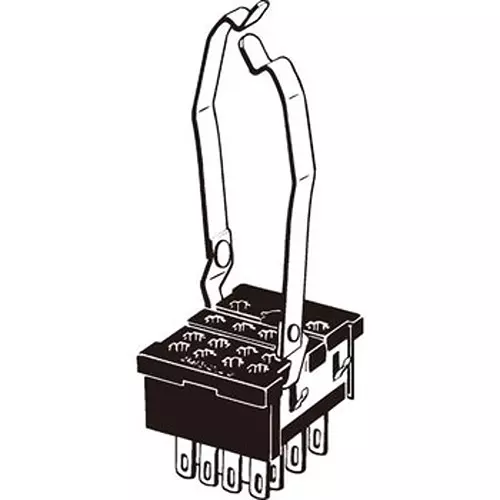

| Model No | PY14-Y3 |
| Type | General relay |
| No. Of Pin | 14 |
| Type of Product | Square Socket |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
PY14-Y3 |
Type |
General relay |
No. Of Pin |
14 |
Type of Product |
Square Socket |
Country of Origin |
Japan |
Shape |
PY (back side connection) |
Monotaro ID |
46661614 |
Connection Type |
Back |
Operating Temperature Range |
-55 to 70℃ |
Pack of |
1 Pcs |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Terminal Shape |
Solder terminal |
Mass (g) |
About 11 |
Withstand voltage (V / min) |
Between same polarity contact terminals AC1500, between different polarity contact terminals AC1500, between coil contact terminals AC1500 |
Operation Ambient Temperature (°C) |
-55 to 70 |
Specifications |
●Applicable relay: MY4Z□-CBG-CR ●Holding metal fittings: Included |
Insulation Resistance (MOhm) |
o Ver 100 |
Rated Carrying Current (A) |
3 |
Classification |
Back connection socket |
Terminal Length |
7.7 mm |
Operating Ambient Humidity |
5 to 85% RH |
Import Country |
Direct Import from Japan |
