Ships within 25 days
View
View
View
View
| Model No | XR2B-2801-N |
| Type | Gold plating 0.75 μm |
| Type of Product | IC Socket |
| Rated Current (A) | 1 |
Model No |
XR2B-2801-N |
Type |
Gold plating 0.75 μm |
Type of Product |
IC Socket |
Rated Current (A) |
1 |
Part No |
64-3403-51 |
Country of Origin |
Japan |
Contact Material |
Beryllium copper / nickel base Gold plating |
No. of Pole |
28 |
Monotaro ID |
39105866 |
Operating Temperature Range |
-55~+125℃ (no freezing at low temperatures) |
Pack of |
1 Pcs |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Terminal Shape |
Dip terminal |
Rated Voltage (V) |
AC300 |

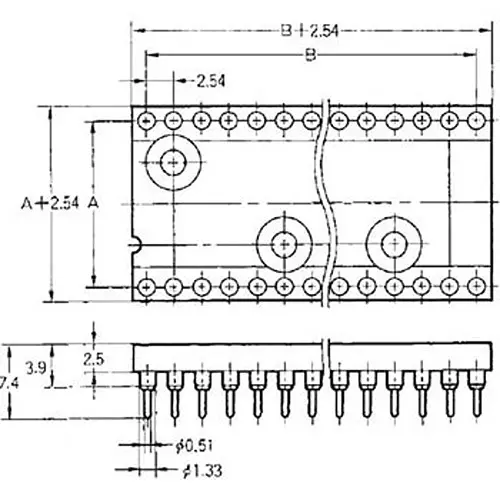

Dimension A (Φmm) |
15.24 |
Withstand voltage (V / min) |
AC1000 (leakage current 1mA or less) |
Insulation Resistance (MOhm) |
10³ mohm or more (at 500 V DC) |
Contact Resistance (ohm) |
20 or less (20mV or less, 100mA or less) |
Insertion / Removal Durability (Times) |
100 |
Dimension B (Φmm) |
33.020000000000003 |
Single Removal Force |
0.64 N or More (with Φ0.432 test gauge) |
Sleeve Material |
Brass / nickel base Gold flash plating |
Plate Material |
PBT resin (UL94V-0) / black |
Single insertion force |
3.92 N or less (with Φ0.432 test gauge) |
Carrier Material |
Aluminum |
Import Country |
Direct Import from Japan |
