| Type of Product | D-Sub Connector Socket |
| Rated Current (A) | 5 |
| Standard | RoHS directive |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
D-Sub Connector Socket |
Rated Current (A) |
5 |
Standard |
RoHS directive |
Country of Origin |
Japan |

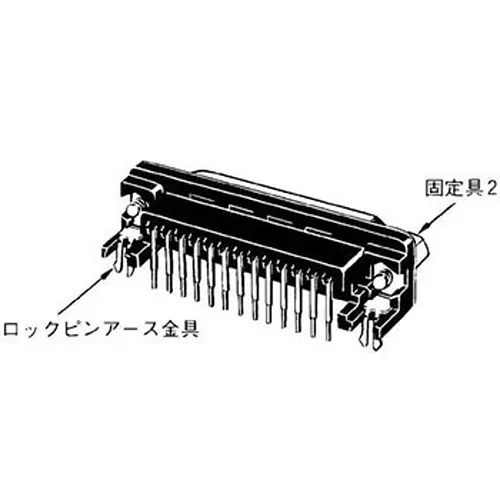

Shape |
Socket Dip L-type terminal |
No. of Pole |
37-Pole |
Included Components |
Fixture (XM2Z-0011 (Millimetric screw M2.6x0.45)), Lock pin grounding bracket |
Housing Material |
Glass-filled PBT resin (UL94V-0) / Black |
Monotaro ID |
8594485 |
Withstand Voltage |
1000 VAC, 1 min (leakage current 1 mA or less) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Rated Voltage (V) |
AC300 |

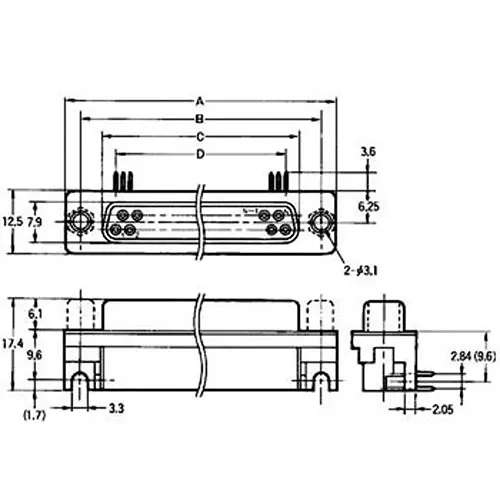

Dimension A (Φmm) |
φ69.3 mm |
Operation Ambient Temperature (°C) |
-55 to +105 (no freezing in the bass) |
Manufacturer Part Number |
XM3B-3722-112 |
Insulation Resistance (MOhm) |
10³ or more (at 500 VDC) |
Total Insertion Force |
37x3.33N or less |
Contact Resistance (ohm) |
15 or less (20mV or less, 100mA or less) |
Shielding Effect (Electric Field Method) |
Panel mounting: 25 dB or more (30 to 900 MHz)<br> Board mounting: 20 dB or more (30 to 300 MHz) |
Dimension F (Φmm) |
φ2.76 mm |
Dimension B (Φmm) |
φ63.5 mm |
Dimension E (Φmm) |
φ46.92 mm |
Material (Contact Connection Part) |
Phosphor bronze |
Dimension C |
54.8 mm |
Dimension d |
49.68 mm |
Import Country |
Direct Import from Japan |
