Model No
No. of Pole
View
View
View
View
| Model No | XR2A-1815 |
| Type | Open Frame Type |

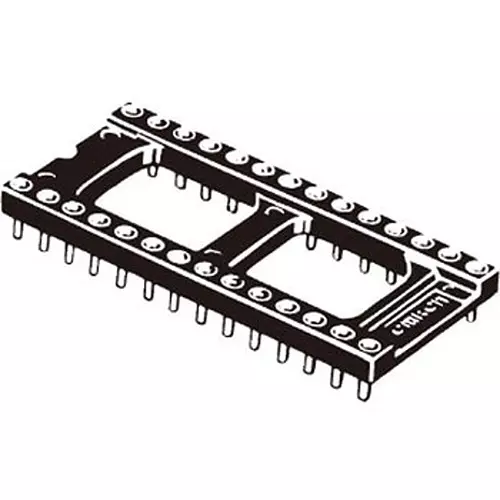

| Type of Product | IC Socket Open Frame Type |
| Rated Current (A) | 1 |
Model No |
XR2A-1815 |
Type |
Open Frame Type |
Type of Product |
IC Socket Open Frame Type |
Rated Current (A) |
1 |
Standard |
UL standard (File No.E103202) |
Suitable For |
IC: Flat lead (thickness 0.29 ± 0.09mm × width 0.46 ± 0.08mm: maximum diagonal dimension 0.52mm), round lead (maximum Φ0.50mm, minimum Φ0.41mm) |
Country of Origin |
Japan |
No. of Pole |
18 Pole |
Monotaro ID |
46596112 |
Withstand Voltage |
1000 VAC, 1 min (leakage current 1 mA or less) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Terminal Shape |
Low Pro Dip Terminal |
Rated Voltage (V) |
AC300 |
Operation Ambient Temperature (°C) |
-55~+125 (no freezing at low temperatures) |
Specifications |
RoHS compliant |
Insulation Resistance (MOhm) |
10 <sup>3</sup> or more (at 500 VDC) |
Contact Resistance (ohm) |
20 or less (20mV or less, 100mA or less) |
Insertion / Removal Durability (Times) |
50 |
Material (Foot Plate) |
Glass-filled PBT resin (UL94V-0) / Black |
Processing (Inner, Contact) |
Nickel base + gold plating 0.25 μm |
Material (Outer Sleeve) |
Brass |
Processing (Outer, Sleeve) |
Nickel base + gold flash plating |
Single Removal Force |
0.64 N or more (with Φ0.432 test gauge) |
Dimension B |
20.32 mm |
Dimension A |
7.62 mm |
Import Country |
Direct Import from Japan |
