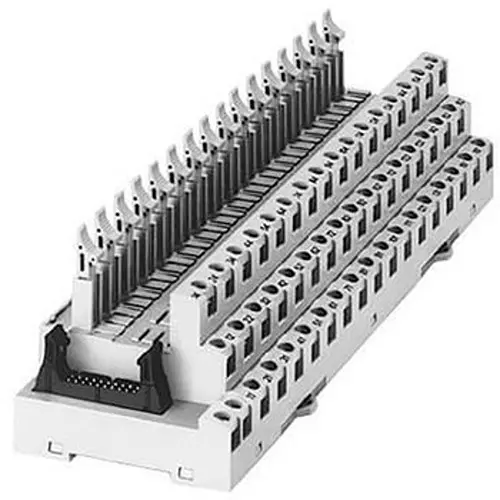

| Model No | G70A-ZOC16-3 DC24 |
| Type of Product | Relay Socket |
| Country of Origin | Japan |
| Monotaro ID | 39069624 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
G70A-ZOC16-3 DC24 |
Type of Product |
Relay Socket |
Country of Origin |
Japan |
Monotaro ID |
39069624 |
Shock Resistance (Malfunction) |
200m/s² |
Pack of |
1 Pcs |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Rated Voltage (V) |
DC24 |
Ambient Humidity (% RH) |
35 to 85 |
Tensile Strength |
Terminal: 49 / min |
Mass (g) |
About 400 |
Withstand voltage (V / min) |
Between connector and output terminal: 4000 AC 50/60Hz Between output terminals: 2000 AC 50/60Hz Between connectors: 250 AC 50/60Hz |
Operation Ambient Temperature (°C) |
0 to +55 (with no icing or condensation) |
Specifications |
Coil surge absorber: Diode (1A, 400V) Reverse connection prevention diode (2A, reverse withstand voltage 40V) |
Insulation Resistance (MOhm) |
(Terminal block) 1000 (250 / 500 V mega) |
Classification |
NPN compatible (+ co mmon) |
Contact Resistance (ohm) |
10 (Does not include the resistance value of the relay used) |
Vibration |
10 to 61.2 to 10 Single amplitude 0.1 mm (double amplitude 0.2 mm) 61.2 to 150 to 61.2 14.7m / s² |
Strength |
(Mounting) Apply 49N tensile force in each direction for 1 s without damage |
Allowable Current (A) |
(Terminal block) 10 |
Tightening Strength |
(Terminal) 0.59 N.m |
Noise Resistance |
Noise level 2.0kV Pulse width 100ns to 1μs |
Import Country |
Direct Import from Japan |
