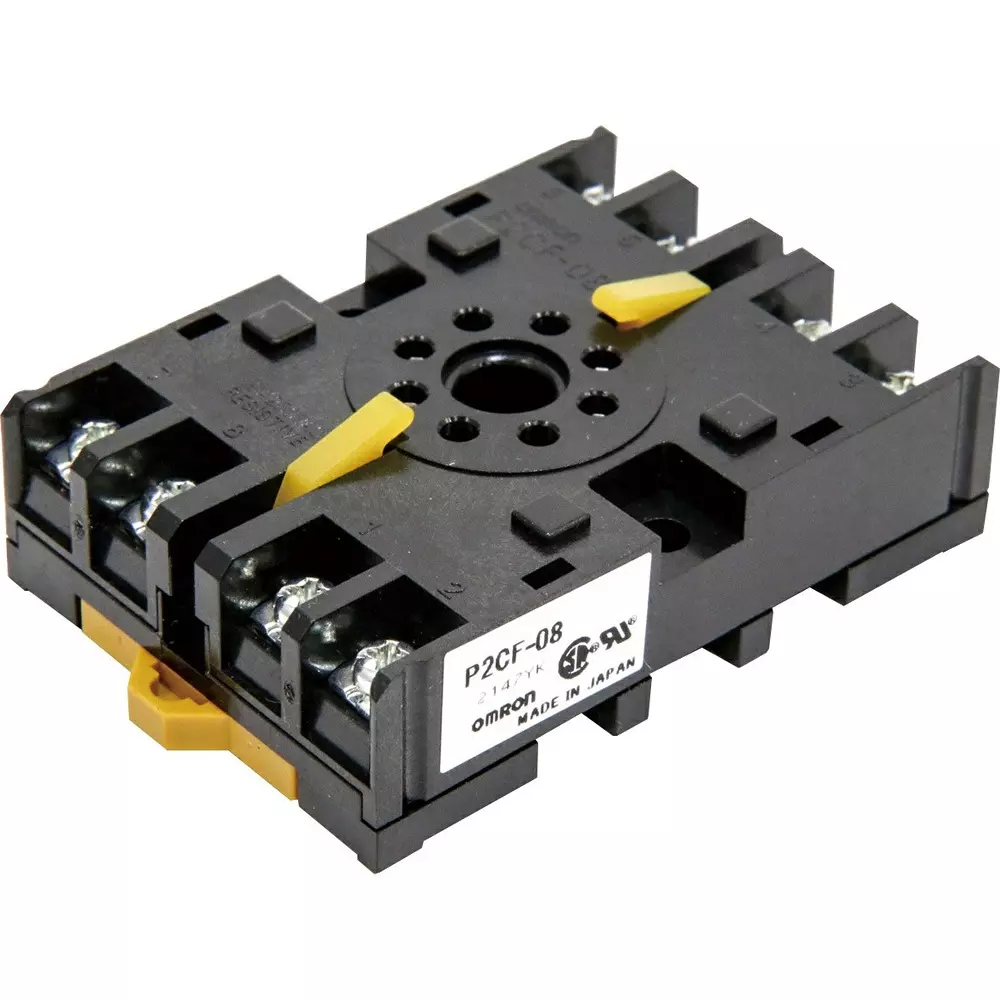

| Model No | P2CF-08 |
| Type | Round socket |
| No. Of Pin | 8 |
| Type of Product | Shared Socket Round Socket |
Model No |
P2CF-08 |
Type |
Round socket |
No. Of Pin |
8 |
Type of Product |
Shared Socket Round Socket |
Country of Origin |
Japan |
Shape |
P2CF (surface connection) |
No. of Pole |
8-Pole |
Monotaro ID |
6299422 |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Mass (g) |
About 55 |
Compatible Models |
[Timer] H3CR-A8 □, H3CR-F8 □, H3CR-G8 □, H3CR-H8 □, [Counter] H7CZ-L8 □, H7CN (8 pins), [Temperature controller] E5CS (8 pins) |
Withstand voltage (V / min) |
Between terminals: AC2000 |
Specifications |
No spring washer |
Insulation Resistance (MOhm) |
1000 or more (Measure the same part as the withstand voltage with a DC500V insulation resistance meter) |
Rated Carrying Current (A) |
5 |
With or Without Finger Protection |
None |
Import Country |
Direct Import from Japan |
