| Model No | XG5N-401-U |
| Type of Product | Crimp Socket |
| Rated Current (A) | 3/pole (when using AWG22 wire) 2/pole (when using AWG24 wire) 1/pole (when using AWG26, 28 wire) |
| Part No | 64-3394-77 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
XG5N-401-U |
Type of Product |
Crimp Socket |
Rated Current (A) |
3/pole (when using AWG22 wire) 2/pole (when using AWG24 wire) 1/pole (when using AWG26, 28 wire) |
Part No |
64-3394-77 |
Standard |
RoHS directive, ML standard (MIL-C-83503), UL standard (file No.E103202) |
Country of Origin |
Japan |
Shape |
Socket with lock (set type) |
Contact Material |
(Contact area) Phosphor bronze/nickel base, gold plating (0.15 μm) (Crimp area) Phosphor bronze/nickel base, tin plating (2.0 μm) |
No. of Pole |
40 |
Housing Material |
Glass-filled PBT resin (UL94 V-2) / Black |
Monotaro ID |
39103565 |
Pack of |
1 Pcs |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Rated Voltage (V) |
AC250 |

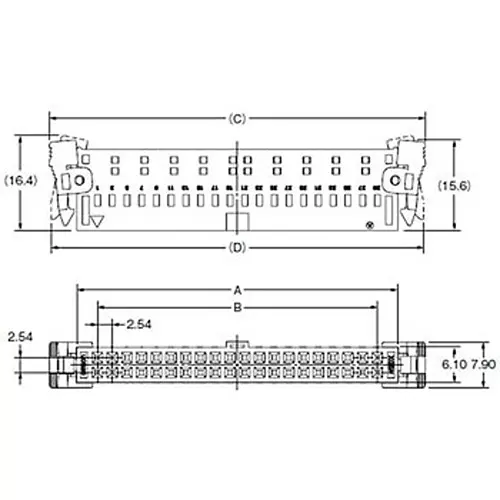

Dimension A (Φmm) |
55.36 |
Withstand voltage (V / min) |
AC500 (leakage current 1mA or less) |
Operation Ambient Temperature (°C) |
-55 to +105 (no freezing at low temperatures) |
Insulation Resistance (MOhm) |
1000 mohm or more (at 500 V DC) |
Total Insertion Force |
Number of contacts insertedx1.96 N or less |
Contact Resistance (ohm) |
20 or less (20mV or less, 100mA or less) |
Insertion / Removal Durability (Times) |
50 |
Dimension B (Φmm) |
48.26 |
Dimension C |
64.9 mm |
Dimension d |
64.3 mm |
Polarity Guide |
1 |
Lever Material |
(Lock lever) POM resin (UL94 HB) / Black |
Import Country |
Direct Import from Japan |
