Ships within 19 days
Model No
No. of Pole
View
View
View
View

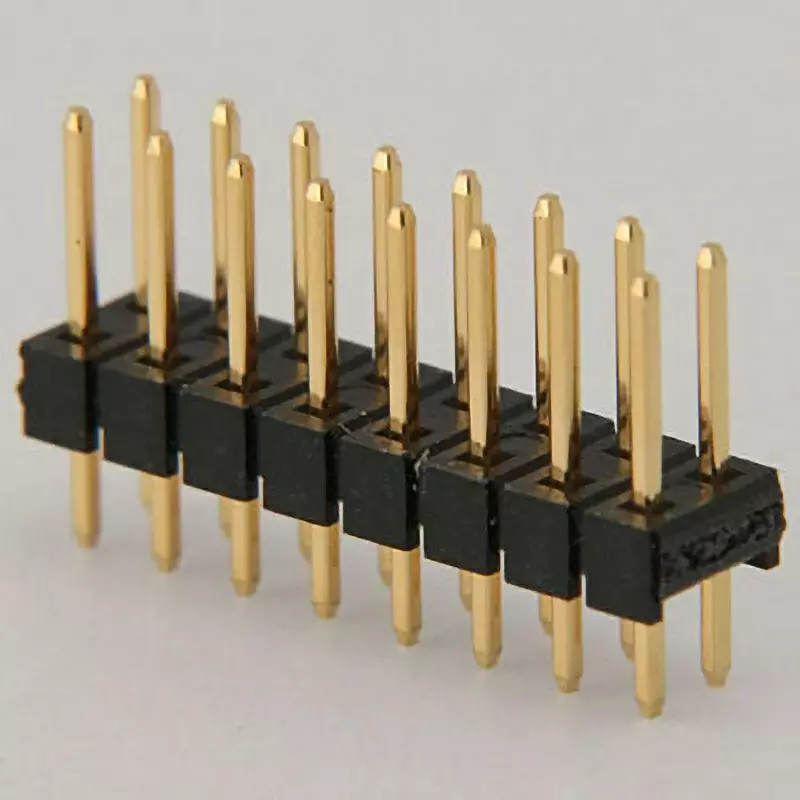

| Model No | XG8W-1631 |
| Type of Product | Original Plug |
| Part No | 64-3396-89 |
| Standard | RoHS compliant, UL standard (File No. E103202) |
Model No |
XG8W-1631 |
Type of Product |
Original Plug |
Part No |
64-3396-89 |
Standard |
RoHS compliant, UL standard (File No. E103202) |
Suitable For |
for MIL-spec connectors |
Country of Origin |
Japan |
No. of Pole |
16 |
Monotaro ID |
8594065 |
Withstand Voltage |
AC650V 1min (Leakage current 1mA or less) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Terminal Shape |
2-row type, straight terminal |
Rated Voltage (V) |
AC 300 |
Dimension A (Φmm) |
φ20.3 mm |
Operation Ambient Temperature (°C) |
-55 to +105 (no freezing at low temperatures) |
Manufacturer Part Number |
XG8W-1631 |
Insulation Resistance (MOhm) |
10³ or more (at 500 VDC) |
Suitable Sockets |
Type XG4M (flat cable connector: socket), type XG4G (board / board connector: socket), type XG5M (loose wire crimping connector), type XG5M-N (loose wire pressure wire connector: 2-row socket) |
Contact Resistance (ohm) |
20 or less (20 mV or less, 100 mA or less) Value when mated with XG5M-N |
Dimension B (Φmm) |
φ17.78 mm |
Material (Contact Connection Part) |
Brass |
Material (Foot Plate) |
Glass-filled PBT resin (UL94V-0) / Black |
Import Country |
Direct Import from Japan |
Processing (Contact Terminal Pressure Connection Part) |
Nickel base tin plating (2.0 μm) |
Processing (Contact Connection Part) |
Nickel base gold plating (0.15 μm) |
Material (Contact Terminal Pressure Connection Part) |
Brass |
