| Torque | 1450 Nm |

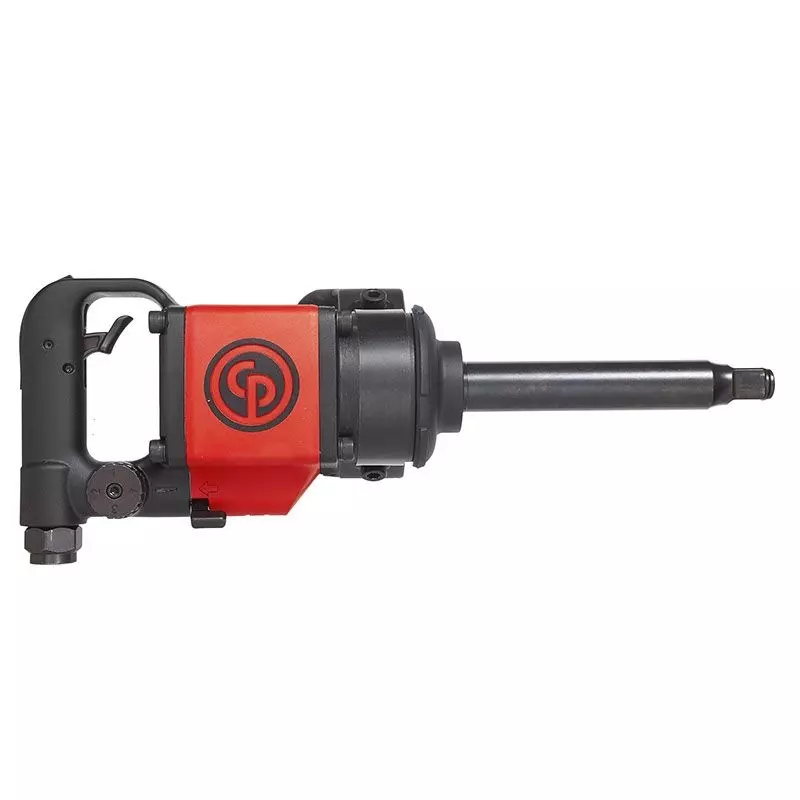

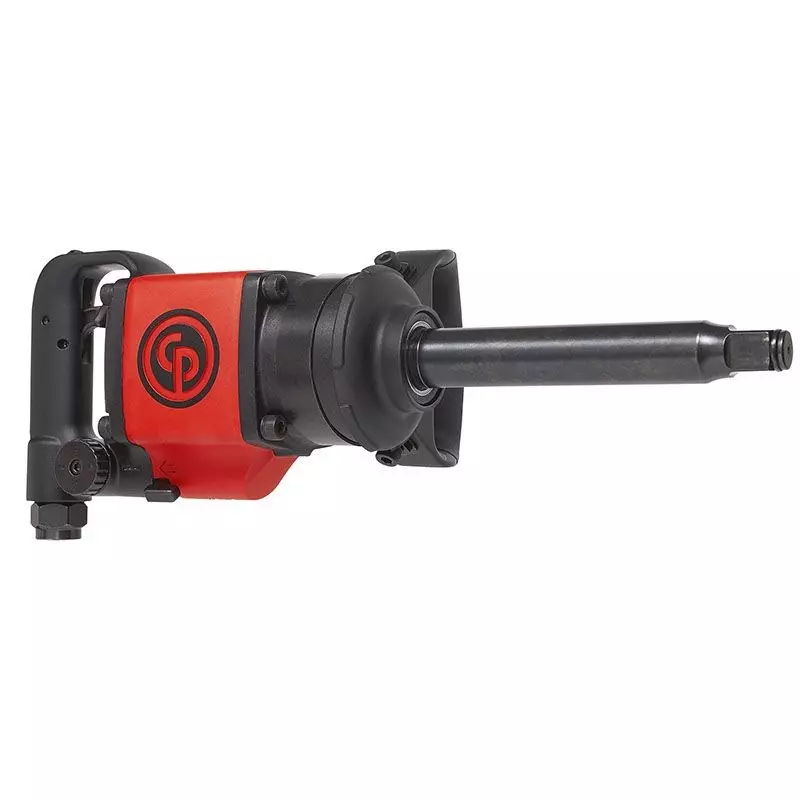

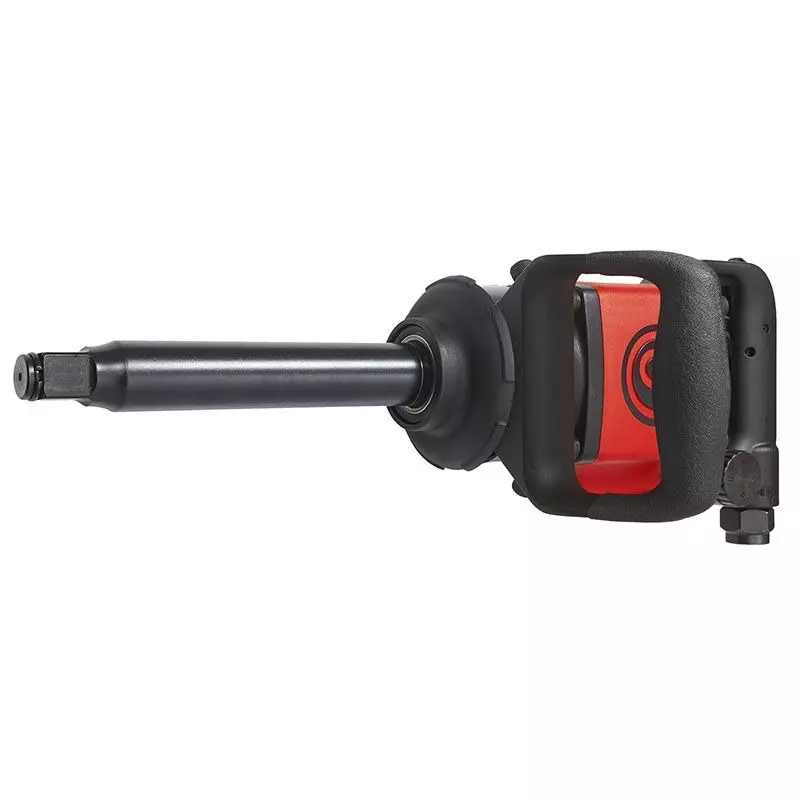

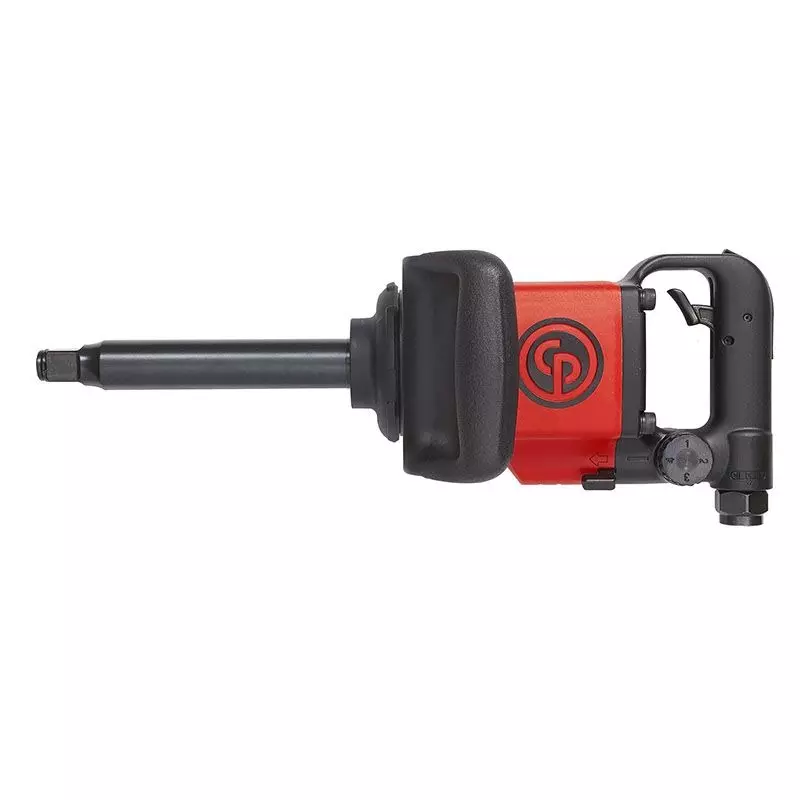

| Type of Product | Air Impact Wrench |
| Speed | 6600 RPM |
| Model No | CP7763D-6 |
Torque |
1450 Nm |
Type of Product |
Air Impact Wrench |
Speed |
6600 RPM |
Model No |
CP7763D-6 |
Sound Power |
109 dB(A) |
Part No |
8941077637 |
Length |
445 mm |
Weight |
7.3 Kg |
Air Consumption |
26 LPS (At Free Speed) |
Maximum Torque |
Reverse: 1760 Nm |
Handle Type |
D Handle |
Sound Pressure |
98 dB(A) |
Air inlet thread size |
1/2 inch (12.7 mm) |
Impact Mechanism |
Twin Hammer |
Square Drive (Inch) |
3/4" |
Working Pressure |
Max. Dynamic Air: 6.3 Bar |
Material |
Composite |
Working Torque |
Forward: 340 Nm to 1450 Nm |
Hose Diameter |
13 mm (Minimum for 5 m Hose Length) |
Drive Size |
3/4 inch (19.0 mm) |
Drive Type |
Square Drive |
Country of Origin |
Taiwan |
Package Contains |
1 x Pneumatic Impact Wrench |
Name of Manufacturer/Packer/Importer |
Atlas Copco |
Starting System |
Trigger |
Uncertainty (K) |
3.3 m/s² |
Side to Center |
45 mm |
Output Retainer Type |
Friction Ring |
Side Handle |
Yes |
