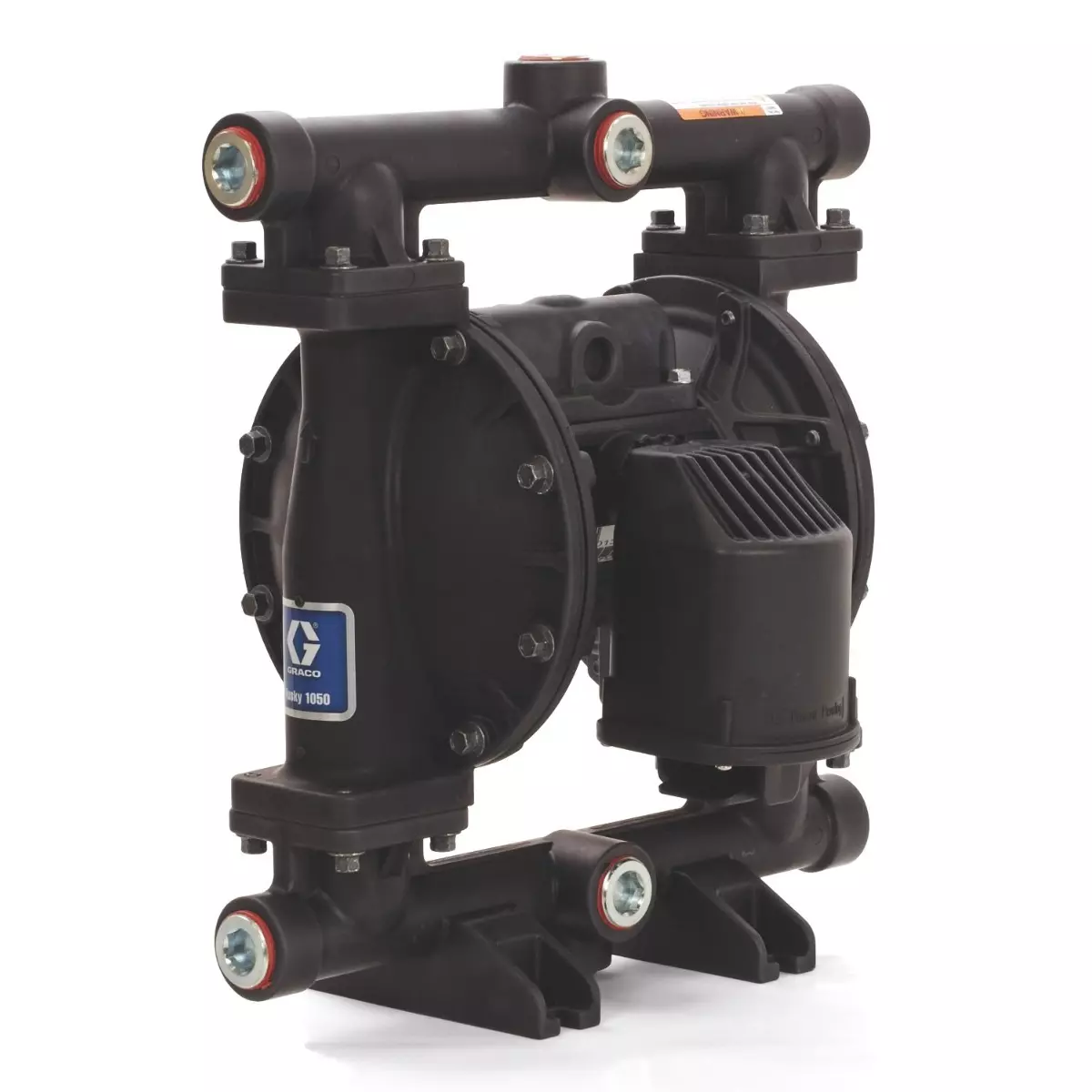

| Type of Product | Air-Operated Double Diaphragm Pump |
| Features | Leak-Free Operation, Low Maintenance, Smooth Changeover DataTrak, Pulse Output |
| Application | Industrial Fluid Transfer |
| Model No | 647016 |
Type of Product |
Air-Operated Double Diaphragm Pump |
Features |
Leak-Free Operation, Low Maintenance, Smooth Changeover DataTrak, Pulse Output |
Application |
Industrial Fluid Transfer |
Model No |
647016 |
Flow Rate |
50 GPM Max. |
Country of Origin |
America |
Maximum Air Pressure |
100 psi |
Diaphragm Material |
TPE (Hytrel) |
Valve Type |
Stall-Free, Low Pulsation Air Valve |
Seat Material |
TPE (Hytrel) |
Air Consumption |
25 SCFM Max. |
Wetted Material |
Aluminum, TPE, Acetal |
Name of Manufacturer/Packer/Importer |
GRACO |
Inlet Size |
12.7 mm (1/2 inch) |
Inlet Thread |
Female (NPT) |
Fluid Inlet Size |
25.4 mm (1 inch) |
Center Section Material |
Aluminum |
Design |
One-Piece Center Section |
Flow Improvement |
20% Higher Flow vs Husky 1040 |
Ball Material |
Acetal |
Compatible Material |
Water, Antifreeze, Fuel |
Air Exhaust Port Size |
19.05 mm (3/4 Inch) |
Usage For |
Industrial, Automotive, Fluid Handling Applications |
Body Material |
Aluminum |
Fluid Outlet Size |
25.4 mm (1 inch) |
Cycle Rate |
280 CPM Max. |
Solid Size |
3 mm (0.125 inch) |
