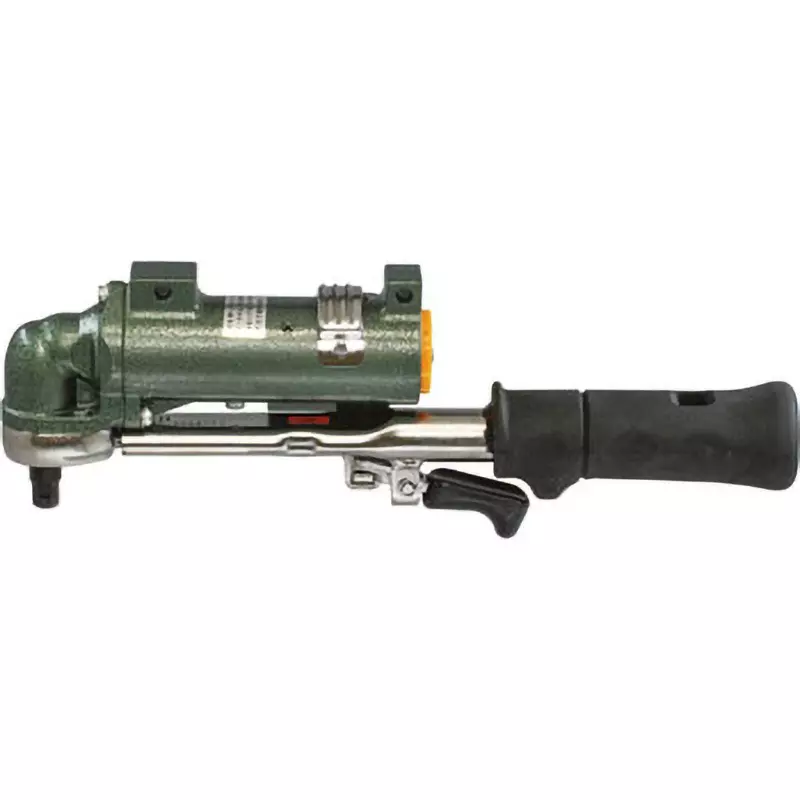

| Type of Product | Semi-Automatic Air Torque |
| Model No | AC180N3 |
| Overall Length (mm) | 487.5 |
| Country of Origin | Japan |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Semi-Automatic Air Torque |
Model No |
AC180N3 |
Overall Length (mm) |
487.5 |
Country of Origin |
Japan |
Minimum Torque |
40 Nm |
Name of Manufacturer/Packer/Importer |
Tohnichi Manufacturing Co., Ltd. |
Drive Type |
12.7 |
Maximum Torque (Nm) |
180 |
Square Drive (mm) |
b：26.4, c：12.2, ΦD：16 |
Monotaro ID |
27916167 |
Rotation Speed at No Load (min-1 rpm) |
800 |
Mass (Kg) |
About 3.3 |
RoHS Directive |
Correspondence |
Import Country |
Direct Import from Japan |
Dimensions of Head (mm) |
20.5 |
Minimum Scale (Nm) |
2 |
Overall Height (mm) |
124.5 |
Suitable Screw |
Normal steel: M12, Hiten: M10 |
Accuracy (%) |
±3 |
Air Pressure (MPa) |
0.6 |
Operation Force at Maximum Torque (N) |
450 |
Specification Class |
Limit switch: None |
Air Flow Rate |
0.31 m³/min |
Effective Length (mm) |
400 |
