| Display | 7seg 5 digits (character height 9 mm) Red, can be turned off |
| Type of Product | DC Ammeter |
| Model No | PSAL-2401U1D0-E1C2 |
| Country of Origin | Japan |
Display |
7seg 5 digits (character height 9 mm) Red, can be turned off |
Type of Product |
DC Ammeter |
Model No |
PSAL-2401U1D0-E1C2 |
Country of Origin |
Japan |
Type |

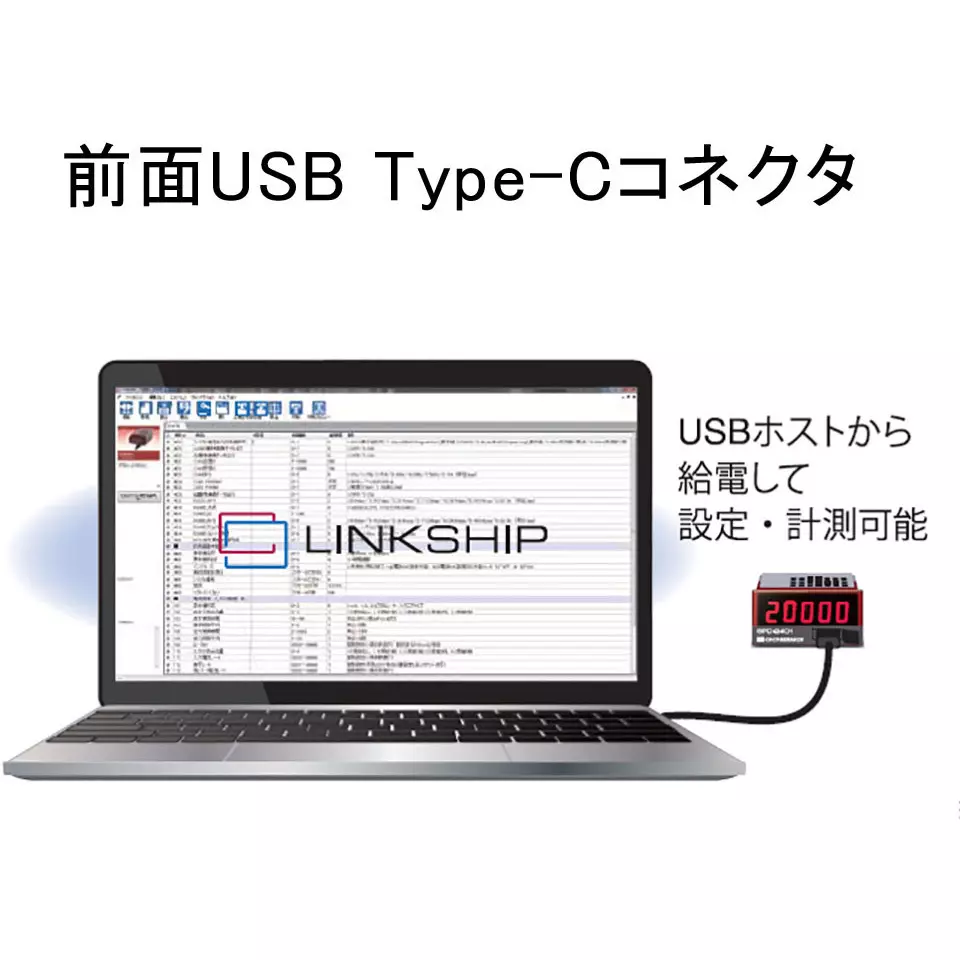

Front USB (TYPE-C) |
No. of Channels |
1CH |
Input |
Hold: ON by short-circuiting to 1-point GND, OFF by opening |
Name of Manufacturer/Packer/Importer |
COCO RESEARCH |
Display Range |
-19999 to 99999, over display: OL, zero display: leading zero suppress |
Input Type |
DC voltage |
Monotaro ID |
75397413 |
Mass (g) |
About 60 |
Operating Ambient Temperature |
-10 to +50 ℃ |
Digit Number of Display |
5 |
Comparative Output |
2 points |
Function |
Low cut: 0 judgment is made when the current value is less than the set value, and the set value storage: Non-volatile memory (EEPROM) |
Analog Output |
0 to 1 V |
Power Supply Voltage (V) |
DC + 7 to +30 (with reverse connection protection, power supply from USB host: 5) |
Specifications |
Low-pass filter: Cutoff frequency 1kHz, Moving average number: 1 to 99, Display moving average number: 1 time (can be set in the range of 1 to 9 times), Isolation: Power supply / current input / other input / output |
Operating Temperature / Humidity Range |
40ms-9999 .9ms, can be set in 1ms increments |
Communication Protocol |
USB2.0 (serial port communication by USB virtual COM 230.4kbps) |
Input Signal |
1 point / DC current signal |
Power Consumption (W) |
3 or less |
Import Country |
Direct Import from Japan |
Suitable Thickness of Workpiece (mm) |
Board: 0.5-9 |
Operation Type |
Delta-sigma integration method |
