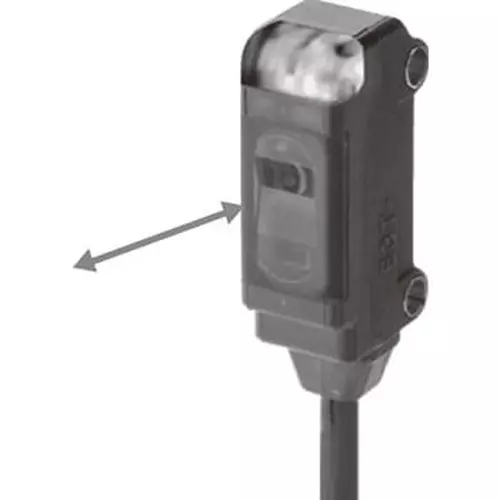

| Model No | E3T-SR41 2M |
| Type of Product | Ultra-Thin Amplifier |
| Monotaro ID | 39051537 |
| Protection Class | IEC standard IP67 |
Model No |
E3T-SR41 2M |
Type of Product |
Ultra-Thin Amplifier |
Monotaro ID |
39051537 |
Protection Class |
IEC standard IP67 |
Power Supply Voltage |
DC12-24 ± 10% Ripple (pp) 10% or less |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Type |
M2 mounting type |
Connection Type |
Cord drawer type |
Cable Length (m) |
2 |
Head Shape |
Square |
Detection Method |
Retroreflective type (without MSR function) |
Standard Sensing Object (mm) |
Opaque body Φ27 or more |
Detection Distance (mm) |
30 to 200 (when using reflector E39-R4) |
Mass (g) |
About 20 |
Pack of |
1 Pcs |
Case Material |
Polybutylene terephthalate |

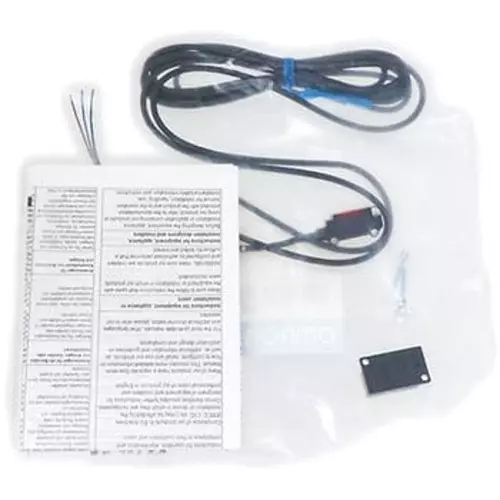

Included Components |
Instruction manual, + screw (M2x14), nut, spring washer, flat washer, reflector (E39-R4) |
Insulation Resistance (MOhm) |
20 mohm or more (at 500 V DC) |
Protection Circuit |
Surge absorption, load short-circuit protection, output reverse connection protection, power supply reverse connection protection, mutual interference prevention function |
Ambient Humidity (% RH) |
Operating: 35 to 85 Storage: 35 to 95 (no condensation) |
Operation Ambient Temperature (°C) |
During use: -25 to 55, During storage: -40 to 70 (but do not allow freezing or condensation) |
Control Output |
(Output type) NPN open collector, (Load current) 0 to 50mA, (Residual voltage) DC1V or less (Load current less than 10mA), DC2V or less (Load current 10 to 50mA) |
Current Consumption (mA) |
DC20 or less |
Vibration Resistance (Destruction) |
10 to 2000Hz Double amplitude 1.5 mm or 300m / s² X, Y, Z directions 0.5h |
Import Country |
Direct Import from Japan |
