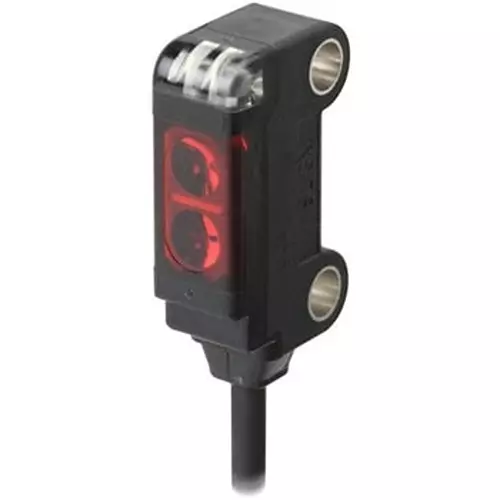

| Model No | E3T-SL23M 2M |
| Type of Product | Ultra-Thin Amplifier |
| Monotaro ID | 39051512 |
| Protection Class | IEC standard IP67 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
E3T-SL23M 2M |
Type of Product |
Ultra-Thin Amplifier |
Monotaro ID |
39051512 |
Protection Class |
IEC standard IP67 |
Power Supply Voltage |
DC12-24 ± 10% Ripple (pp) 10% or less |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Type |
M3 mounting type |
Connection Type |
Cord drawer type |
Cable Length (m) |
2 |
Head Shape |
Square |
Detection Method |
Limited reflection type |
Detection Distance (mm) |
5-30 (white paper 50x50) |
Mass (g) |
Approx. 20 (packed) |
Pack of |
1 Pcs |
Case Material |
Polybutylene terephthalate |
Included Components |
Instruction manual, mounting set screws (M2x14), nuts |
Insulation Resistance (MOhm) |
20 mohm or more (at 500 V DC) |
Protection Circuit |
Power / control output reverse connection protection, load short-circuit protection, mutual interference prevention function |
Ambient Humidity (% RH) |
During operation: 35-85 During storage: 35-95 (however, no condensation) |
Operation Ambient Temperature (°C) |
Operating: -25 to 55, Storage: -40 to 70 (but do not allow freezing or condensation) |
Control Output |
Load power supply voltage 26.4VDC or less, load current 50mA or less, residual voltage 2V or less (load current 10 to 50mA), 1V or less (load current less than 10mA), open collector output type |
Current Consumption (mA) |
20 or less |
Vibration Resistance (Destruction) |
10 to 2000Hz, double amplitude 1.5 mm or 300m / s² X, Y, Z directions 0.5h |
Lens Material |
Modified polyarylate |
Import Country |
Direct Import from Japan |
