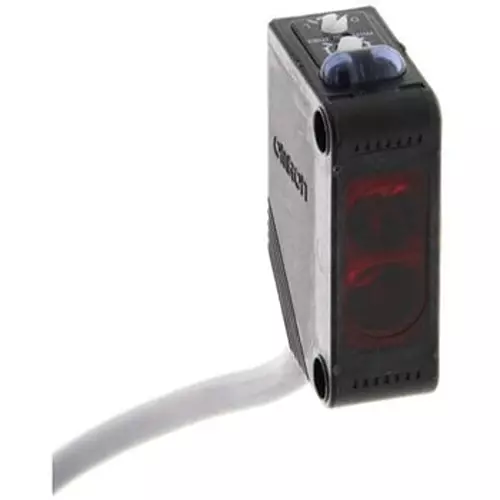

| Model No | E3Z-B82 2M |
| Type of Product | Compact Amplifier |
| Output | PNP |
| Monotaro ID | 39052727 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Model No |
E3Z-B82 2M |
Type of Product |
Compact Amplifier |
Output |
PNP |
Monotaro ID |
39052727 |
Protection Class |
IEC standard IP67 |
Power Supply Voltage |
DC12-24 ± 10% Ripple (pp) 10% or less |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Type |
Built-in amplifier |
Connection Type |
Cord drawer type |
Cable Length (m) |
2 |
Head Shape |
Square |
Detection Method |
Retroreflective type (without MSR function) |
Standard Sensing Object (mm) |
Opaque object Φ75 or more (Standard sensing object: Glass tube Φ15 Thickness 1.1 Length 50, but transmittance 92% or less at wavelength 660nm) |
Detection Distance (mm) |
2000 (when using E39-R1S) |
Mass (g) |
Approx. 65 (packed) |
Pack of |
1 Pcs |
Case Material |
Polybutylene terephthalate |
Insulation Resistance (MOhm) |
20 mohm or more (at 500 V DC) |
Protection Circuit |
Power supply reverse connection protection, output short circuit protection, mutual interference prevention function, output reverse connection protection |
Ambient Humidity (% RH) |
During operation: 35-85 During storage: 35-95 (however, no condensation) |
Operation Ambient Temperature (°C) |
Operating: -25 to 55, some connector type models: -40 to 55 (but do not freeze or condense), Storage: -40 to 70 (but do not freeze or condense) |
Control Output |
Load power supply voltage DC26.4V or less, load current 100mA or less (residual voltage load current less than 10mA: 1V or less, load current 10-100mA: 2V or less), light-ON/light-OFF switch type |
Current Consumption (mA) |
30 or less |
Vibration Resistance (Destruction) |
10~55 Hz, 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
Lens Material |
Modified polyarylate |
Import Country |
Direct Import from Japan |
