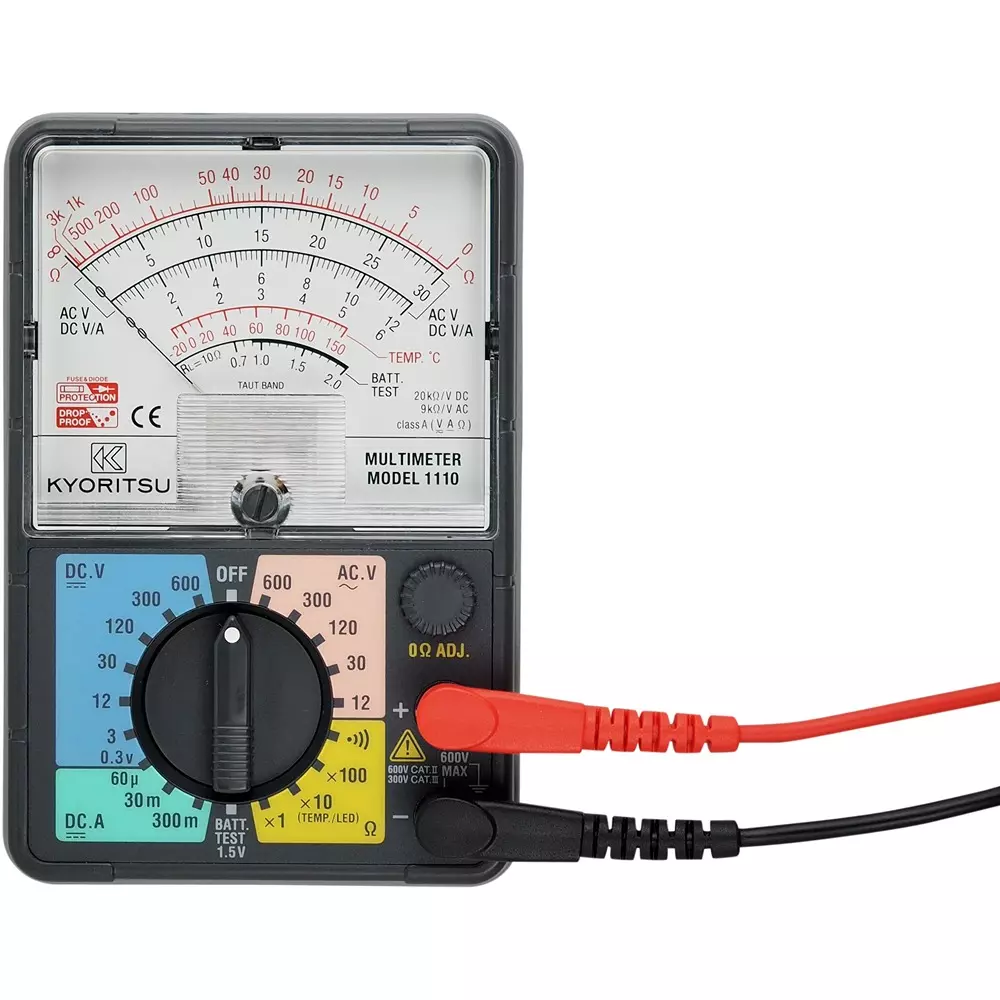

Kyoritsu Analog Multimeter AA batteries R6 (1.5 V) x 2 Power Supply IEC 61010-1 (JIS C 1010-1) CAT III 300 V, MODEL1110

Name: Kyoritsu Analog Multimeter AA batteries R6 (1.5 V) x 2 Power Supply IEC 61010-1 (JIS C 1010-1) CAT III 300 V, MODEL1110
Brand: Kyoritsu
SKU: TES.ANA.546079345
Price: 12979 INR
Availability: InStock

Visit the Kyoritsu Store

EMI starts at ₹1153/month. No Cost EMI available.

Available offers

Get Flat 10% off on your First Orders above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 10% off on your First Order above ₹3,000

View

Get Flat 3% off on First Order above ₹3,000

View

Features

Type of Product	Analog Multimeter
AC Voltage (Volts)	12V (9kΩ / V) ± 4% of maximum scale value 30/120/300/600 (9kΩ / V) ± 3% of maximum scale value
Voltage (Dc)	0.3V (16.7kΩ / V) ± 3% of the maximum scale value 3/12/30/120/300 / 600V (20kΩ / V) ± 3% of the maximum scale value
Model No	MODEL1110

More Kyoritsu Analog Multimeters products More Analog Multimeters products

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

Type of Product	Analog Multimeter
AC Voltage (Volts)	12V (9kΩ / V) ± 4% of maximum scale value 30/120/300/600 (9kΩ / V) ± 3% of maximum scale value
Voltage (Dc)	0.3V (16.7kΩ / V) ± 3% of the maximum scale value 3/12/30/120/300 / 600V (20kΩ / V) ± 3% of the maximum scale value
Model No	MODEL1110
Dimension (mm)	140(L)x94(W)x39(D) mm
Power Supply	AA batteries R6 (1.5V) x 2
DC Current	60μA / 30 / 300mA (terminal voltage 0.3 to 1V) ± 3% of maximum scale value
Country of Origin	Japan
Name of Manufacturer/Packer/Importer	Kyoritsu Electrical Instruments Co., Ltd.
Import Country	Direct Import from Japan
Monotaro ID	10231743
Mass (g)	Approximately 280+ (including batteries)
Resistance (Ω)	3/30 / 300k (median 30 / 300Ω / 3kΩ) ± 3% of scale length

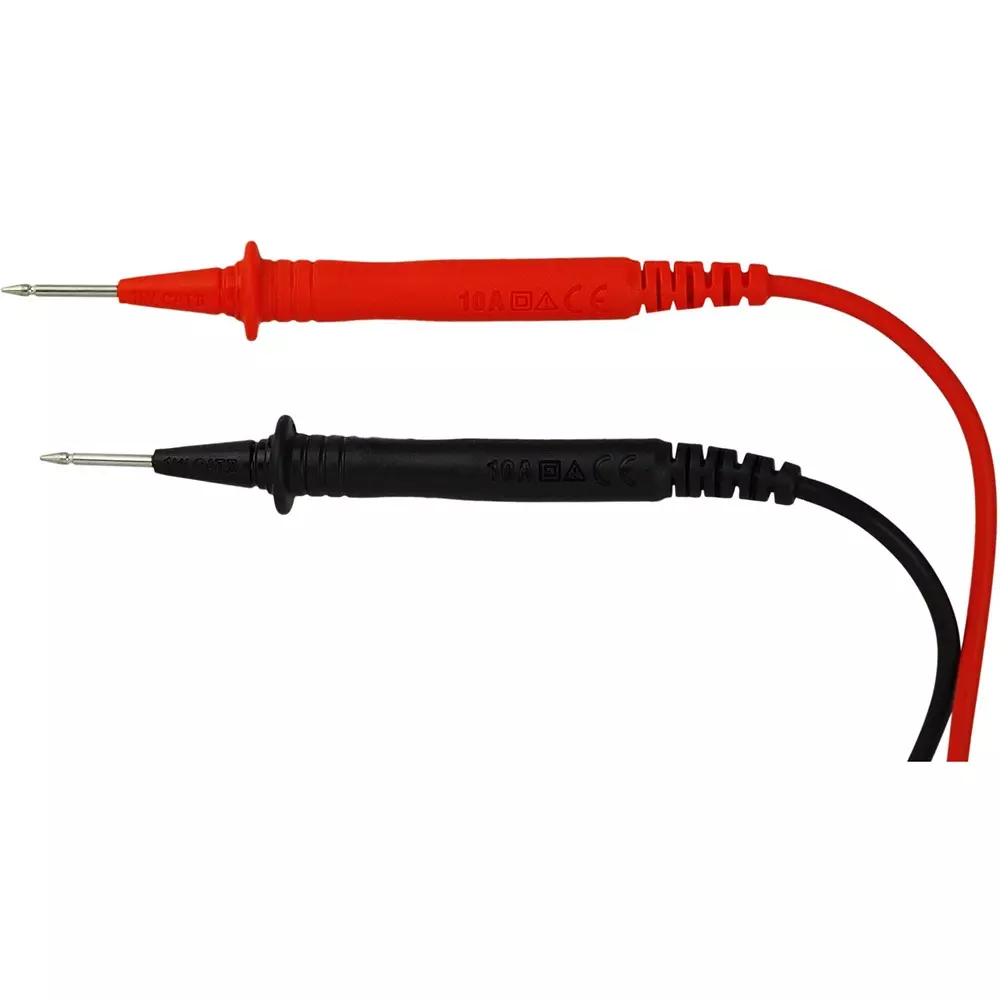

Included Components	7066A (Test lead) (1 piece) 8923 [Fuse (F500mA/600V)] x 2 9103 (Portable case) AA battery R6 x 2 Instruction manual
Width (mm)	94
Battery pack	Yes
Dimension (WxDxH)	94x140x39 mm
Height (mm)	140
Length (mm)	39
Continuity Check	Yes
Battery Test	1.5V (0.7-2V) (load resistance approx. 10Ω) ± 3% of maximum scale value
Temperature (℃)	0 ° C to 100 ° C Scale length ± 3% Range other than the above (-20 to 150 ° C) Scale length ± 4%
Applicable Standard	IEC 61010-1 (JIS C 1010-1) CAT III 300V pollution degree 2 CAT II 600V pollution degree 2 IEC 61010-031 (JIS C 1010-31), IEC 61326-1 JIS C 1202
Withstand Voltage	AC 3700 V / 1 minute
RoHS Directive	Correspondence
LED	Approximately 10mA energized with 0Ω (when battery voltage is 3V)
Trusco Part No.	479-6659
