| Type of Product | Analog Multimeter |
| AC Voltage (Volts) | 10/50/250/500 |
| Voltage (Dc) | 0.25/2.5/10/50/250/500 V |
| Features | Mirror scale used for the scale plate Equipped with basic measurement functions for DC voltage, AC voltage, DC current, and resistance measurement Equipped with a continuity check buzzer Comes standard with a sturdy hard case (C-CP8) that is excellent for storage and portability Equipped with a battery check range Circuit protection with fuses and diodes Detachable plug-in test leads Test lead pin tips (18 mm) are used in consideration of measurements with waterproof outlets The hard case is equipped with a dedicated storage compartment for test pin caps |
Type of Product |
Analog Multimeter |
AC Voltage (Volts) |
10/50/250/500 |
Voltage (Dc) |
0.25/2.5/10/50/250/500 V |
Features |
Mirror scale used for the scale plate Equipped with basic measurement functions for DC voltage, AC voltage, DC current, and resistance measurement Equipped with a continuity check buzzer Comes standard with a sturdy hard case (C-CP8) that is excellent for storage and portability Equipped with a battery check range Circuit protection with fuses and diodes Detachable plug-in test leads Test lead pin tips (18 mm) are used in consideration of measurements with waterproof outlets The hard case is equipped with a dedicated storage compartment for test pin caps |

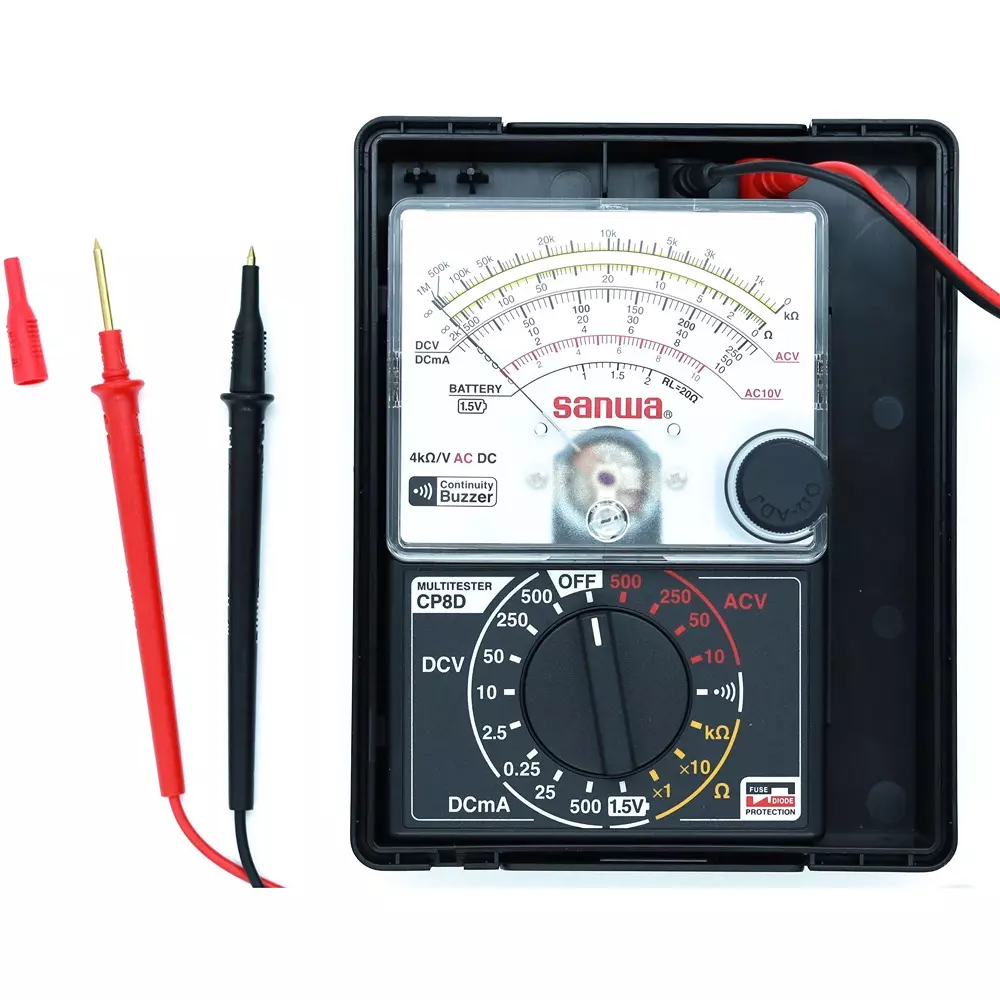

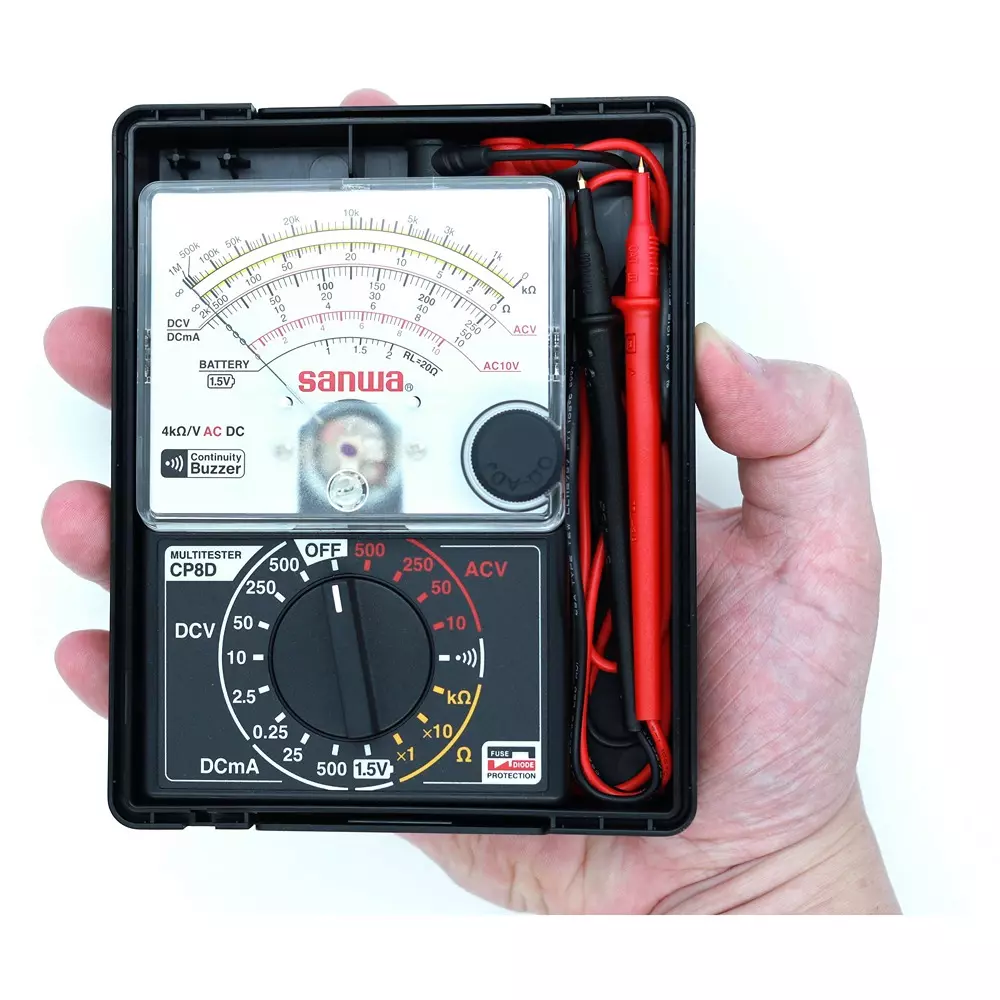

Model No |
CP8D |
Type |
Analog multi tester |
Power Supply |
R6, LR6 (AA size) x 1 |
DC Current |
0.25/25/500 mA |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Sanwa Electric Instrument Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
61566996 |
Mass (g) |
About 170 |
Resistance (Ω) |
2k/20k/1M |
Fuse Type |
F0301 0.5A/250V/IR35A Φ5x20mm Glass tube |
Included Components |

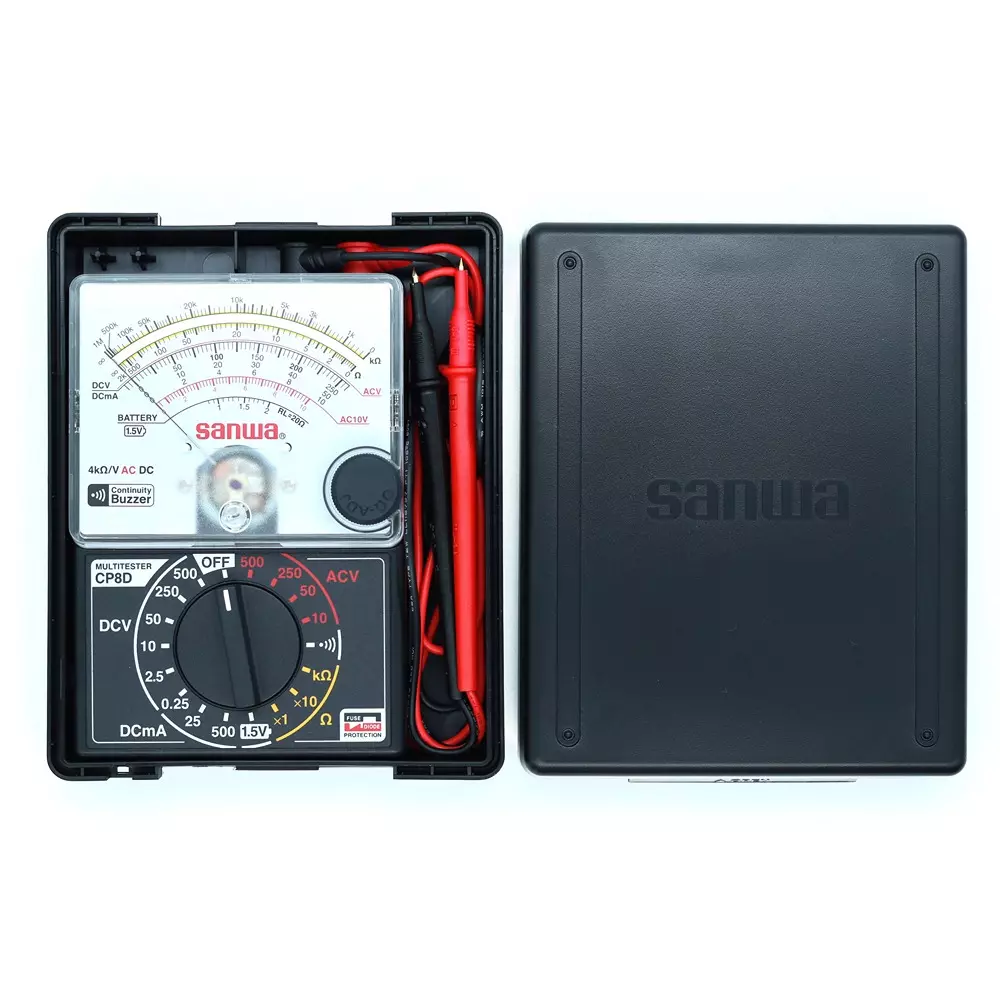

Test lead (TL-38) x 1 set, instruction manual x 1 copy, carrying case (C-CP8) x 1 |
Temperature/Humidity Range for Storage |
23±2℃ 75%RH Position: Horizontal ±5℃ No condensation |
Width (mm) |
82 |
Battery pack |
For 1.5V (RL=20Ω) |
Dimension (WxDxH) |
82x119x26 mm |
Height (mm) |
119 |
Dimensions (H x W x D) (mm) |
119x82x26 |
Operation Environment |
5 to 40°C, 80% RH or less (no condensation) |
Length (mm) |
26 |
Continuity Check |
Buzzer sounds at approximately 100 Ω or less, open voltage approximately 1.5 V |
