Ships within 25 days
View
View
View
View
| Material | High Carbon Steel |
| Outer Diameter D (Φmm) | 85 |
| JIS grade | 0 |
| Basic static load rating Cor (N) | 28800 |
Material |
High Carbon Steel |
Outer Diameter D (Φmm) |
85 |
JIS grade |
0 |
Basic static load rating Cor (N) |
28800 |
Width B (mm) |
19 |
Basic dynamic load rating Cr (N) |
39500 |
Monotaro ID |
68556975 |
Type of Product |
Single Row Angular Contact Ball Bearings Model 7200 |
Model No |
7209 |
Mass (g) |
430 |
Working Point a (mm) |
9.3000000000000007 |
Chamfer Dimension r1 (mm) |
0.6 (minimum) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Chamfer Dimension r (mm) |
1.1 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
7000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
9200 |
Inner Diameter (mm) |
45 |

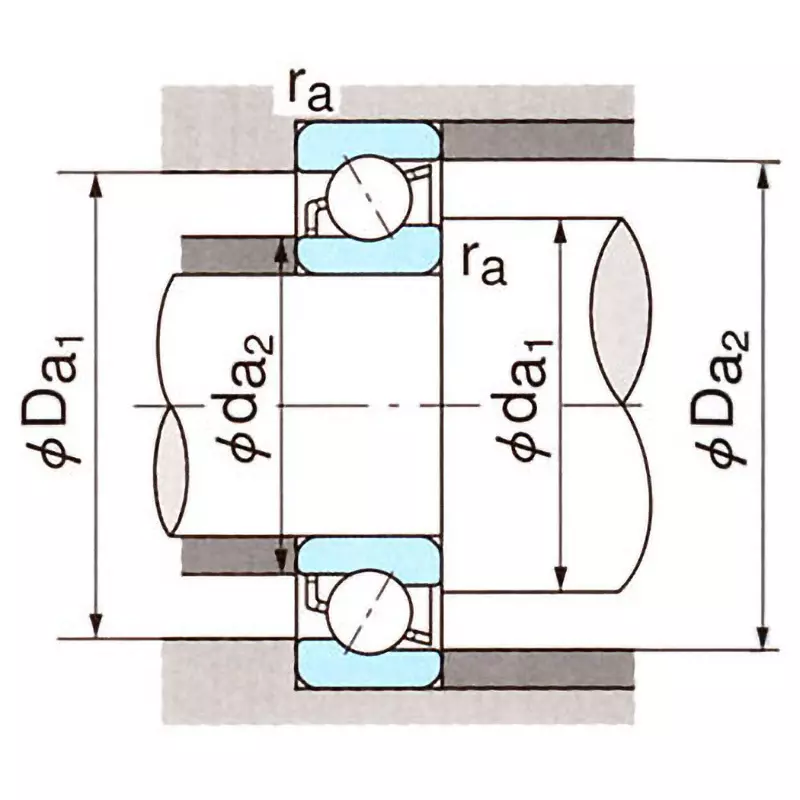

Mounting dimensions (maximum ra1) (mm) |
0.6 |
Mounting Dimension, Minimum da2 (Φmm) |
50 |
Mounting Dimension, Minimum da1 (Φmm) |
52 |
Mounting Dimension, Maximum da2 (Φmm) |
80 |
Mounting Dimension, Maximum ra (mm) |
1 |
Mounting Dimension, Maximum Da1 (Φmm) |
78 |
