Ships within 25 days
View
View
View
View
| Outer ring type | Flat |
| Shield Shape | Open type |
| Race ring shape | Angular Contact Ball Bearing |
| Material | High Carbon Steel |
Outer ring type |
Flat |
Shield Shape |
Open type |
Race ring shape |
Angular Contact Ball Bearing |
Material |
High Carbon Steel |

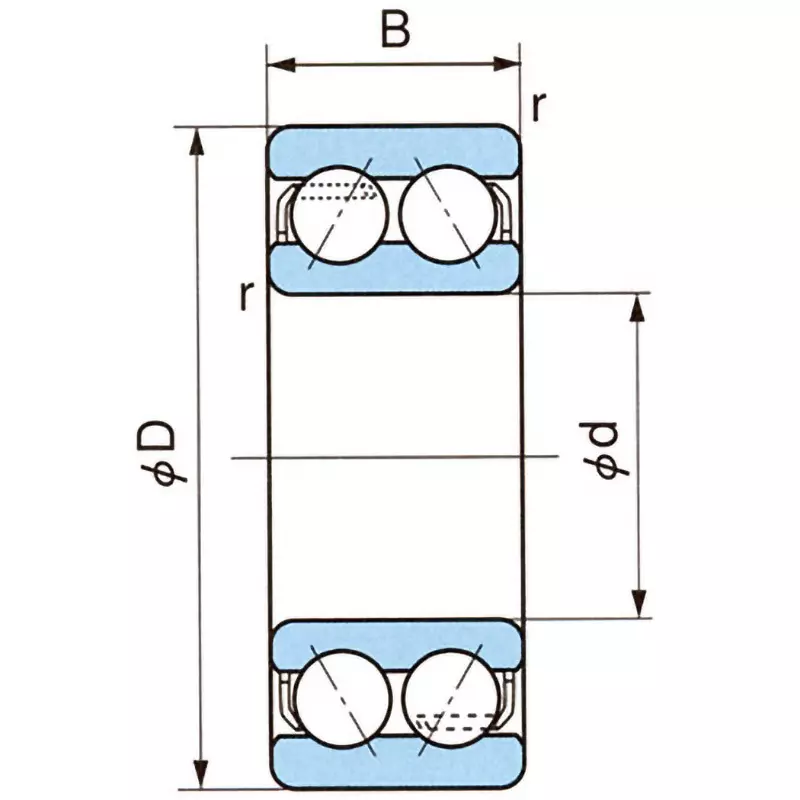

Outer Diameter D (Φmm) |
52 |
JIS grade |
0 |
Basic static load rating Cor (N) |
13300 |
Width B (mm) |
22.2 |
Basic dynamic load rating Cr (N) |
21700 |
Monotaro ID |
7028962 |
Type of Product |
Double Row Angular Contact Ball Bearings |
Model No |
5304 |
Mass (g) |
230 |
Load direction |
Radial |

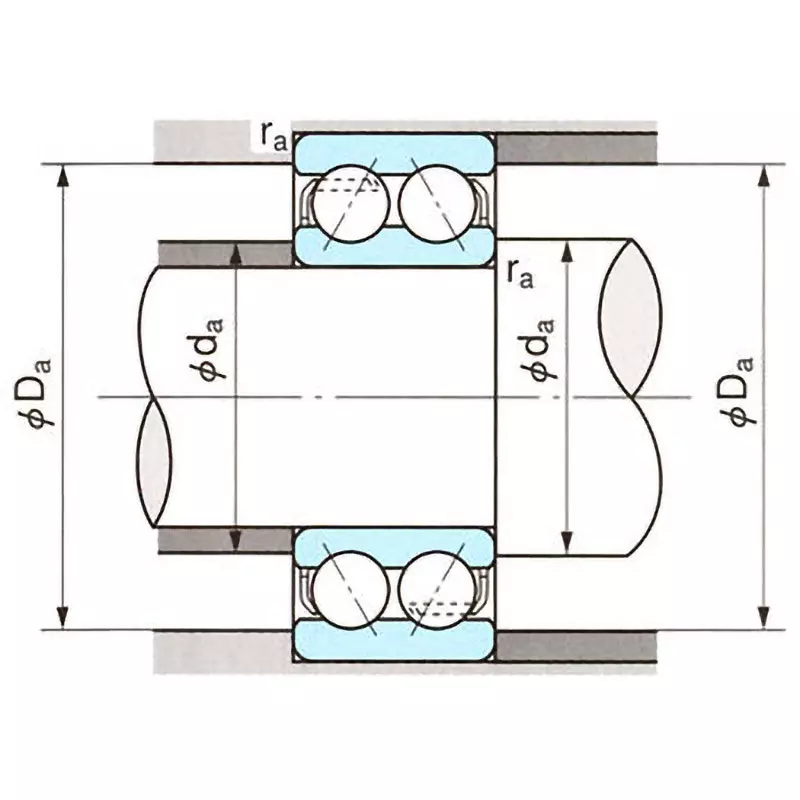

Mounting Dimension, Maximum Da (Φmm) |
45 |
Mounting Dimension, Minimum da (mm) |
27 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Chamfer Dimension r (mm) |
1.1 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
9000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
11000 |
Inner Diameter (mm) |
20 |
Mounting Dimension, Maximum ra (mm) |
1 |
