Ships within 19 days
View
View
View
View

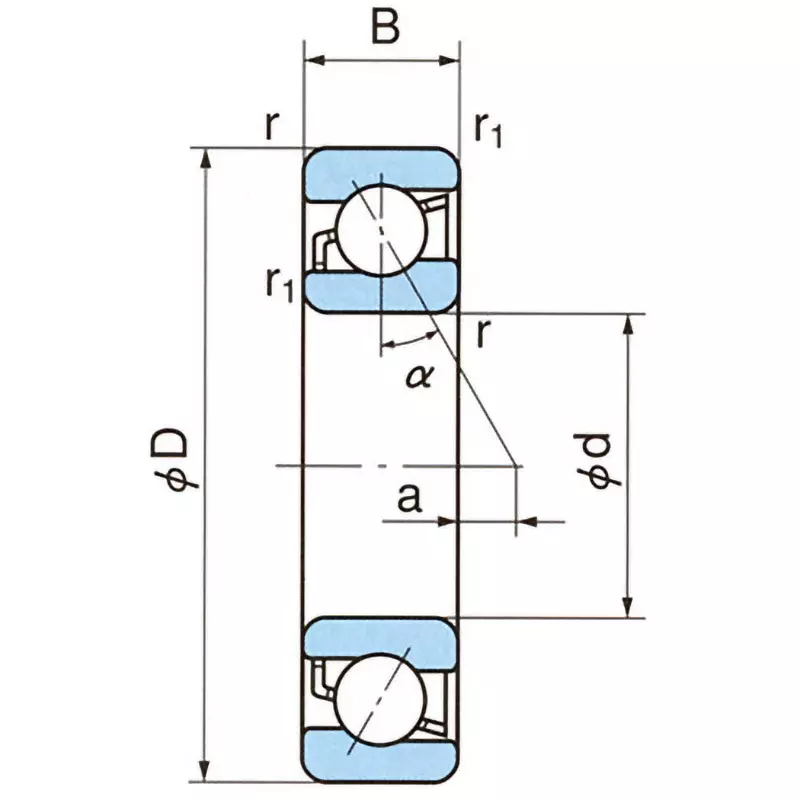

| Material | High Carbon Steel |
| Outer Diameter D (Φmm) | 47 |
| JIS grade | 0 |
| Basic static load rating Cor (N) | 8300 |
Material |
High Carbon Steel |
Outer Diameter D (Φmm) |
47 |
JIS grade |
0 |
Basic static load rating Cor (N) |
8300 |
Width B (mm) |
14 |
Basic dynamic load rating Cr (N) |
14500 |
Monotaro ID |
68555173 |
Type of Product |
Angular Bearings 7000 Series |
Model No |
7204 |
Mass (g) |
110 |
Working Point a (mm) |
2.7 |
Chamfer Dimension r1 (mm) |
0.6 (minimum) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Chamfer Dimension r (mm) |
1 (minimum) |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
13000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
18000 |
Inner Diameter (mm) |
20 |

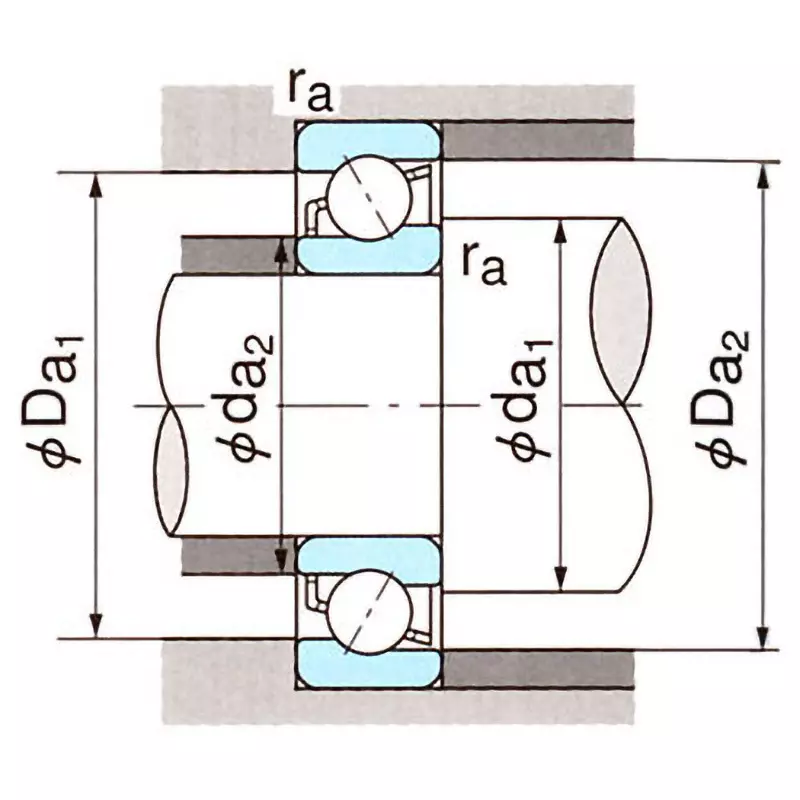

Mounting dimensions (maximum ra1) (mm) |
0.6 |
Mounting Dimension, Minimum da2 (Φmm) |
23 |
Mounting Dimension, Minimum da1 (Φmm) |
26 |
Mounting Dimension, Maximum da2 (Φmm) |
43.4 |
Mounting Dimension, Maximum ra (mm) |
1 |
Mounting Dimension, Maximum Da1 (Φmm) |
41 |
