| Outer ring type | Flat |
| Shield Shape | Open type |
| Race ring shape | Angular Contact Ball Bearing |
| Material | High Carbon Steel |
Outer ring type |
Flat |
Shield Shape |
Open type |
Race ring shape |
Angular Contact Ball Bearing |
Material |
High Carbon Steel |

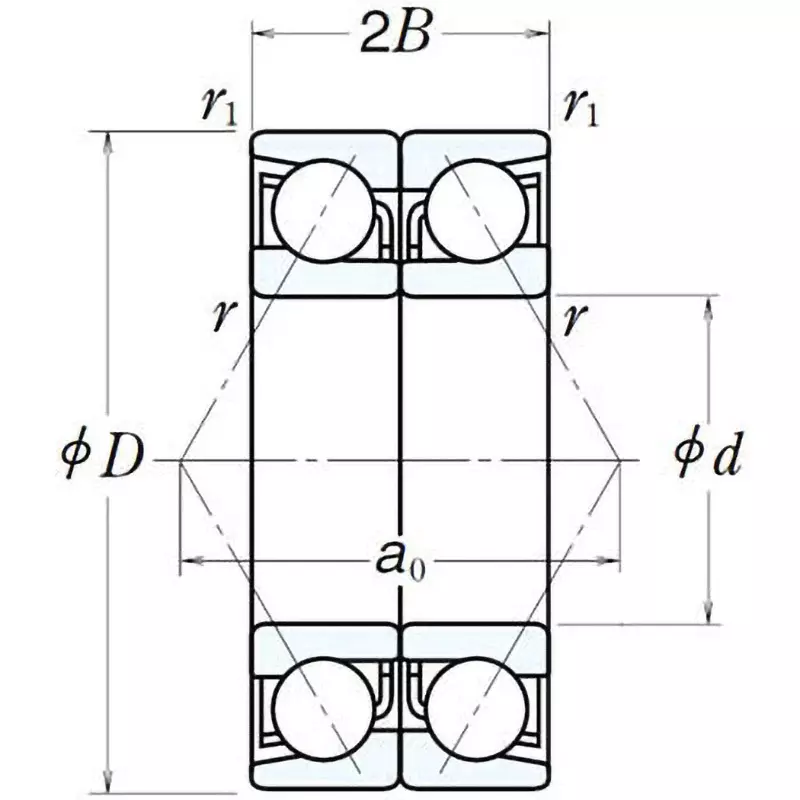

Outer Diameter D (Φmm) |
170 |

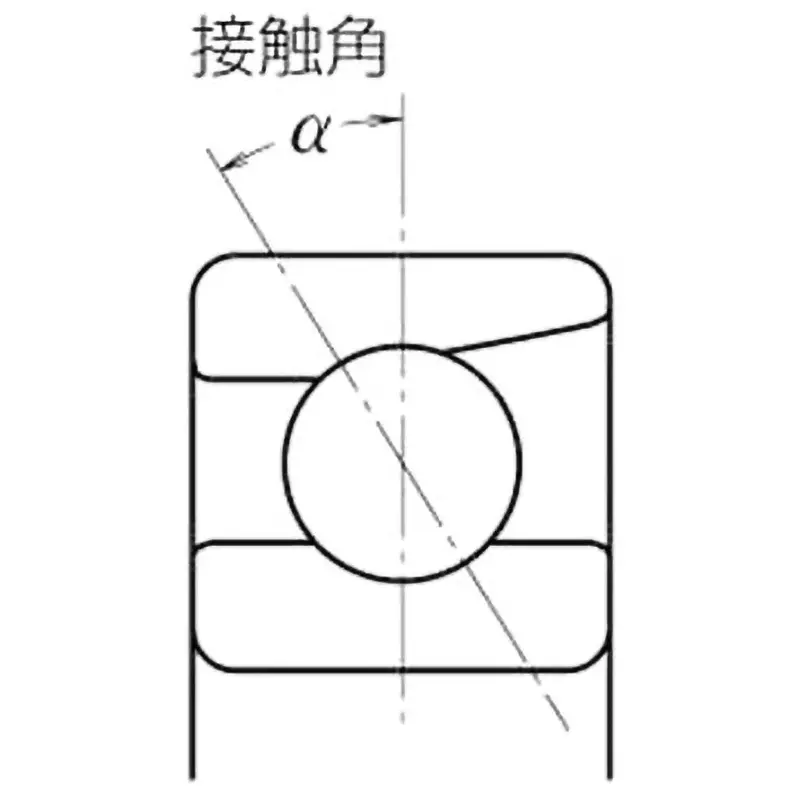

Contact Angle |
40° |
JIS grade |
0 |
Width B (mm) |
32 |
Monotaro ID |
38379573 |
Type of Product |
Single Row Angular Contact Ball Bearings Model 7200 |
Model No |
7219BWDB |
Type |
Rear combination |
Load direction |
Radial |
Working Point a (mm) |
143.19999999999999 |
Basic load rating Cr (N) |
188000 |
Basic load rating Cor (N) |
202000 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
2400 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
3200 |
Inner Diameter (mm) |
95 |
Dimension r1 (mm) |
(Minimum) 1.1 |
Dimension R |
(Minimum) 2.1 mm |
Remark |
Press cage |
Nominal No. |
7219 |
