Ships within 25 days
View
View
View
View

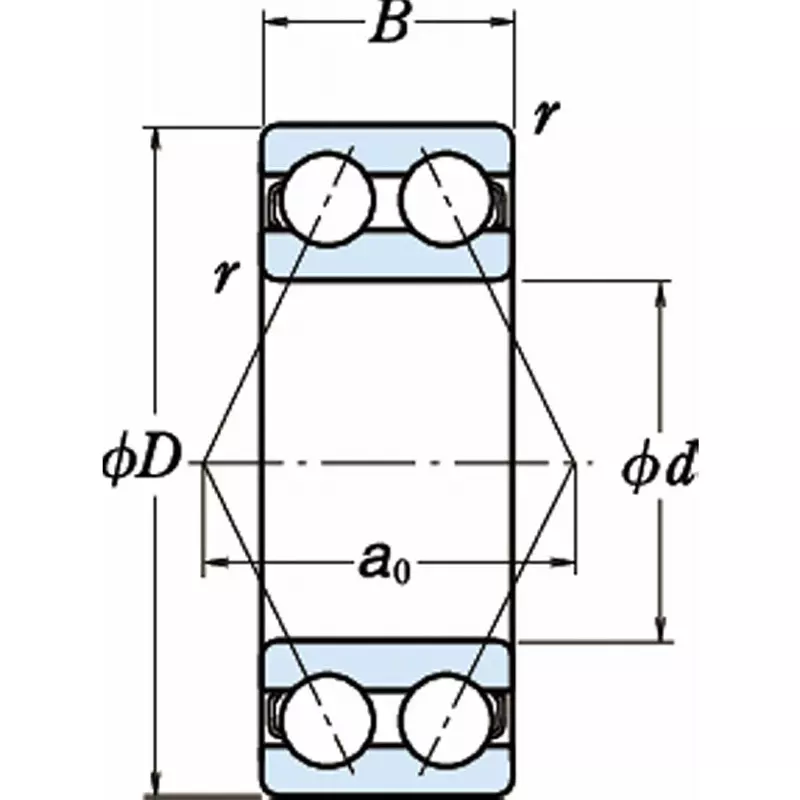

| No. of Track Trains | Double row |
| Race ring shape | Angular Contact Ball Bearing |
| Outer Diameter D (Φmm) | 40 |
| Width B (mm) | 17.5 |
No. of Track Trains |
Double row |
Race ring shape |
Angular Contact Ball Bearing |
Outer Diameter D (Φmm) |
40 |
Width B (mm) |
17.5 |
Monotaro ID |
12427217 |
Type of Product |
Double-Row Angular Contact Ball Bearing |
Model No |
5203 |
Type |
Cylindrical hole |
Working Point Distance a0 (mm) |
20.8 |

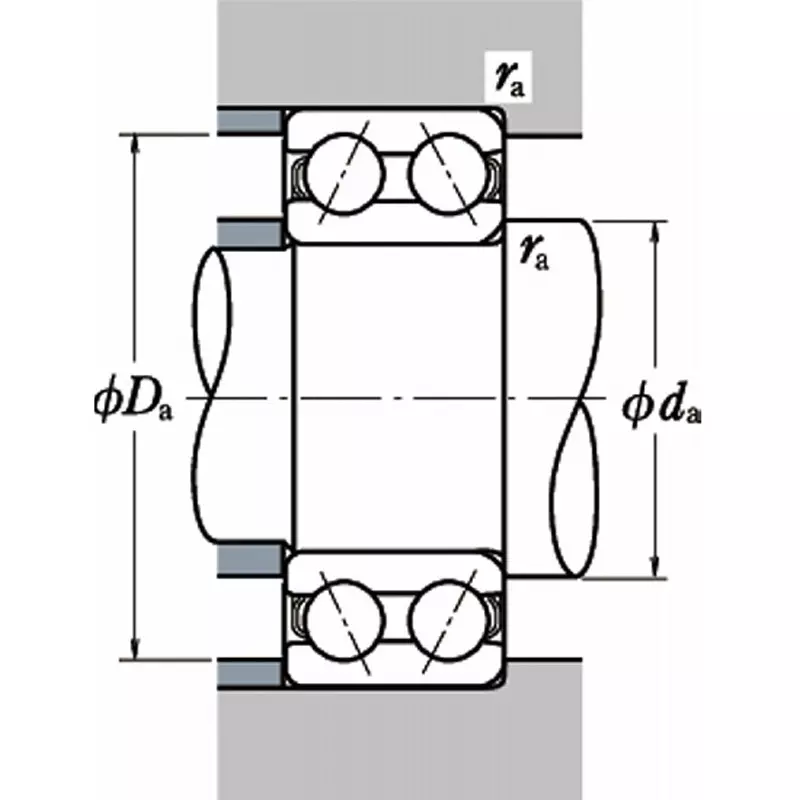

Mounting Dimension, Maximum Da (Φmm) |
35 |
Mounting Dimension, Minimum da (mm) |
22 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
17 |
Dimension R |
[Minimum] 0.6 mm |
Mounting Dimension, Maximum ra (mm) |
0.6 |
Nominal No. |
5203 |
Number |
【NSK】5203 |
Seal / Shield |
Open type |
