Ships within 25 days
View
View
View
View
| Outer ring type | Flat |
| Shield Shape | Open type |
| Race ring shape | Angular Contact Ball Bearing |
| Material | High Carbon Steel |
Outer ring type |
Flat |
Shield Shape |
Open type |
Race ring shape |
Angular Contact Ball Bearing |
Material |
High Carbon Steel |

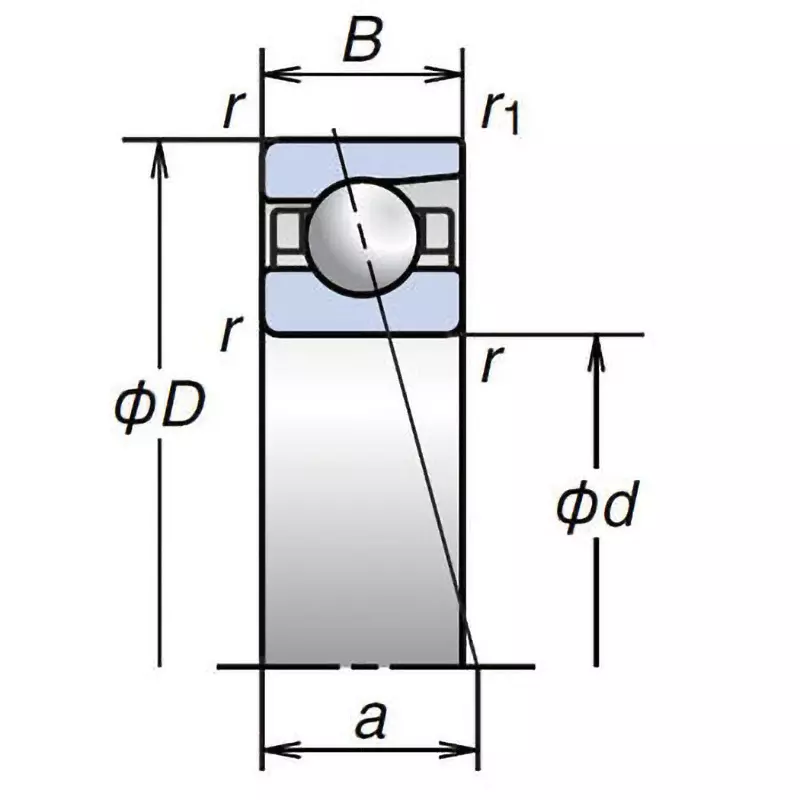

Outer Diameter D (Φmm) |
75 |
Rolling element material |
High Carbon Chromium Bearing Steel |
Contact Angle |
15° |
JIS grade |
5 |
Width B (mm) |
16 |
Monotaro ID |
32998777 |
Type of Product |
Combination Angular Contact Ball Bearings 7000 Series |
Model No |
7009CTYNDBLP5 |
Load direction |
Radial |
Symbol of Internal Clearance Preload |
L light preload |
Working Point a (mm) |
16 |
Chamfer Dimension r1 (mm) |
0.6 (minimum) |
Coefficient fo |
15.4 |
Working Point Distance a0 (mm) |
32.1 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Chamfer Dimension r (mm) |
1.0 (minimum) |
Inner Diameter (mm) |
45 |
