| Outer ring type | Flat |
| No. of Track Trains | Single row |
| Shield Shape | Open type |
| Race ring shape | Angular Contact Ball Bearing |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Outer ring type |
Flat |
No. of Track Trains |
Single row |
Shield Shape |
Open type |
Race ring shape |
Angular Contact Ball Bearing |
Material |
High Carbon Steel |
Outer Diameter D (Φmm) |
32 |
Rolling element material |
High Carbon Chromium Bearing Steel |
Contact Angle |
40° |
JIS grade |
0 |
Width B (mm) |
10 |
Monotaro ID |
9969145 |
Type of Product |

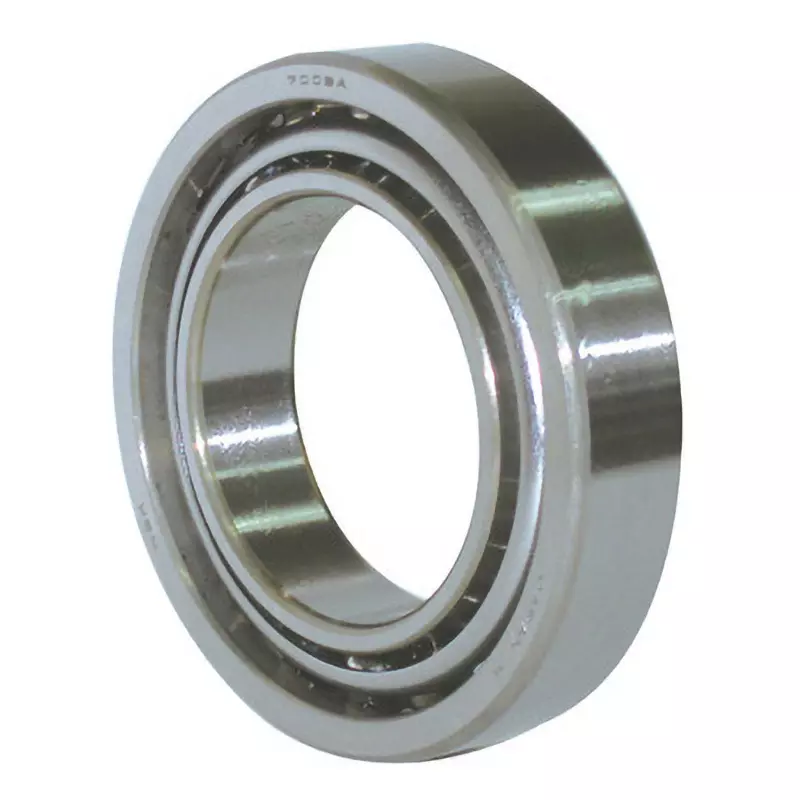

Single Row Angular Contact Ball Bearing 7200 Series |
Model No |
7201BW |
Mass (g) |
38 |
Load direction |
Radial |
Basic load rating Cr (N) |
7450 |
Basic load rating Cor (N) |
3750 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Allowable Speed (min-1[r.p.m]) Grease Lubrication |
18000 |
Allowable Speed (min-1 [r.p.m]) Oil Lubrication |
26000 |
Inner Diameter (mm) |
12 |
Specifications |
Steel punching cage (suffix W) |
