| Race ring shape | Angular Contact Ball Bearing |

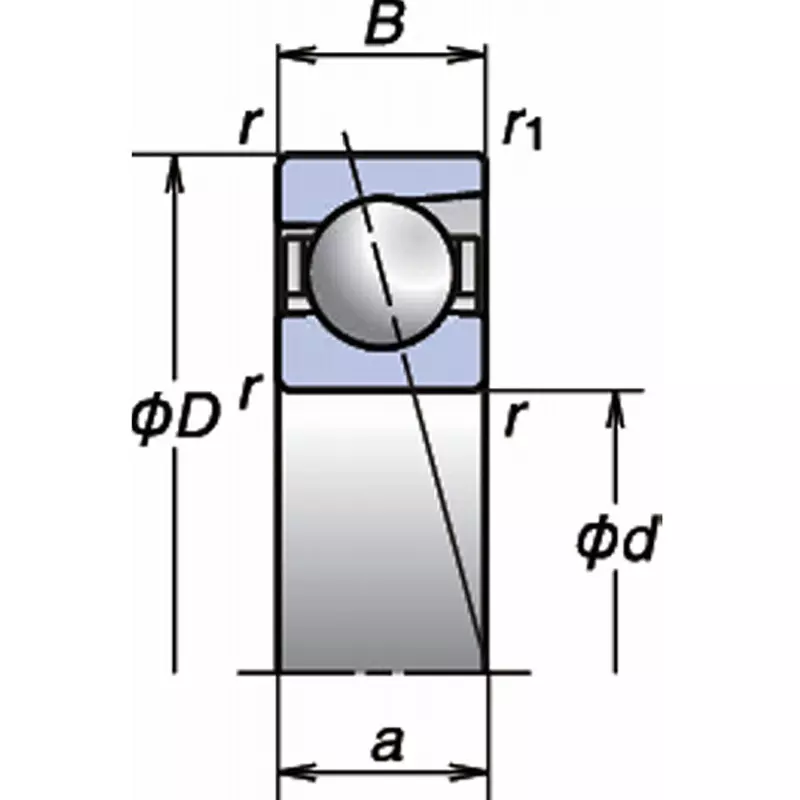

| Outer Diameter D (Φmm) | 47 |

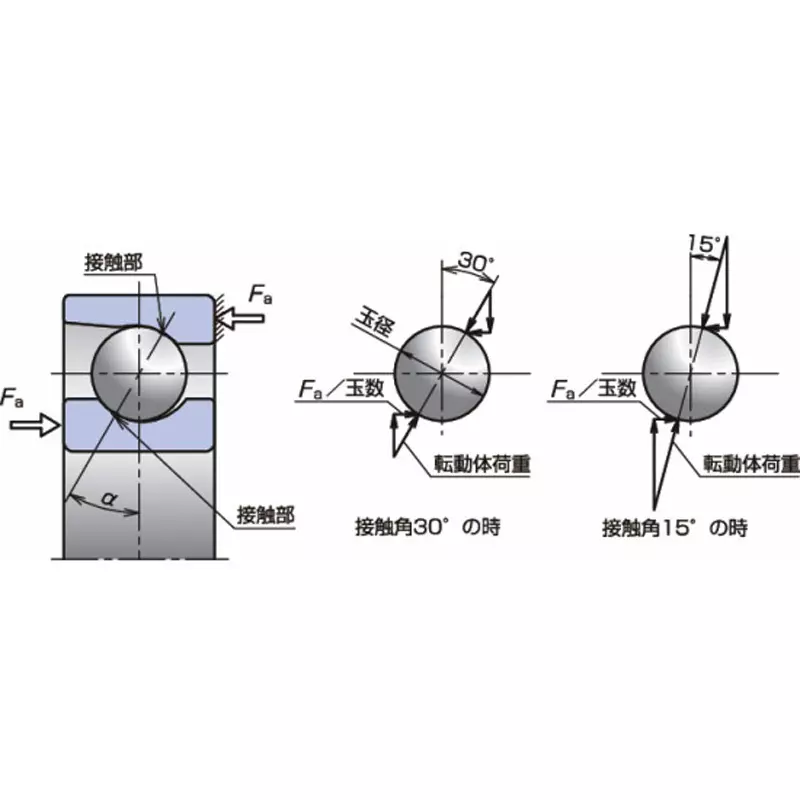

| Contact Angle | 15° |
| Width B (mm) | 14 |
Race ring shape |
Angular Contact Ball Bearing |
Outer Diameter D (Φmm) |
47 |
Contact Angle |
15° |
Width B (mm) |
14 |
Monotaro ID |
12415771 |
Type of Product |
High-Precision Angular Contact Ball Bearing (Universal Combination/Single Type) |
Model No |
7204CTSULP4 |
Type |
Universal combination (single unit) |
Working Point a (mm) |
11.5 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
20 |
Basic Rated Load Cor (kN) |
8.0500000000000007 |
Dimension R |
Minimum 1 mm |
Basic Rated Load Cr (kN) |
14.6 |
Nominal No. |
7204C |
Number |
[NSK name number] 7204CTYNSULP4 |
Dimension r1 (min) (mm) |
0.6 |
