| Race ring shape | Angular Contact Ball Bearing |

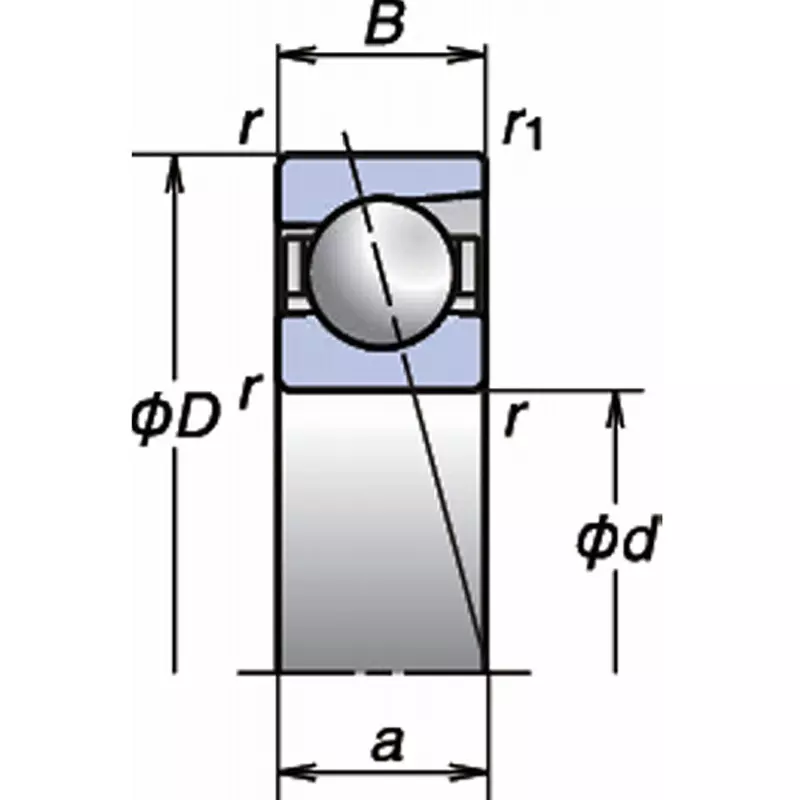

| Outer Diameter D (Φmm) | 47 |

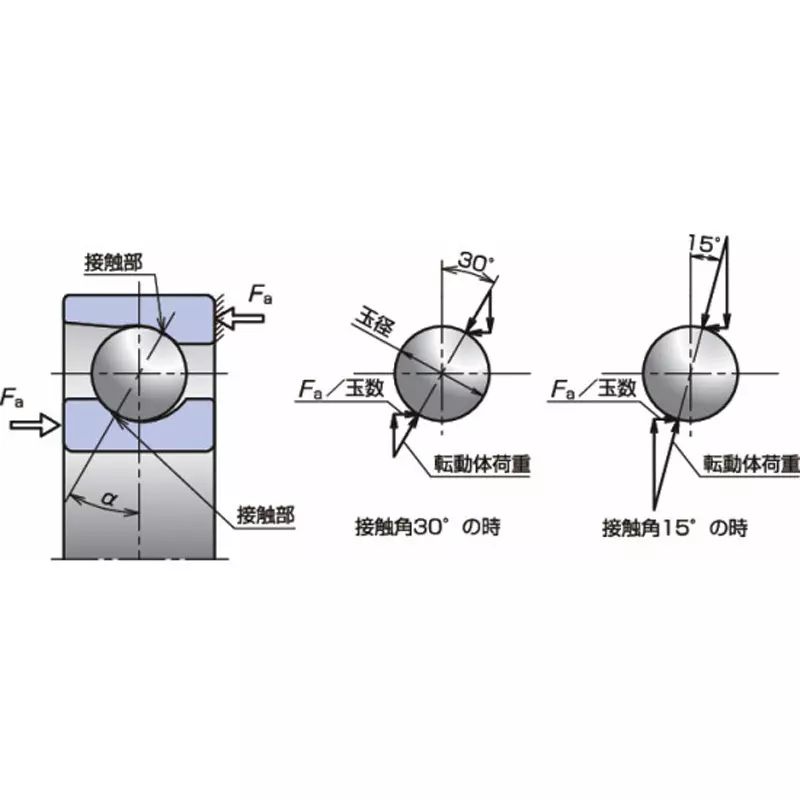

| Contact Angle | 15° |
| Width B (mm) | 14 |
Race ring shape |
Angular Contact Ball Bearing |
Outer Diameter D (Φmm) |
47 |
Contact Angle |
15° |
Width B (mm) |
14 |
Monotaro ID |
12423051 |
Type of Product |
High-Precision Angular Contact Ball Bearing (Combined Type) |
Model No |
7204CTDFLP5 |
Type |
Rear combination |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
20 |
Dimension R |
[Minimum] 1 mm |
Accuracy Class |
ISO level 5 |
Material (Cage) |
Synthetic resin cage |
Nominal No. |
7204C |
Number |
【NSK】7204CTYNDFLP5 |
Dimension r1 (min) (mm) |
0.6 |
Preload |
Light preload |
