| Outer Diameter D (Φmm) | 110 |
| Contact Angle | 40° |
| Width B (mm) | 22 |
| Monotaro ID | 12449249 |
Outer Diameter D (Φmm) |
110 |
Contact Angle |
40° |
Width B (mm) |
22 |
Monotaro ID |
12449249 |
Type of Product |
Matched Angular Contact Ball Bearing |
Model No |
7212BMDB |
Type |
Rear combination |
Working Point Distance a0 (mm) |
93.3 |

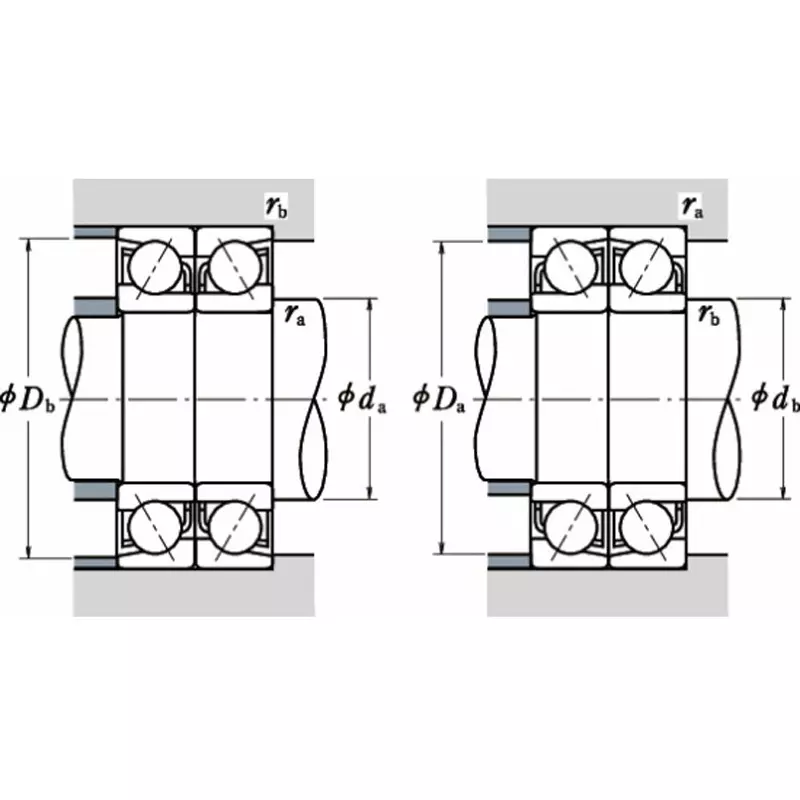

Mounting Dimension, Minimum da (mm) |
69 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
60 |
Dimension r1 (mm) |
Minimum 1 |
Dimension R |
1.5 min mm |
Nominal No. |
7212B |
Number |
【NSK】7212BDB |
