Ships within 25 days
View
View
View
View

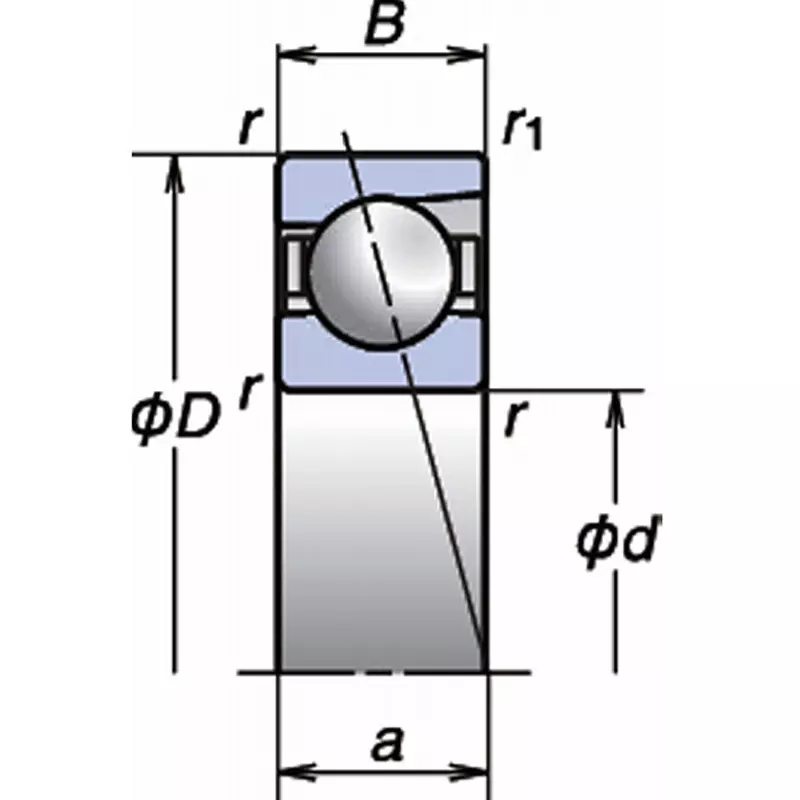

| Race ring shape | Angular Contact Ball Bearing |
| Outer Diameter D (Φmm) | 150 |

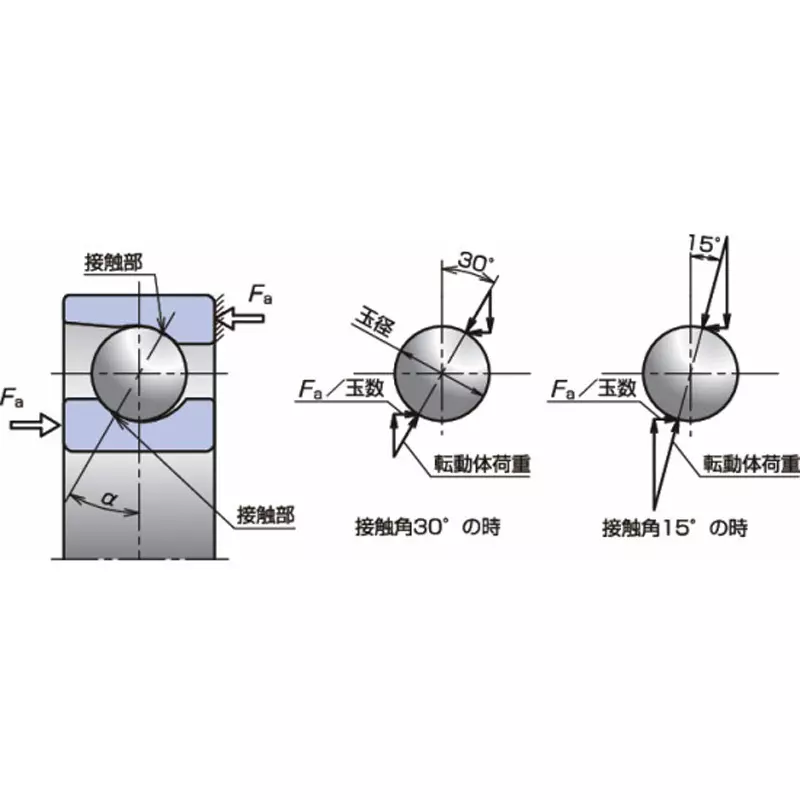

| Contact Angle | 15° |
| Width B (mm) | 28 |
Race ring shape |
Angular Contact Ball Bearing |
Outer Diameter D (Φmm) |
150 |
Contact Angle |
15° |
Width B (mm) |
28 |
Monotaro ID |
12420391 |
Type of Product |
High-Precision Angular Contact Ball Bearing (Universal Combination/Single Type) |
Model No |
7217CTSULP4 |
Type |
Universal combination (single unit) |
Working Point a (mm) |
29.7 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
85 |
Basic Rated Load Cor (kN) |
90.5 |
Dimension R |
[Minimum] 2 mm |
Basic Rated Load Cr (kN) |
107 |
Nominal No. |
7217C |
Number |
【NSK】7217CTYNSULP4 |
Dimension r1 (min) (mm) |
1 |
