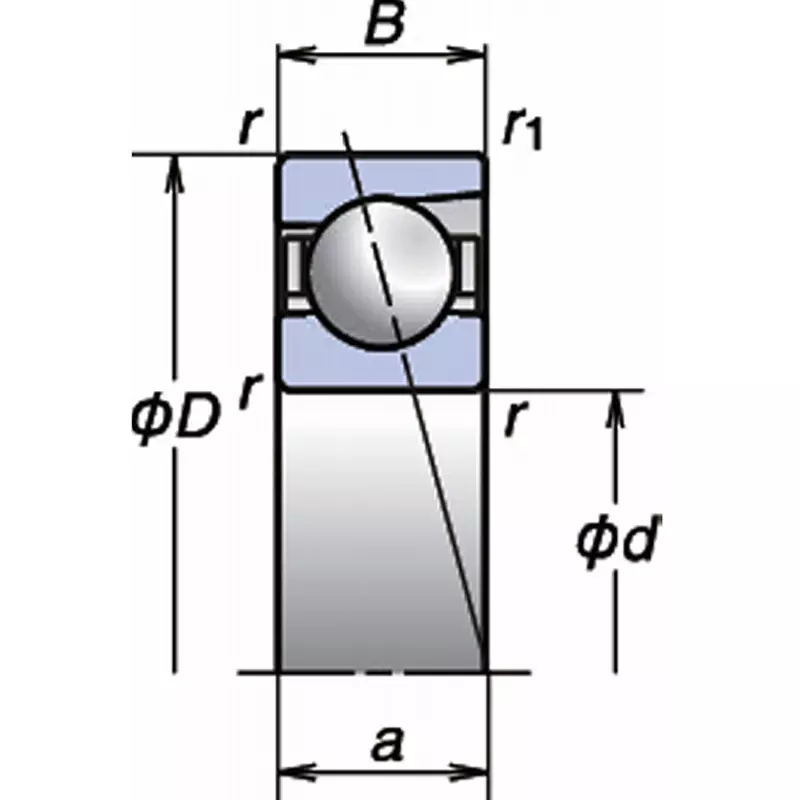

| Race ring shape | Angular Contact Ball Bearing |
| Outer Diameter D (Φmm) | 90 |
| Contact Angle | 25° |
| Width B (mm) | 13 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Race ring shape |
Angular Contact Ball Bearing |
Outer Diameter D (Φmm) |
90 |
Contact Angle |
25° |
Width B (mm) |
13 |
Monotaro ID |
12420470 |
Type of Product |
High-Precision Angular Contact Ball Bearing (Universal Combination/Single Type) |
Model No |
7913A5TSULP4 |
Type |
Universal combination (single unit) |
Working Point a (mm) |
24.6 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
65 |
Basic Rated Load Cor (kN) |
19.399999999999999 |
Dimension R |
[Minimum] 1 mm |
Basic Rated Load Cr (kN) |
19.100000000000001 |
Nominal No. |
7913A5 |
Number |
【NSK】7913A5TYNSULP4 |
Dimension r1 (min) (mm) |
0.6 |
