| Outer Diameter D (Φmm) | 32 |
| Contact Angle | 30° |
| Width B (mm) | 9 |
| Monotaro ID | 12447036 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Outer Diameter D (Φmm) |
32 |
Contact Angle |
30° |
Width B (mm) |
9 |
Monotaro ID |
12447036 |
Type of Product |

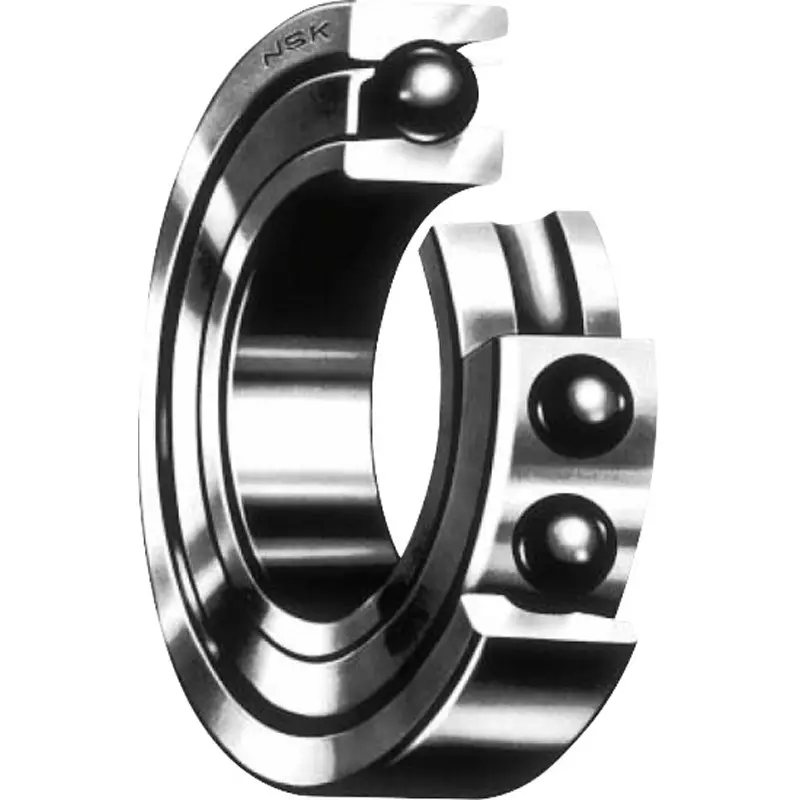

Matched Angular Contact Ball Bearing |
Model No |
7002AMDF |
Type |
Front combination |
Working Point Distance a0 (mm) |
4.5999999999999996 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NSK Ltd. |
Inner Diameter (mm) |
15 |
Dimension r1 (mm) |
0.15 min |
Dimension R |
0.3 min mm |
Nominal No. |
7002A |
Number |
【NSK】7002ADF |
Mounting Dimension, Minimum Da (Φmm) |
29.5 |
